Yamaha TRBX505 5-String Premium Electric Bass – Brick Burst (TRBX505 BRB)
The Yamaha TRBX505 delivers a powerful blend of tone, versatility, and comfort for the modern bassist. As the 5-string edition of the TRBX500 Series, it features a sculpted solid mahogany body and a 5-piece maple/mahogany neck that offers superb sustain and clarity. With dual YGD-designed H5 Alnico humbuckers and active/passive electronics, this bass provides a wide tonal palette—perfect for any style or stage. Finished in a sleek Brick Burst satin polyurethane, the TRBX505 looks as bold as it sounds.

Features

• Sculpted, solid mahogany body
• 5-piece maple/mahogany neck with rosewood fingerboard

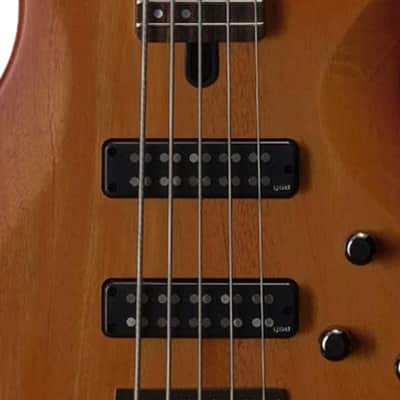

• Dual YGD-designed H5 Alnico V humbuckers
• Active electronics with passive switch for flexible tonal control
• 3-band EQ with master volume and pickup balancer
• Satin polyurethane finish in Brick Burst

Specifications

General
- Construction: Bolt-on
- Scale Length: 34" (863.6 mm)

Body
- Body Materials: Mahogany
- Body Finish: Satin Polyurethane

Neck
- Neck Materials: Maple/Mahogany 5-Piece
- Neck Finish: Satin Polyurethane
- Fingerboard Materials: Rosewood
- Fingerboard Radius: 23-5/8" (600 mm)
- Fret Wire: Medium
- Number of Frets: 24
- Nut Materials: Urea
- Width @ 0 Fret / 12th Fret: 43 / 63.4 mm
- Thickness @ 1st Fret / 12th Fret: 20.5 / 22.5 mm

Electronics
- Neck Pickup: Double Coil / Alnico V
- Bridge Pickup: Double Coil / Alnico V
- Controls: Master Volume, Pickup Balancer, 3-Band EQ (Bass, Middle, Treble), Active/Passive Switch

Hardware
- Bridge: Die-cast
- String Spacing: 18 mm
- Tuning Machines: Covered / Die-cast

Others
- String Gauge: D'Addario EXL170-5 / 0.045–0.130 (5 strings)
