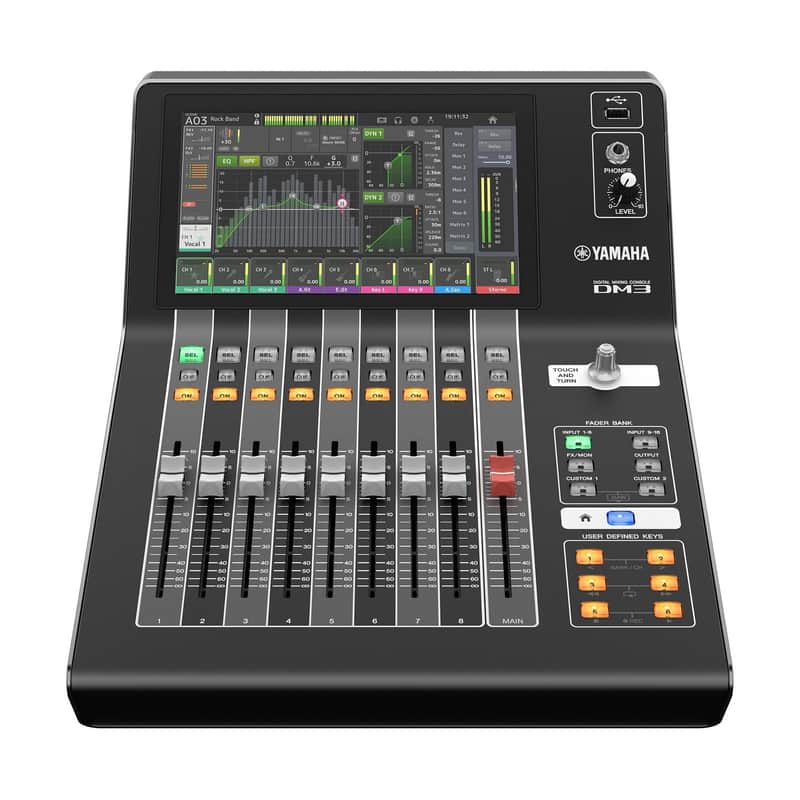

The portable DM3 Standard compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The DM3 Standard offers superb sound quality, fast and easy setup and operation, and professional-level features.\n\nTransporting, unloading, and setting up a sound reinforcement system at a venue can be one of the most laborious tasks a sound engineer undertakes. Not so with the DM3 Series which requires less space and time for configuration and physical setup thanks to flexible patching along with Quick Pro Presets, Editor and StageMix software, and Dante compatibility (DM3 model only), minimizing system setup and configuration time considerably. Combining all this with 6 mix + 2 matrix + 2 effects processors, the DM3 Series are powerful, compact, sturdy consoles that you can take anywhere.\n\nLightweight construction for supreme portability\nThanks to precise structural design and material selection, the DM3 Series combines a light weight of only 6.5 kg with a robust housing that can stand up to the rigors of touring.\n\nThe most compact Dante-compatible console\nYamaha’s most compact Dante-compatible mixer, the DM3 delivers high-quality 96kHz sound using 16 analog inputs and eight outputs with low latency, and matches perfectly with the Tio1608-D I/O Rack for simpler, faster system setup.\n\n*There are two models in the DM3 Series, the Dante equipped DM3 and the DM3 Standard, which does not feature Dante.\n\nEffects to enhance the creativity of sound engineers\nThe DM3 Series comes equipped with two high-quality multi-effects processors featuring eighteen types of high-grade effects including the REV HD and REV R3- the first of its kind in Yamaha mixers- offer sound engineers the freedom to craft a sound that accurately reflects their own sonic sensibilities.\n\nQuickPro Presets for fast setup with professional sound\nThe Yamaha R&D team has worked with well-respected engineers and major manufacturers such as Audio-Technica, FitEar, Sennheiser, Shure, Ultimate Ears and Westone Laboratories to develop a selection of optimized QuickPro Presets for a wide variety of microphones and output equipment. With these practical presets even the novice engineer can get very close to the ideal sound, while experienced engineers will appreciate the significant time savings they offer. We prepared more than 200 presets for input channels, covering everything from vocals to drum sets all precisely tuned using a wide range of actual microphones and instruments. For output channels we developed presets for a variety of speaker systems and in-ear monitors such as Ultimate Ears with several variations to match different environments and room sizes. All of these can be used as-is when time is tight, but they are also great starting points for manual fine tuning. Setups created from the presets or from scratch can also be saved as additional presets.\n\nScene Presets for your applications\nScene Presets are available for a variety of applications that use the DM3 Series for mixing, making setup quick and easy.\n\nReal world engineers in our R&D group created these presets to increase speed of setup and allow more time for minor adjustments and rehearsal.\n\nA wealth of applications to support any venue\nA wide range of applications help users respond as the situation demands, including DM3 Editor to complete settings in advance well before the performance, DM3 StageMix to remotely control the DM3 Series from onstage, and MonitorMix, which allows each performer to adjust their own monitor.\n\nDAW Remote streamlines music production\nDM3 Console team well with a digital audio workstation (DAW). DAW operations such as volume adjustment, play, and stop can be performed using the console’s faders and buttons as physical controllers for smooth operation while arranging. The DM3 supports a variety of DAW software suites, and comes bundled with Cubase AI-a stripped-down but powerful music production software platform. Switching to DAW Remote Mode is a simple one-step operation that can be performed by pressing USER DEFINED KEYS 1 and 2 together.\n\nAccurate Control of Monitor Levels\nDM3 Series Consoles allow monitor levels to be controlled with faders. Access is simple and easy, for smoother, more accurate checking of mix balances. You can also use the customer fader function to assign monitor level control for smoother, more accurate mixes, or use User Defined Keys to adjust the volume separately by switching the source.\n\nMultiple ways to record\nBoth DM3 models support multitrack recording via USB to Host, while simple 2-track recording is possible using a USB memory stick and the USB connector on the front of both consoles. The Dante-equipped DM3 console also adds multitrack recording capability using the Dante Virtual Soundcard. Put simply, the DM3 Series offers a range of recording options that give users the flexibility to meet the demands of a variety of environments and applications.\n\n*Dante Virtual Soundcard is not included.\n\nProviding optimal settings for the user\nThe DM3 Series is designed to be operated by a wide range of people, from professional engineers to those who rarely use a console, and its appearance varies from user to user. For example, logging in as Guest simplifies use by limiting the operations available.\n\nKey Features\n

\n
• 8 + 1 fader configuration
\n
• 9-inch multi-touch screen
\n
• Input mixing channels: 16 mono + 1 stereo + 2 FX return
\n
• Buses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
\n
• Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
\n
• USB: 18 inputs, and 18 outputs
\n
• 18 Effects, and GEQ on Mix 1-6 and Stereo channels
\n
• Sampling rate: 48kHz/96kHz
\n
• Intuitive user interface optimized for multi-touch screen operation.
\n
• “QuickPro Presets†provide instant access to pro sound setups.
\n
• DAW Remote for smooth DAW operation with physical controllers
\n
• Seamlessly integrated remote control and offline editing via DM3 Editor.
\n
• Wireless remote control of a DM3 Standard is possible via an iPad app.
\n
• Individual wireless Mix/Matrix mixing can be simultaneously performed by up to 10 different iPad, iPhone, iPod touch, or Android devices.
\n
• Direct 2-track recording to standard USB flash drives, or serious multitrack recording to a DAW via USB
\n

\nTechnical Specifications\n\nMixing Capacity\nInput Mixing Channels\n16 mono, 1 stereo, 2 FX return\nMix Buses\n6\nMatrices\n2 (Input to Matrix supported)\nStereo Buses\n1\nFX Buses\n2\nCue Buses\n1\nLocal Connectors\nAnalog Input\n16 mic/line (12 XLR + 4 XLR/TRS Phones Combo)\nAnalog Output\n8 (XLR)\nDante I/O\nNo\nExpansion Slot\nNo\nWord Clock I/O\nNo\nMIDI I/O\nNo (MIDI protocol supported)\nGPI\nNo\nUSB\n1 (File Save/Load, 2 Track Rec/Play)\nUSB to Host\n1 (18 in/18 out audio interface, MIDI)\nEthernet\nYes\nFoot Switch\nNo\nPhones\n1\nDC power IN\n1 (XLR 4pin)\nScene Memory\nNumber of Scenes 200\nRecall Safe\nYes\nFocus Recall\nNo\nFade Time\nYes (0s ~ 60s)\nPreview\nNo\nSelective Load / Save\nNo\nGlobal Paste\nNo\nTactile Control Keys\nNo (on-screen)\nInput Channel Functions\nGain Compensation\nNo\nDigital Gain\nYes (-24dB~ +24dB)\nHPF\n20Hz ~ 600Hz\nPEQ\n4 Band Full PEQ (RTA overlay support)\nDynamics 1\nGate / Ducking\nDynamics 2\nComp\nInput Delay\nYes (0ms ~ 1000ms)\nPan\nCenter Nominal\nDCA Group\nNo\nMUTE Group\n6\nNumber of Inserts\n0\nDirect Out\nNo\nQuick Pro Preset\nYes\nOutput Channel Functions\nPEQ\n4 Band Full PEQ (RTA overlay support)\nGEQ\nYes\nDynamics 2\nCompressor\nOutput Channel Delay\nYes (0ms ~ 1000ms)\nMUTE Group\n6\nNumber of Inserts\n0 (Insert Effect on FX1/2)\nQuick Pro Preset\nYes\nFX\nNumber of FXs\n2\nNumber of FX Programs\n18\nGEQ\nAvailable Channels\nStereo, MIX1-6\nRecording\nUSB Memory Recording\nYes\nMultitrack Recording\nYes (via USB)\nBroadcast Functions\n5.1 Surround Panning\nNo\nSurround Monitor\nNo\nMix Minus\nNo\nL-Mono / R-Mono / LR-Mono\nNo\nMonitor\nSolo Mode\nNo\nOscillator\nSine Wave / Pink Noise / Burst Noise\nOther Functions\nPort to Port\nNo\nGPI\nNo\nMIDI\nYes (USB MIDI)\nOSC Server\nYes\nWireless Mic Monitoring\nNo\nDAW Remote\nYes\nRTA\nYes\nOutput Port Delay\nNo\nCascade\nNo\nUser Level\nYes\nHelp File\nNo\nUser Interface\nDisplay\n9-inch multi-touch screen\nFaders\n8 + 1\nChannel Encoder\nNo\nChannel Name / Color Display\nYes (On screen)\nCustom Fader Banks\nYes\nUser Defined Keys\n6\nUser Defined Knobs\nNo\nTouch and Turn Knob\nYes\nMonitor Level Knob\nNo\niPad Stay\nNo\nRack-mounting\nYes\nSoftware\nEditor\nDM3 Editor\nStageMix\nDM3 StageMix\nMonitorMix\nYes\nProVisionaire Control/Touch\nYes\nNuendo Live: Control integration\nNo\nConsole File Converter\nNo\nSampling rate\n48kHz/96kHz\nDimensions (W x H x D)\n320 mm x 455 mm x 140 mm\nNet weight\n14.3lbs
