\n\n Class D Amplifier Wifi Control Duraflex Powered Loudspeaker \n

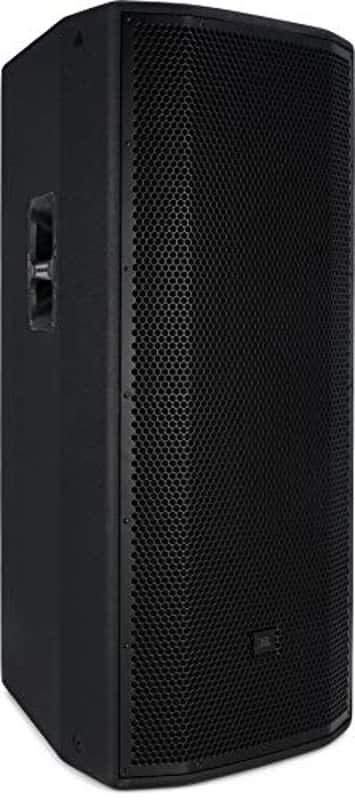

The JBL PRX825W is a full-range speaker designed for main system applications. Featuring a dual 15, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX825W delivers incredible volume in a lightweight and compact form factor.

\n

Key Features

\n\n

\n
• Built-in Wi-Fi for wireless control of your system from anywhere in the venue
\n
• Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
\n
• Class-leading 1500-watt amplifier delivers ample power to fill your venue
\n
• JBL Differential Drive transducers for higher SPL in a lightweight design
\n
• Redesigned Crown input technology, including XLR, 1/4 and RCA inputs plus XLR loop-through
\n
• Intelligent variable-speed fan activates only when needed to reduce noise
\n
• Updated tuning delivers flat frequency response and smooth off-axis behavior
\n
• Durable wooden cabinets, tour-proven DuraFlex finish and dent-resistant 16-gauge grilles
\n
• Universal power supply for worldwide compatibility
\n
• dbx Type IV limiting ensures clear, accurate sound at high volumes
\n
• Brutal testing regimenincluding the famous JBL 100-hour power testensures reliable performance
\n

\n

Technical Specifications

\n

System Type:\nSelf Powered Dual 15, two-way, bass-reflex\nMaximum SPL Output:\n138 dB peak\nFrequency Range (-10 dB):\nNormal: 46.2Hz-16.5 kHz\nBoost: 46 Hz - 18.3 kHz\nFrequency Response (±3 dB):\nNormal: 52.6 Hz -17 kHz\nBoost:51.8Hz- 17.5k\nInput Connectors:\n2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input\nInput Impedance:\n20K Ohms (balanced), 10K Ohms (unbalanced)\nSignal Indicators:\nLimit: Yellow LED indicates peak output has been reached and dsp limiter is acting\nSignal: Green LED indicates signal present\nPower: Blue indicates system has power and ready to pass audio.\nEQ:\nUser selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application\nDynamic Control (Input):\ndbx Type IV limiter circuit\nCrossover Frequency:\n2.4 kHz\nDesign:\nHighly efficient Class-D amplifier\nPower Rating:\n1500W (750W x 2)\nAC Power Input:\n100V - 240V ~ 50/60 Hz\nLF Driver:\n2 x JBL 275 (15 in) woofer\nHF Driver:\n1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver\nCoverage Pattern:\n90° x 50° nominal\nDirectivity Index (DI):\n10.4 dB\nDirectivity Factor (Q):\n11\nEnclosure:\nTrapezoidal, 18 mm, plywood\nSuspension / Mounting:\n8 x M10 Suspension Points, 1 x M10 pull back point\nTransport:\n2x integrated handles with injection molded backing cup\nFinish:\nObsidian DuraFlex finish\nGrille:\nPowder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.\nDimensions (H x W x D):\n1061 mm x 446 mm x 539 mm (41.8 in x 17.5 in x 21.2 in)\nNet Weight:\n37.19 kg (82.0 lb)\nGross Weight:\n43.0 kg (95.0 lb)
