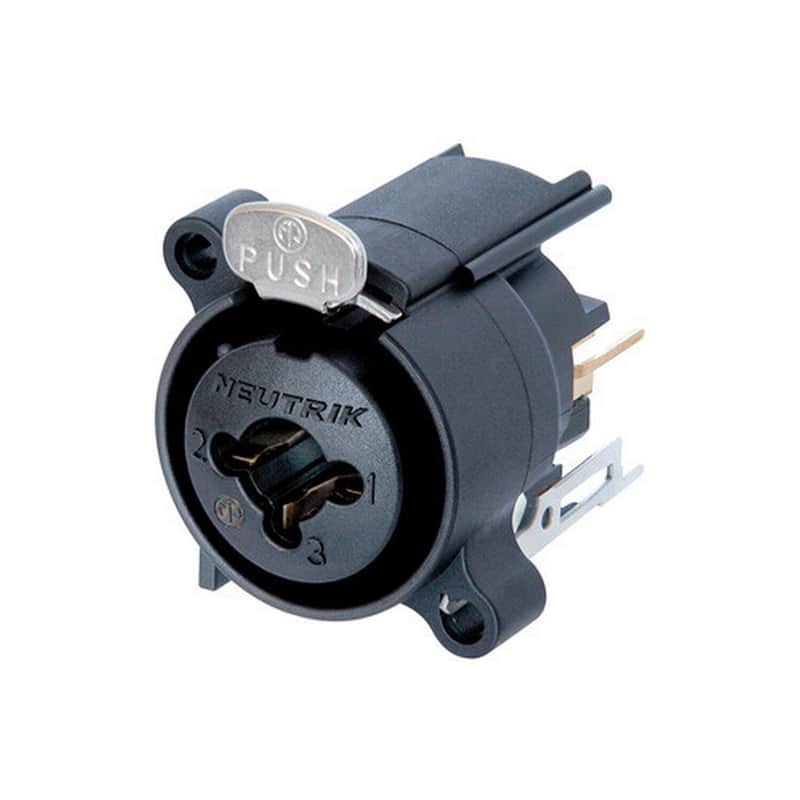

Neutrik NCJ6FA-V 3-Pole XLR Female Receptacle with 1/4-Inch Jack

3 pole XLR female receptacle with 1/4†stereo jack, vertical PCB mount. XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4†jack in the smallest available XLR housing.\n\nKey Features\n

\n
• Combined 3 pole XLR receptacle and 1/4†TRS phone jack for balanced mic and line or instrument inputs in one XLR housing
\n
• Dramatic space saving - 15% over the predecessor Combo
\n
• Two connectors in one housing - substantial cost, material and labor saving
\n
• Very low conductor capacitance - ideal for digital audio
\n
• Front panel cut-out compatible with Neutrik XLR A Series
\n
• Branded with unique hologram - guarantees genuine and authentic Neutrik product
\n

\nTechnical Specifications\n\nElectrical\nContact resistance\n< 10 mO (XLR)\nContact resistance\n< 10 mO (jack)\nDielectric strength\n1.5 kVdc\nInsulation resistance\n> 10 GO (initial)\nRated current per contact\n3 A (XLR)\nRated current per contact\n3 A (Jack)\nRated voltage\n< 50 V\nMechanical\nInsertion force\n= 20 N\nWithdrawal force\n= 20 N\nLifetime\n> 1000 mating cycles\nPanel thickness\nmax. 3 mm (0.12â€)\nWiresize\nWiring\nvertical PCB mount\nLocking device\nLatch lock\nMounting direction\nRear mounting\nMounting screw\nA-screw\nMaterial\nContact plating\ngal 0.2 µm AuCo (XLR), gal 0.2 µm Ag (Jack RS), Palladium, 0.1 µm Pd over 3 µm NiP\nContacts\nBronze (CuSn6)\nInsert\nPolyamide (PA66)\nLocking element\nSteel Ck67\nEnvironmental\nFlammability\nUL 94 V-0\nSolderability\nComplies with IEC 68-2-20\nTemperature range\n-30 Degrees C to +80 Degrees C
