\n\n High Quality Dual Channel Passive Direct Box \n

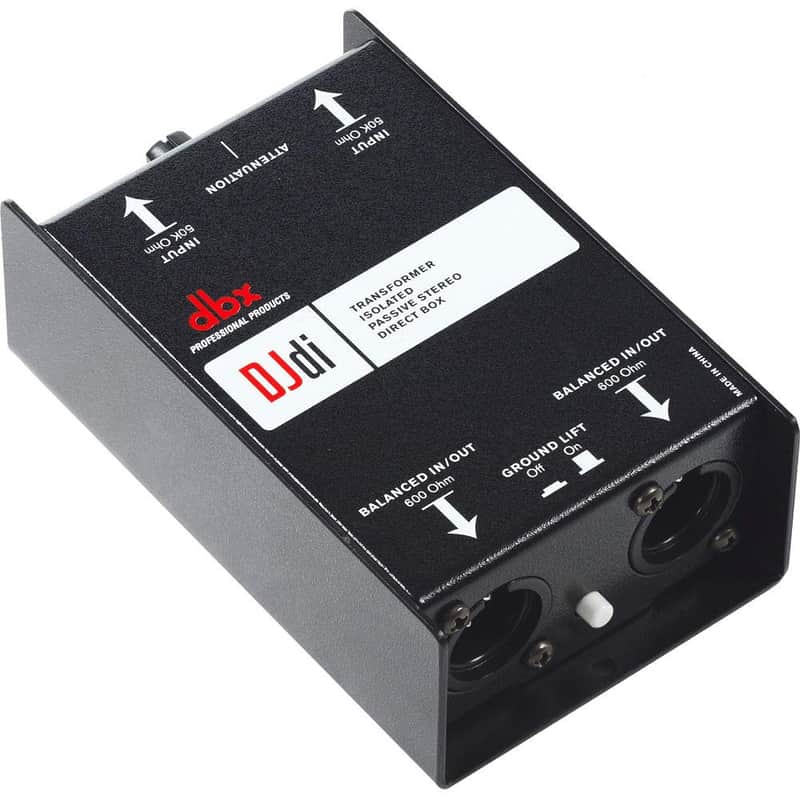

The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications. Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncolored operation with no power required.

\n

Key Features

\n\n

\n
• Dual Channel
\n
• (2) 1/4" 50k Ohm TS Inputs
\n
• (2) XLR Transformer-Isolated 600 Ohm Input/Outputs
\n
• Passive Circuit Design
\n
• Continuously Variable Input Attenuator
\n
• Ground Lift Switch
\n

\n

Technical Specifications

\n

Circuit: Passive\nInputs: 2\nInput Connectors: 1/4" TS (Tip Hot, Sleeve Ground)\nInput Type: Unbalanced, RF Filtered\nInput Impedance: 50 kOhm\nOutputs: 2\nOutput Connectors: Male XLR, Balanced, Pin 2 hot\nOutput Impedance: 600 Ohms\nNoise Level: -104dBu (22Hz -22kHz, Input Shorted)\nTHD+N (10Hz-22kHz): 0.23% typical @ +4dBu @ 1kHz\nInsertion Loss: 21dB typical
