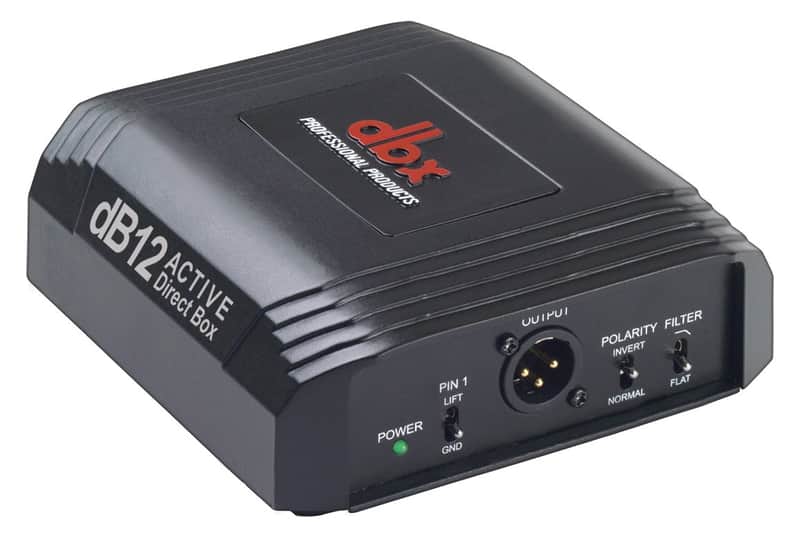

At dbx, when we do something, we do it right. So when we decided to create our new direct injection boxes, we didn’t settle for the same old tired approach to direct box design. With our dbx name on the line, how could we? One look at our new dB10 Passive and dB12 Active direct boxes will tell you that these are clearly different. With their bullet-proof construction, and extraordinary audio performance to rival their looks, finally there’s a direct box worthy of the dbx name.

Key Features

• Premium Performance
• Rugged Design
• Stackable Chassis with Durable Rubber Foot
• Gold-plated Neutrik® XLR Connector
• Premium Chrome Toggle Switches
• Hi-Z 1/4" Input Jack
• Parallel 1/4" Thru Jack
• Transformer Isolated
• Premium Shielded Custom dbx Transformer
• Balanced XLR Lo-Z Output
• 3-Way 0/20/40 dB Pad Switch
• Flat/High-Cut Filter Switch
• Output Polarity Invert Switch
• Ground Lift Switch
• 4 Year Warranty!

Input
1 instrument/line/speaker level
Input Connectors
1/4" jack
Input Type
Unbalanced, RF filtered
Insert Impedance
150k Ohm typical
Max Input
+20dBu (0dB pad); +40dBu (20dB pad); +60dBu (40dB pad)
Output
(Thru) 1 parallel from input jack, 1/4" Unbalanced, RF filtered
Output Connectors
XLR male balanced
Output Impedance
150k Ohm typical
Max Output
0dBu
Transformer
Custom dbx mu-metal-shielded
Frequency Response
20Hz to 20kHz, +/-2.5dB
Noise
<-105dB unweighted, 22kHz BW
THD
<0.01%, 20Hz to 20kHz BW; <0.005%, 1kHz
Dimensions
5.82" L X 5.44" W X 2.20" H (148 x 138 x 56mm)
Unit Weight
1.4 lbs / 0.65 kg
