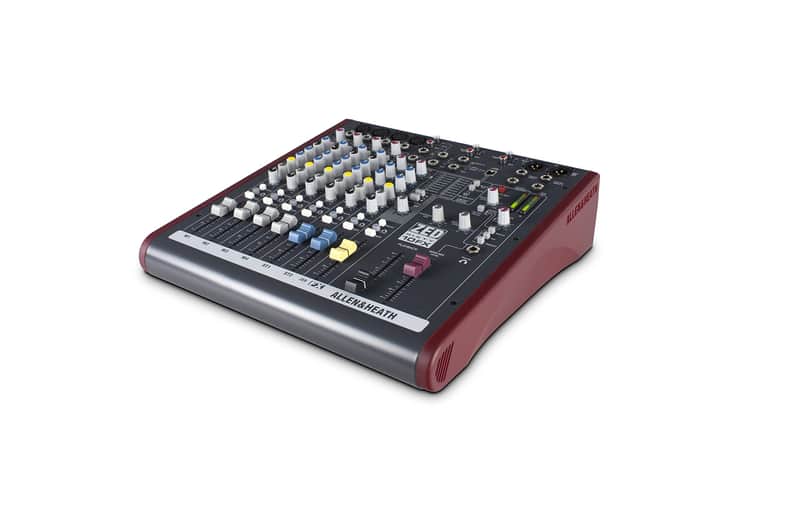

Live or in the studio, ZED60-10FX is an ultra-portable mixer for solo artists and small bands.

Based on our top selling ZED-10FX, the new ZED60-10FX adds premium quality 60mm faders for that intuitive, tactile mixing experience.

This mixer is a guitarists dream. Two of the 4 mono channels have high impedance jack inputs that can take a normal line level or a low level input from a guitar pickup, so guitars can be plugged straight into the mixer without the need for DI boxes. These inputs have been crafted to recreate the sound of a classic tube preamp in a combo or head amp for incredible definition and warmth. Two stereo inputs are provided for MP3/CD players or keyboards.

ZED60-10FX comes with configurable USB audio in/out, making it easy to capture a stereo recording at the gig or in the studio. The mixer is equipped with professional XLR main stereo outputs, a flexible monitoring section with headphone and speaker feed outputs, and 16 stunning FX.

Most important of all, ZED60-10FX lives up to the audio and build quality standards that have made Allen & Heath one of the most trusted names in professional audio for more than 40 years.

Key Features

\n
• 4 mic/line inputs, 2 with Class A FET high impedance
\n
• 60mm professional quality faders
\n
• Responsive 3-band, swept mid EQ with MusiQ
\n
• Configurable USB stereo audio in/out
\n
• 1 pre-fade Aux send
\n
• 1 FX send
\n
• 2 stereo inputs
\n
• Separate 2-track record outputs
\n
• 16 Internal Effects
\n
• XLR main stereo outputs with inserts
\n
• Comprehensive monitoring
\n
• 48V microphone phantom power
\n
• DI level switching with Gain Boost
\n
• Neutrik XLRs and 1/4 inch jacks
\n

Technical Specifications

Operating Levels\nInput\nMono channel (XLR) Input:\n-10 to -60dBu for nominal (+11dBu in max)\nMono channel Line Input (Jack socket):\n+10 to -40dBu (+31dBu maximum)\nStereo Input (Jack or phono sockets):\n0dBu nominal (control = Off to +15dB)\nFrequency Response\nMic in to Mix L/R Out, 30dB gain:\n+0.5/-1dB 10Hz to 30kHz.\nLine in to Mix L/R out 0dB gain:\n+0.5/-1dB 10Hz to 25kHz\nStereo in to Mix L/R out:\n+0.5/-1dB 10Hz to 30kHz\nTHD+n\nMic in to Mix L/R Out, 10dB gain 1kHz +10dBu out:\n0.002%\nMic in to Mix L/R Out, 30dB gain 1kHz:\n0.01%\nLine in to Mix L/R out 0dB gain 0dBu 1kHz:\n0.003%\nStereo in to Mix L/R out 0dB gain +10dBu 1kHz:\n0.002%\nGtr Input to Mix L/R Out, 0dBu, Boost OUT:\n0.015%\nGtr Input to Mix L/R Out, 0dBu, Boost IN:\n2% Second Harmonic\nHeadroom\nAnalogue Headroom from nominal (0Vu):\n21dB\nUSB in & out headroom from nominal (0Vu):\n14dB\nNoise\nMic Pre EIN @ max gain 150R input Z 22-22kHz:\n-127dBu\nMix L/R out, L/R faders = 0, Levels min, 22-22kHz:\n-96dBu (10FX)\nMix L/R out, L/R faders = 0, Levels min, 22-22kHz:\n-93dBu (14FX)\nUSB Audio CODEC (Coder/Decoder)\nUSB Audio In/Out:\nUSB 1.1 compliant 16bit.\nSample Rate:\n32, 44.1, or 48kHz\nWidth:\n13.2 Inches\nHeight:\n3.7 Inches\nLength:\n13.6 Inches\nUnpacked Weight:\n8.4 lb\nPacked Weight:\n9.7 lb
