\n\n For Allen & Heath dLive, iLive, GLD and Qu Series Digital Mixers \n

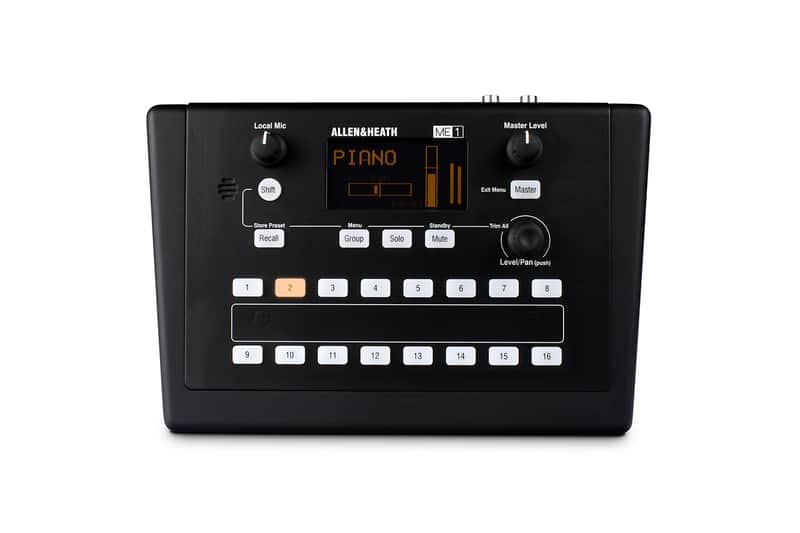

The ME-1 Personal Mixer puts the musician in control of their own monitor mix. Each performer can be given a tailored setup that works perfectly for them, whether they crave maximum control over the fine details of their mix or just want the minimum of keys to press. Operation is intuitive and elegant, with simple controls, clear visual feedback and custom naming for instant familiarity.\nME-1 is the cornerstone of the ME Personal Mixing System and is ready to use with the Allen & Heath dLive, iLive, GLD and Qu series digital mixers. ME-1 is complemented by the ME-U hub, which opens up the benefits of ME to users of other professional digital mixers via Dante, EtherSound or MADI. ME-1 also has an Aviom compatibility mode for use with Aviom Pro16 systems.

\n

Key Features

\n\n

\n
• Fully customisable
\n
• Intuitive operation
\n
• Compact, smart design
\n
• 40 sources from GLD, Qu, dLive or iLive
\n
• Compatible with MADI, Dante, Waves SG or EtherSound via ME-U hub
\n
• Daisy chain or use standard PoE Ethernet hubs
\n
• 16 assignable keys to suit application
\n

\n

Technical Specifications

\n

Inputs : 40 inputs (Cat5), Stereo Aux, Ambient Mic\nOutputs : 2x Stereo (Line or Headphones), Mono Line Out\nInput Control : Level, Mute, Pan, Solo, Trim All\nMaster Control : Level, Mute, 3-band EQ, Limiter\nGroup Control : Level, Mute, Level/Pan for sources within Group\nGroups : 16, Up to 40 sources assignable\nPresets : 16, Store input Levels, Mutes, Pans, Key assign, Names, Group sources\nConfig : Stores Setup and all Presets\nNames : Channels, Keys, Unit, Presets, Config\nUSB Data Port : Individual Presets or Config transfer, Firmware update\nCat5 Audio and PoE : Link In and Link Out, locking EtherCon connectors\nStereo Out : Stereo 1/4" and 3.5mm Jacks\nHeadphones 300mW+300mW into 100O load\nMax +21dBu\nDimensions : Width x Depth x Height\n225 x 150 x 55mm (8.9" x 5.9" x 2.2")\nWeight (inc phones hook) : 900g (2lbs)
