96 kHz 64-Channel / 42 Buses Digital Mixer XCVI FPGA core with very low latency (0.7ms)

Freely configurable mix bus architecture The user interface combines physical controls with touchscreen controls for the fastest and most intuitive workflow

Two RackExtra FX slots with separate stereo returns 16 DCAs Two 15.6" Full HD displays with capacitive touchscreens with gesture control AMM (Automatic Mic Mixer) for up to 64 channels across 1, 2 or 4 zones

Features

• Fully assignable layout
• 144 fader strips (24 faders, six levels) with optional master section
• SLink port for connection to remote I/O extensions and the ME Personal Mixing System
• 12 analogue XLR inputs
• 12 analogue XLR outputs
• One stereo AES input
• Two AES outputs
• Two I/O ports for 128x128 at 96kHz each - for optional cards incl. Dante, MADI and gigaACE
• User-configurable rotary control
• 24 assignable sofkeys
• Comprehensive metering with multi-point peak detection
• USB stereo recording and playback
• BNC Word Clock
• Very robust all-metal frame
• Dimensions (W x D x H): 917 x 627 x 269 mm
• Weight: 26 kg

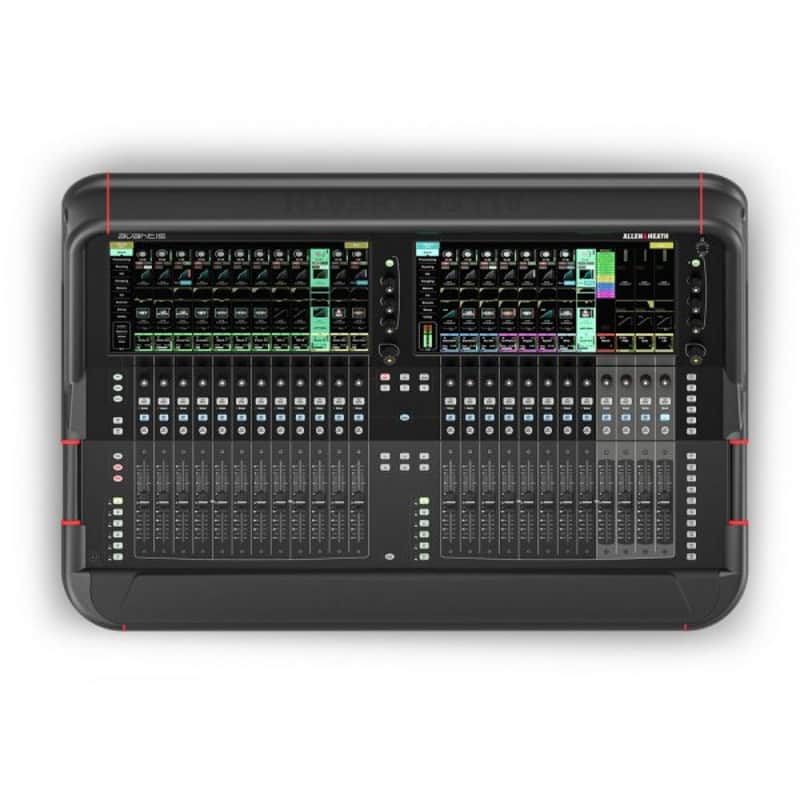

Avantis is a 64 channel / 42 configurable bus mixer platform featuring our 96kHz XCVI FPGA engine with class-leading 0.7ms latency plus add-on processing from our flagship dLive mixing system.

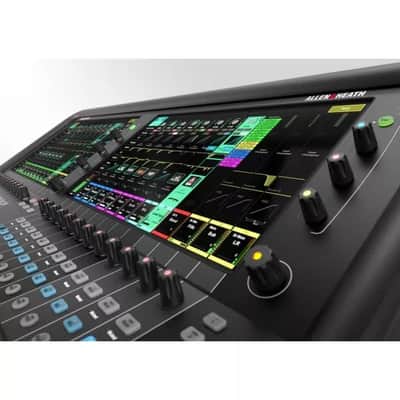

It’s your mixer, so mix your way. With 15.6″ Full HD touchscreens at the heart of the experience, Continuity UI allows you to see and instantly interact with more of what matters, enabling a seamless connection between the physical controls and the screen. The faders react on touch to immediately highlight the active channels for instant visual feedback. The channel rotaries let you work gains or pans, then at the touch of a button, dynamically fold the display to show EQ or compressor parameters across the whole bank. Each screen also features a FastGrab tab on the right-hand side, giving you split-second access to key freely-assignable parameters like aux sends, EQ, compressor and FX on the currently selected or specific channel. The whole system is set up to dynamically surface the information you need at any moment and put control right at your fingertips.

Integrated Tools

Do More. Faster.

From our next-generation 61-band RTA, with 5m, 15m and 60m history views, through to Shure and Sennheiser RF integration, Avantis is designed to let engineers spend more time mixing and less time worrying about the technology.

dPack

Get acclaimed dLive processing. Inside your Avantis.

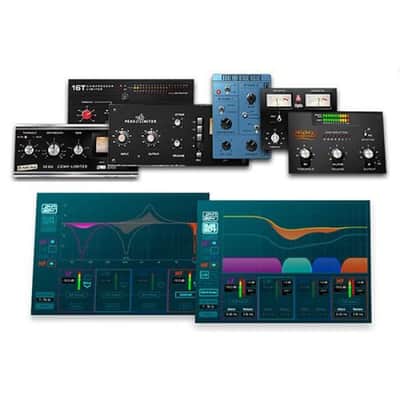

Right out of the box, Avantis is loaded with powerful processing tools that will easily meet the demands of most users and applications. Want more options? Upgrade your console with Avantis dPack to get additional dLive processing including Dyn8 (up to 16 instances), DEEP Compressors, and the Dual Stage Valve Preamp, plus more models as they’re added.
