This Dragon uses a black soft switch that requires less force to depress.
Tubescreamer. Rat. Klon. OCD. Tim. KoT. What do all these beloved drive circuits have in common? They all cut bass before distortion, and cut treble after distortion. This basic recipe is the backbone of many of the dirt pedals you use. Enter the Dragon, a dynamic overdrive designed to give you ultimate power over the pre-gain bass cut (HPF) and post-gain treble cut (LPF). Precisely tighten or fatten up your low end, smooth out the top end or add sparkle. Go from a transparent tone to a focused mid boost to push through a dense band mix, or just use it to light your favorite drive on fire.

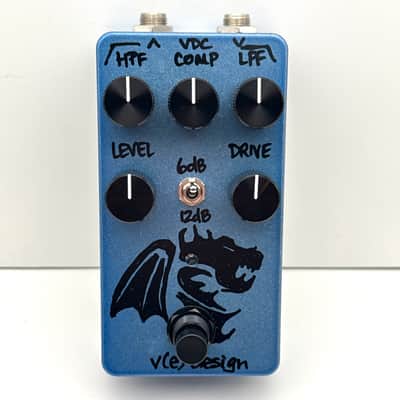

LEVEL - controls the output of the Dragon
DRIVE - sets the gain of the drive circuit
COMP - sets the compression ratio of the drive circuit (clockwise = even harmonics, counterclockwise = odd harmonics)
HPF - varies the frequency cutoff point of the high pass filter(s), from 33 Hz to 2.2 kHz.
LPF - varies the frequency cutoff point of the low pass filter(s), from 330 Hz to 22 kHz
6dB/12dB - toggles between first-order (6dB) and second-order (12dB) filters. The middle position sets the HPF @ 12dB and LPF @ 6dB.
BUFFER/TRUE - this internal switch selects between buffered and true bypass switching.
LED - This internal trimpot affects the brightness of the LED indicator.
DUALMODE - Wait 3 seconds and press tap + tap + hold for 3 seconds with the footswitch to activate or deactivate momentary mode.
POWER - Accepts the industry-standard 2.1mm pin, 5.5mm barrel, negative-tip power supply. Accepts 9V up to 18V.
FREE SHIPPING via USPS Priority inside the USA, $18 to Canada & $25 everywhere else with USPS 1st Class Mail (insured).
The buyer can return the pedal in the first 14 days for a full refund. All VFE Pedals include a 1-year warranty on parts & labor.
