Description

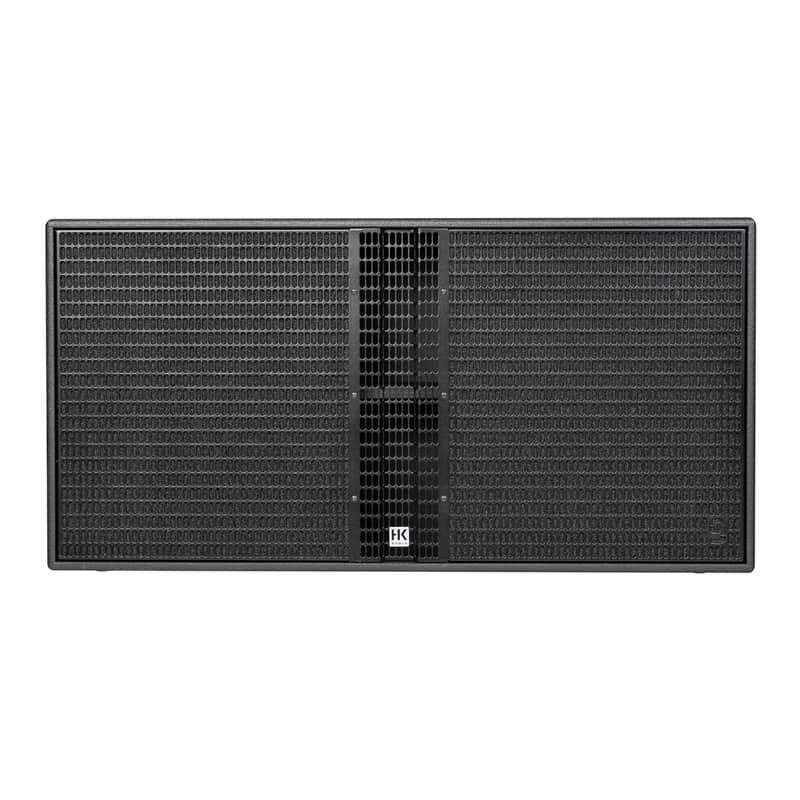

The LINEAR 9 118 Sub BA is a powerful 18" dual vented bandpass subwoofer. The generous size of the cabinet allows for an exceptionally high sound pressure level with a low cut-off frequency at the same time. This makes this subwoofer not only a perfect partner for powerful full-range speakers, but also an ideal sub low extension for the direct-radiating LINEAR 9 118 Sub A. Thanks to the integrated presets, cardioid setups can be implemented quickly and easily. The LINEAR 9 118 Sub BA is compatible with all LINEAR 9 Mid/High models. Max. SPL @ 10% THD: 134 dB half space (40 Hz – 110 Hz averaged) Max. SPL peak @ 10 % THD: 136 dB half space Frequency response +/-3 dB: 38 Hz – X-over
Specifications Frequency response -10 dB: 31 Hz – X-over Power amp output (RMS): 1100 W Amp type: Class D LF driver: 1x 18", 4" voice coil Low-/mid speaker: N/A HF driver: N/A Horn directivity: N/A Active crossover frequency: N/A Maximum input level: +20 dBu Analog inputs: 2x XLR combo balanced Analog thru: 2x XLR balanced DSP Out: balanced Network port: Ethercon RJ45, 1x In, 1x Thru Filter presets: Front, Cardioid 1:1, Cardioid 2:1, Remote Remote software: DSP CONTROL (Windows, macOS) DSP functions: Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute Sample rate: 96 kHz System latency: Less than 2.6 ms Mains connector: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V Power consuption: 1.9 A / 100–240 V nominal according to EN 62368-1 Clustering angle: N/A Angles up (Monitor angle): N/A Pole mount: 2x M20 Rigging points: N/A Carrying handles: 8x MultiGrip Housing: Birch multiplex Finish: PU coating black Front grille: 2 mm metal grille backed with black acoustic foam Dimensions (WxHxD): 111 x 56 x 69 cm 43-9/32 x 22-3/64 x 27-11/64" Weight: 63.5 kg / 139.9 lbs
