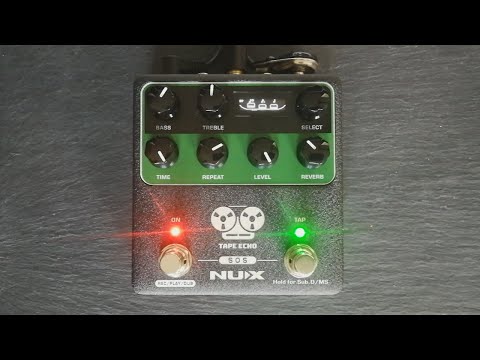

NUX - NDD-7 Tape Echo (Emulator) - Delay Effects Pedal

NUX TAPE ECHO is a tribute to the Japanese-made Space Echo from 1974. Analogue tape echo devices record incoming audio to a loop of magnetic tape, then replays the continuous loop over the playback head before it is erased again by new incoming audio.

The Space Echo units used the standard 1/4" tape designed to spool onto tape-reels, however, this device used no reels of any kind; the tape is transported via a capstan drive.

The tape loop is contained in a loose, constantly moving jumble in the tape chamber (also known as the tape tank) under a plastic panel which protects the tape and keeps it from getting tangled.

The design resulted in lower levels of noise, wow, and flutter, and cut down on tape wear. NUX TAPE ECHO uses Core-Image technology to capture these characteristics including BASS, TREBLE, REPEAT RATE (TIME), INTENSITY (REPEAT), ECHO VOLUME (LEVEL), REVERB VOLUME (REVERB), and physical features like WOW, FLUTTER, SATURATION. Even self-regenerate, self-oscillation using a dual foot switch stomp-box enclosure!

Features:

• NUX - NDD-7 Tape Echo (Emulator) - Delay Effects Pedal
• Black/Green Finish
• Up To 1600ms Stereo Delay Time By Tap Tempo
• 7 Repro-Tape Heads Combinations & Reverb Only
• Core-Image Technology Brings Natural Tape Echo w/Parallel Spring Reverb
• Self-Feedback w/On Switch
• 40 Second Stereo Phrase Loop w/OLED Status Display
• Optional Delay Time Display (MS/BPM)
• MIDI In/Out
• Sub-Division Time Signature w/Tap Tempo Foot Switch
• 48Hz Sampling Rate
• A/D Converter 32 Bits
• Signal Processing 32 Bits
• Frequency Response 20Hz - 20kHz +-1db
• 5M Ohm Impedance
• Max Input Level: 1.5Vrms
• 100 Ohm Output Impedance
• Max Output Level: 1.5Vrms
• System Latency: 1ms
• 103dBu/105dBu Dynamic Range
• Power: 9VDC Negative Tip (Power Sold Separately)
• Approx. 100mA Current Draw
• .9lbs
• 105mm x 115mm x 58mm
• Authorized NUX Dealer
