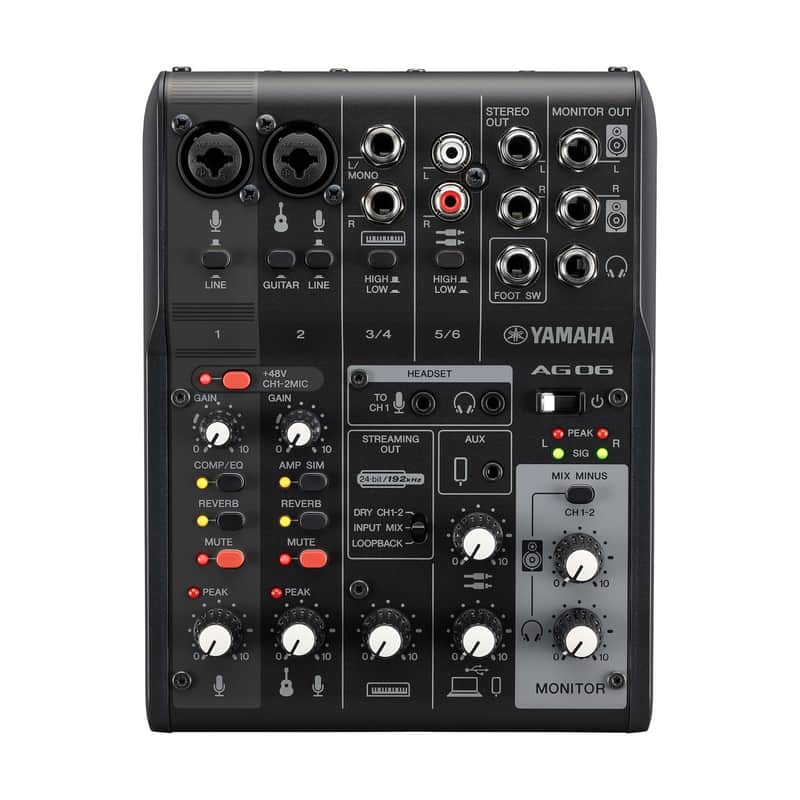

Yamaha - AG06 MK2 - Mixer/USB Interface for IOS/Mac/PC - 6-Channel - Black

Two heads are better than one. The same can be said for microphone inputs, especially when it comes to live streaming. The AG06MK2 offers the same user-friendly configuration and operation that has become synonymous with the AG series, but also comes equipped with two phantom-powered mic inputs for condenser microphones. Combined with flexible connectivity, including an upgraded 4-pole mini I/O, the AG06MK2 opens a broader range of dialogue, interview, musical ensemble performance, or other streaming applications that the AG01 or AG03MK2 setups can’t cover.

Features:

• USB connectivity means easy use for a variety of streaming needs
• 6-channel mixer enables opportunity for numerous microphone and instrument inputs
• 24-bit/192kHz audio resolution guarantees high-quality output
• Built-in DSP provides onboard FX and control, including compression, EQ, filtering, and reverb
• Precision interfacing tools let you stay in control of what gets heard and how, including the built-in loopback mode that allows you to supplement your inputs with audio from your Mac/PC
• Class compliance mode for iPad connection permits for even more control options, including the Cubasis LE production app, and the AG DSP Controller app
• iOS connectivity incorporates use of apps such as Zoom, Skype, Teams, and FaceTime into your live stream, all from your device
• 2 onboard phantom power options are ideal for use with condenser microphones, if needed
• 1/8-inch/3.5mm 4-pole mini I/O jack supplies more opportunities for audio inclusion, including sound effects, cues, and background music from another device — with a dedicated mix control

Specifications:

• Type: Analog Mixer with USB
• Channels: 6
• A/D Resolution: 24-bit / 192kHz
• Inputs - Mic Preamps: 2 x XLR-1/4" combo
• Phantom Power: +48V, Channel 1-2
• Inputs - Line: 2 x 1/4" TRS, 1 x Dual RCA Stereo
• Inputs - Other: 1 x 1/8" (Aux)
• Outputs - Main: 4 x 1/4"
• Headphones: 1 x 1/4" TRS, 1 x 1/8"
• USB: 1 x USB-C
• Computer Connectivity: USB 2.0
• Effects: Loopback function, one-touch Reverb
• Software: Cubase Al, WaveLab Cast, Cubasis LE, Rec'n'Share
• Power Source: USB bus powered (5V DC)
• Height: 2.48"
• Width: 5.98"
• Depth: 7.91"
• Weight: 1.98 lbs.
• Manufacturer Part Number: AG06MK2 B
