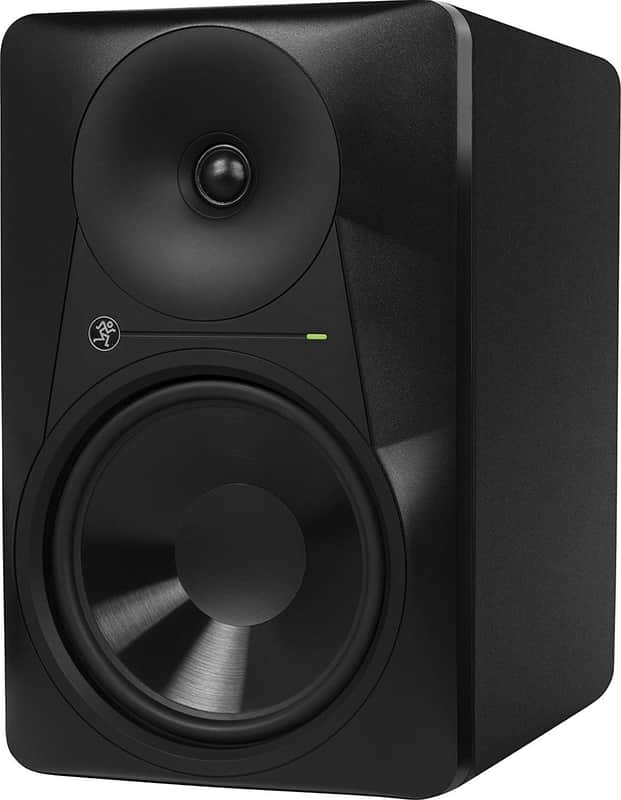

8 Inch Powered Studio Monitor Speaker

With an all-new design, MR Series monitors utilize our proven technology and acoustic tuning to deliver incredible accuracy and clarity. The logarithmic waveguide provides an ultra-wide listening sweet spot and enhanced stereo imaging while the Acoustic Space Control allows you to adjust the frequency response of the monitor to match your studio. Whether it’s dialogue, hip-hop, rock, and beyond, you can listen with confidence knowing your mix will sound great anywhere.

Key Features

• 8 Inch powered studio monitor
• 1 Inch silk dome tweeter
• 8 Inch polypropylene woofer delivers responsive, dynamic low-frequency response
• 85 watts of bi-amplifier Class A/B amplification
• Ultra-wide dispersion for enhances stereo imaging and listening sweet spot

Technical Specifications

Acoustic Performance
Frequency Response (-3dB)
38 Hz - 20 kHz
Transducers
Low Frequency
8.0 in / 203 mm polypropylene woofer
High Frequency
Neodymium magnet driven
1 Inch / 25 mm silk dome tweeter
Amplifiers
Low Frequency Power
55 Watts, 4 ohm load, 110 Watts Peak
High Frequency Power
30 Watts, 6 ohm load, 60 watts peak
Type
Monolithic IC, Class AB with DMOS power stage
Electronic Crossover
Crossover Type
24 dB/octave
Crossover Frequency
1.9 kHz
Sensitivity
+4 dBu at 300 Hz for full output
Input Impedance
20 k , , balanced bridging; 10 k unbalanced
Equalization
High Frequency EQ
±2 dB @ 3 kHz and above
AC Power Requirements
Power Requirements
~120 V, 60 Hz
~220 V - 240 V, 50/60 Hz
~100 V, 50/60 Hz
AC Connector
3-pin IEC 250 VAC, 15 A male
Fuse
15 VAC: T 2 AL / 250 V
230 VAC: T 1 AL / 250 V
Power Consumption
150 watts with music, loud mix
12 watts quiescent (idle)
Physical Dimensions and Weight
Dimensions
Height
15.7 in / 400 mm
Width
10.1 in / 256 mm
Depth
12.6 in / 320 mm
Weight
23.0 lb / 10.4 kg
