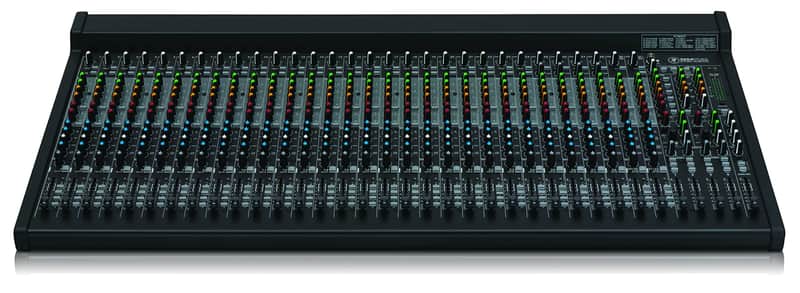

Mackie 3204VLZ4 32-Channel 4-Bus FX with USB \n

The Mackie 3204VLZ4 32-Channel 4-Bus FX Mixer with USB from the VLZ4 4-Bus Series features Onyx in a high-headroom / low-noise 4-bus design with a feature set suitable for live sound. The mixer is equipped with dual 32-bit RMFX+ effect processors, each with 24 effects including tap delay. It also includes compression on dedicated channels and subgroups that allow for simple, sweet dynamic control.

\n

Additionally, both of the FX processors feature a tap delay and the delays may easily be synchronized with the song at the tap of a finger. The processed signal may be sent directly to the mains and monitors from the effects section or re-routed to the 2 stereo channels to bring them through the EQ and AUX section, utilizing the 60mm fader to draw them into the mix.

\n

The 32-channel, 4-bus FX mixer has 8 single-knob compressors to stop the dynamic signals from poking out of the mix. There are 4 compressors are located on the last 4 microphone inputs so that critical signals (such as vocals, snare drum, guitar or keyboards) may be addressed. In addition, there are single-knob compressors on each of the 4 subgroups so that grouped signals (such as a drum set or a choir of vocalists) may be blended together for paramount smoothness.

\n

This mixer also features a 4 x 2 USB recording and playback function. This means that up to 4 signals may be recorded simultaneously and a stereo mix returned to the mixer for playback. Its built-like-a-tank construction delivers years of reliable use under strenuous conditions. The VLZ4 4-Bus Series offers a compact FX mixer solution in a design thats flexible, rugged, and professional.

\n\n Key Features \n

\n
• 4-bus mixer featuring high-headroom, low-noise design
\n
• Boutique-quality Onyx microphone preamps\nWide 60 dB gain range\n128.5 dB dynamic range\n+22 dBu line input handling\nExtended frequency response\nDistortion under 0.0007% (20 Hz to 50 kHz)
\n
• Improved RF rejection, suitable for broadcast applications
\n
• Phantom power for condenser microphones
\n
• Dedicated inline channel compression for critical inputs
\n
• High-headroom line inputs with dedicated inserts
\n
• 3-Band EQ with sweepable mid-range
\n
• 18 dB/octave 100 Hz low-cut filter on microphone input channels
\n
• Level, pan, solo, and overload / mute LEDs on each channel
\n
• Four subgroups featuring dedicated inline compressors for total dynamic control
\n
• Six AUX sends with inserts, pre / post fader, and internal/external FX send options
\n
• Two stereo returns and four group outs with inserts
\n
• Dual 32-bit RMFX+ processors featuring 24 gig-ready reverbs, choruses, and tap delay for live applications
\n
• Integrated 4x2 24-bit USB interface\nStream subgroups or master L / R to your PC or Mac for recording\nUse your favorite plug-in live via AUXES 5 / 6\nConvenient stereo return to mains for music playback or return to channel to implement EQ, AUXES, and more
\n
• PFL / AFL Solo modes
\n
• 60mm long-wearing, log-taper faders
\n
• High-resolution, 12-segment stereo meters
\n
• Sealed rotary controls resist dust and grime
\n
• Built-like-a-tank rugged steel chassis with powder-coat finish
\n
• High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
\n
• Universal power supply for worldwide use
\n
• Applications: Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, multi-track studio and field recording, video post-production, multimedia applications, broadcast, and many more
\n

\n Technical Specifications \n

Noise \nMain Mix Noise:\nMain Mix Fader at Unity, Channel Faders Down: -84.5 dBu (-88.5 dB signal to noise ratio, ref +4 dBu)\nMain Mix Fader at Unity, Channel Faders at Unity: -80 dBu\n(20 Hz to 20 kHz bandwidth, 1/4" main out, channel gains at unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right)

\n

Total Harmonic Distortion (THD) \nMicrophone In to Insert Send: <0.001%\nMicrophone In to Main Out: <0.005%\n(1 kHz at 15 dB gain, 20 Hz to 20 kHz bandwidth)

\n

Crosstalk / Attenuation \nChannel Mute Switch Engaged: -90 dBu\nChannel Fader Down: -88 dBu\n(1 kHz relative to +10 dBu, 20 Hz to 20 kHz bandwidth, microphone in, 1/4" main out, gain at unity)

\n

Frequency Response \nMicrophone input to main output (gain at unity)\n+0, -1 dB, 20 Hz to 50 kHz\n+0, -3 dB, <10 Hz to >100 kHz

\n

Equivalent Input Noise \n150 Termination: -128.5 dBu, 20 Hz to 20 kHz\nMicrophone input to insert send out, maximum gain

\n

Common Mode Rejection Ratio \nBetter than -70 dB at 1 kHz

\n

Maximum Level \nMicrophone In: +21 dBu\nAll Other Inputs: +21 dBu\nMain Mix XLR Out: +27 dBu\nAll Other Outputs: +21 dBu

\n

Impedance \nMicrophone In: 2.7 k\nChannel Insert Return: 2.5 k\nAll Other Inputs: 10 k or greater\nTape Out: <10 \nAll Other Outputs: 120

\n

Equalizer \n3-Band EQ (Mono Channels):\nHigh Shelving: ±15 dB at 12 kHz\nMid Peaking: ±15 dB sweep 100 Hz to 8 kHz\nLow Shelving: ±15 dB at 80 Hz\nLow Cut Filter: 18 dB/octave, -3 dB at 100 Hz\n4-Band EQ (Stereo Channels):\nHigh Shelving: ±15 dB at 12 kHz\nHi Mid Peaking: ±15 dB at 2.5 kHz\nLow Mid Peaking: ±15 dB at 400 Hz\nLow Shelving: ±15 dB at 80 Hz

\n

USB \nFormat: USB 1.1\nI / O: Stereo Input, 4-Channel Output\nA / D / A: 24 bit, 44.1 kHz / 48 kHz

\n

Power Consumption \n65 W, 100 to 120 VAC, 50 to 60 Hz

\n

Operating Temperature \n32 to 104°F (0 to 40°C)\nDimensions\nHeight:\nFront: 1.8" (46.3 mm)\nRear: 6" (153 mm)\nW x D: 38.0 x 19.1" (964.0 x 486.0 mm)

\n

Weight \n39.0 lb (17.7 kg)
