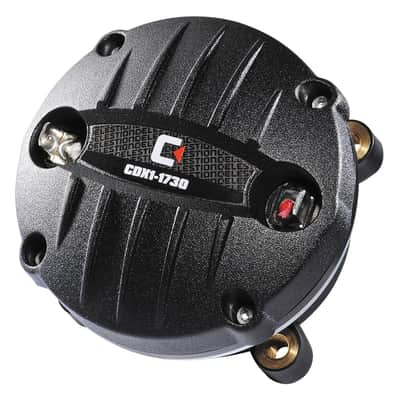

Celestion CDX1-1730 1" Exit HF Driver - 8 ohm
This seller has not set a shipping cost for Slovenia. Please contact them to ask about shipping.
Price€182.08
Incl. VAT
+ Shipping
Listed:over a month ago
Views:22
Watchers:0
Offers:0
Brooklyn, NY, United States
30-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
1-inch exit neodymium magnet compression driver
Features
- Single piece PETP film diaphragm and surround
- Sound Castle diaphragm assembly
- 2,200Hz recommended min. crossover freq (12dB/oct)
- Bolt fitting
- Power rating : 40W
- Continuous power rating : 80W
- Rated impedance : 8O
- Sensitivity : 110dB
- Frequency range : 1200-20,000Hz
- Recommended min. crossover (12dB/oct) : 2200Hz
- Magnet type : Neodymium
- Voice coil diameter : 44mm / 1.75in
- Voice coil material : Edgewound copper clad aluminium
- Diaphragm material : PETP film
- Surround material : PETP film
- Additional impedances : 16O
Mounting Information
- Width : 88.5mm / 3.48in
- Depth : 55mm / 2.2in
- Fitting : Bolt (4 x M6 holes on 76mm/3in PCD)
- Screw version : CDX1-1731
- Throat exit : 25mm / 1in
Horns and Repair Kits
- T5510 : Diaphragm repair kit (8O)
- T5523 : Diaphragm repair kit (16O)
- T5359 : H1-9040P Horn
- T5134 : H1-7050 ‘No Bell’ Horn
- Power rating : Tested for two hours on a plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power is calculated on minimum impedance.
- Continuous power rating : Defined as 3dB greater than the AES rating.
- Sensitivity : Measured on axis at 1W, 1m, using a typical horn, in 2p anechoic environment.
