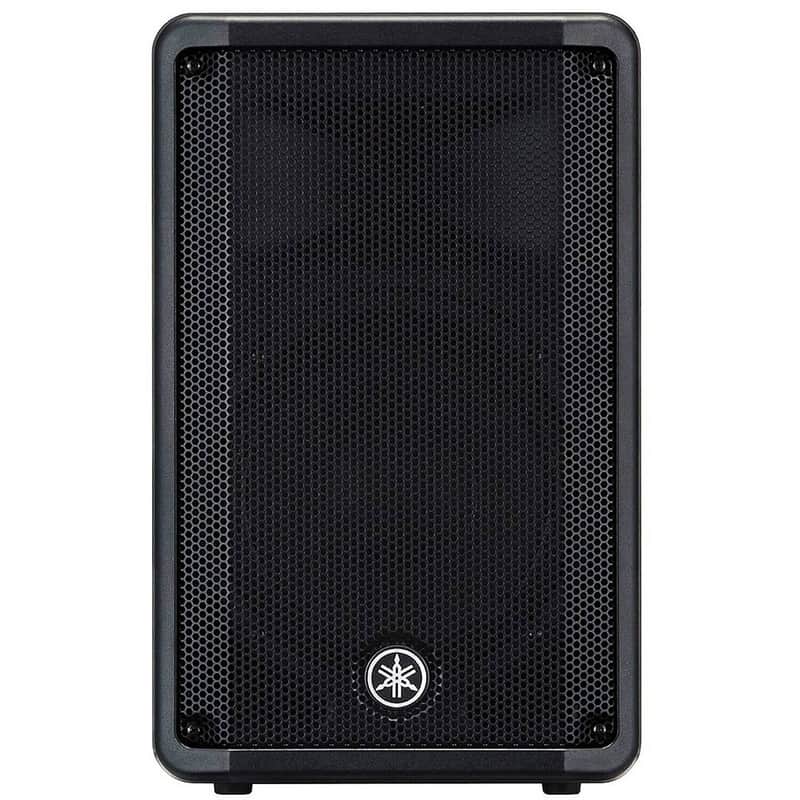

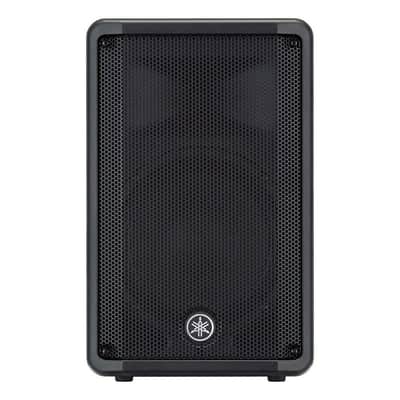

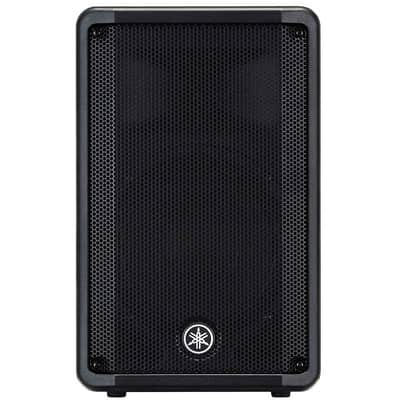

The DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments.

Key Features

• The DBR’s lightweight, high performance Class-D amplifier is capable of producing up to 700W of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics
• The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1 inch precision compression driver produces accurate mid-range and high frequenciesDBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers
• Smart enclosure design for floor monitoring
• Easy-to-use onboard 2 channel mixer

Technical Specifications

Speaker Type2-way, Bi-amp powered speaker, Bass-reflex typeFrequency Range (-10dB)55Hz 20kHzNominal CoverageH: 90 degreeV: 60 degreeComponentsLF: Diameter: 10 inch cone, Voice Coil: 2 inch, Magnet: FerriteHF: Diaphragm: 1 inch, Type: 1 inch throat compression driver, Magnet: FerriteCrossover2.1kHz: FIR-X tuning (linear phase FIR filter)Output PowerDynamic: 700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)Maximum Output Level (1m; on axis)129dB SPLI/O ConnectorsINPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)ProcessorsD-CONTOUR: FOH/MAIN, MONITOR, OFFHeat DissipationFan cooling, 4 speedsPower Requirements100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60HzPower Consumption60W(1/8 Power Consumption), 18W(Idle)Cabinet MaterialPlasticFinishBlackHandleTop x 1Flying and Mounting HardwareBottom x 2 (Fit for M8 x 15 mm eyebolts)Pole Socket35mm (Bottom x 1)DimensionsW: 308mm (12.1 inch)H: 493mm (19.4 inch)D: 289mm (11.4 inch)Net Weight10.5 kg (23.2 lbs)AccessoriesBBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)
