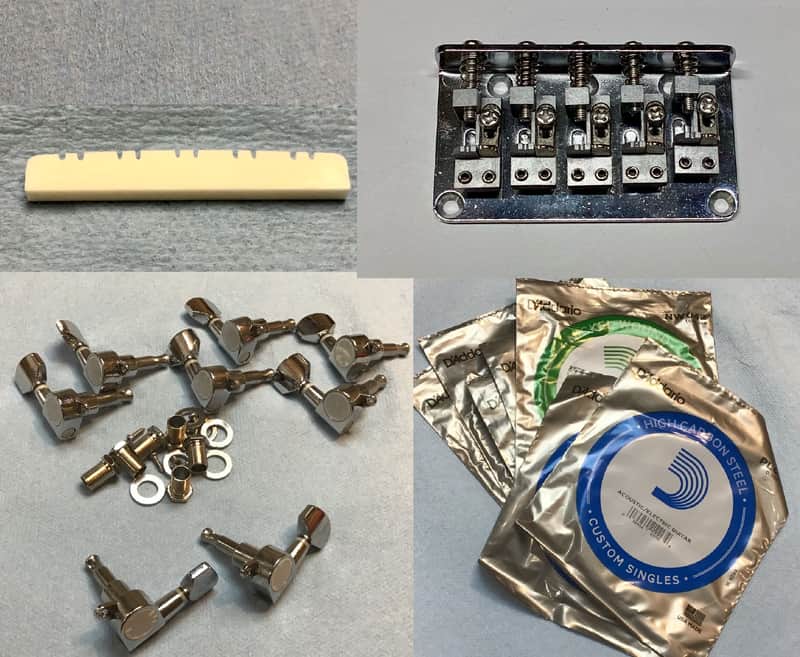

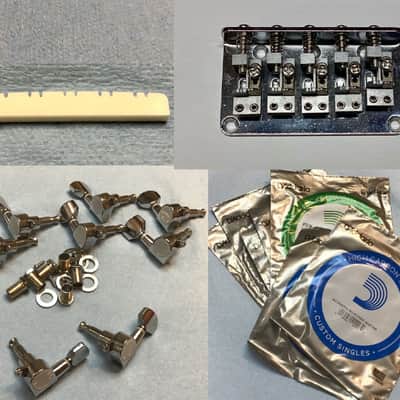

MORTone guitar to 10 string electric mandocello conversion kit

PLEASE NOTE : Message us when ordering with the following information so we can fill your order accurately:

1. Tuning pegs arrangement (6R4L, 4R6L, 5R5L, or other)

2. Tuning of your instrument so we can provide the optimal string gauges (mandolin/mandola, 10 string mandocello/cittern, bajo quinto, or other)

3. Scale length of your instrument (or model of the instrument being converted) so we can provide the optimal string gauges Do-It-Yourself electric guitar conversion kit

4. Nut width (43mm or 48mm)

Convert your electric guitar into a 10 string Electric Mandocello, Mandolin/Mandola, Bajo quinto, 10 string tenor guitar, etc.

Converts hard tail bridge equipped Stratocaster, Telecaster, and most flat top style solid body and semi hollow electric guitars.

All 10 saddles are adjustable for intonation and string height.

Grooved plate maintains saddle spacing.

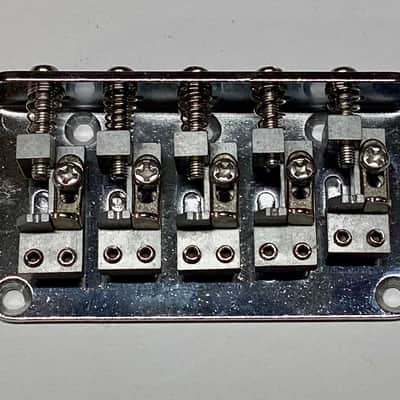

Bridge Specifications:

Top loading direct replacement of hard tail bridge equipped flat top style electric guitar.

string spread: 54mm, intercourse (center to center)spacing: 17mm, intracourse (center to center) spacing: 3mm.

Base plate dimensions: 72mm (W) x 40mm (L).

Some measuring and drilling is likely according to your application.

For telecaster style conversion add MORTone custom conversion pickup ring.

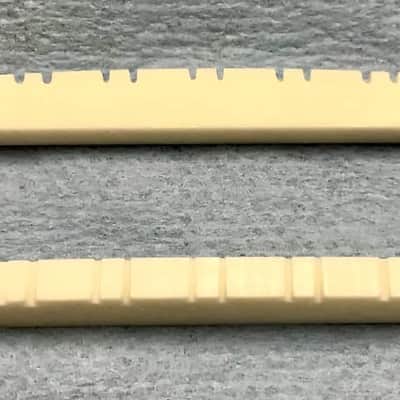

Bone nut pre-slotted for 5 dual string courses (5 pairs of strings), string spacing utilizes full width of guitar neck. (Nut slots will require filing for width and depth).

Specify 43mm or 48mm width when ordering

43mm Nut specifications:

Dimensions: 43mm (W) x 3.5mm (D) x 6mm (H)

String spread: 33mm, intercourse (center to center) spacing: 8mm to 7.5mm, intracourse (center to center) spacing: 3mm to 2.5mm

48mm Nut specifications:

Dimensions: 48mm (W) x 3.5mm (D) x 6mm (H)

String spread: 39mm, intercourse (center to center) spacing: 9mm, intracourse (center to center) spacing: 3mm to 2.5mm

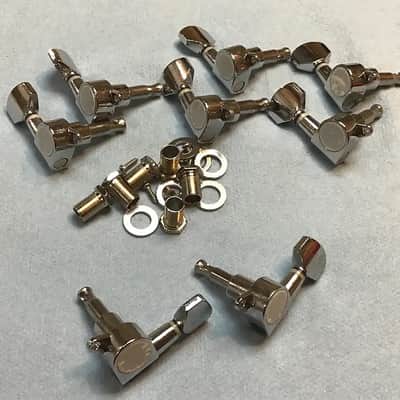

10 enclosed chrome mini tuning pegs;

Specify 6R4L or 6L4R or 5R5L when ordering

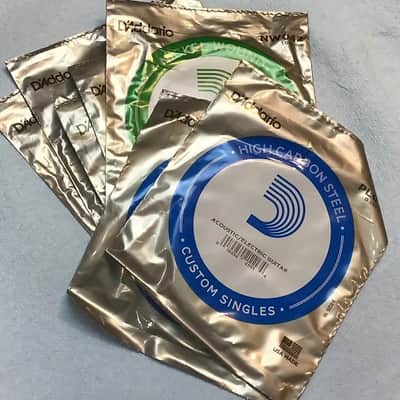

Custom Brand Name string set;

Specify scale length and tuning when ordering

Some measuring, filing, sanding, and drilling is likely according to your application.
