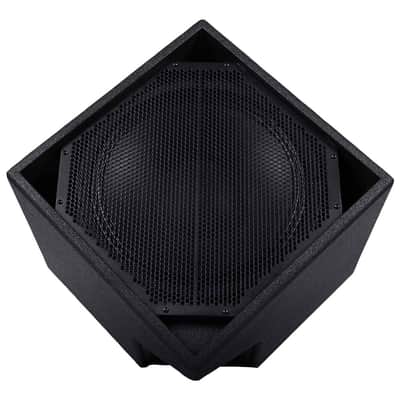

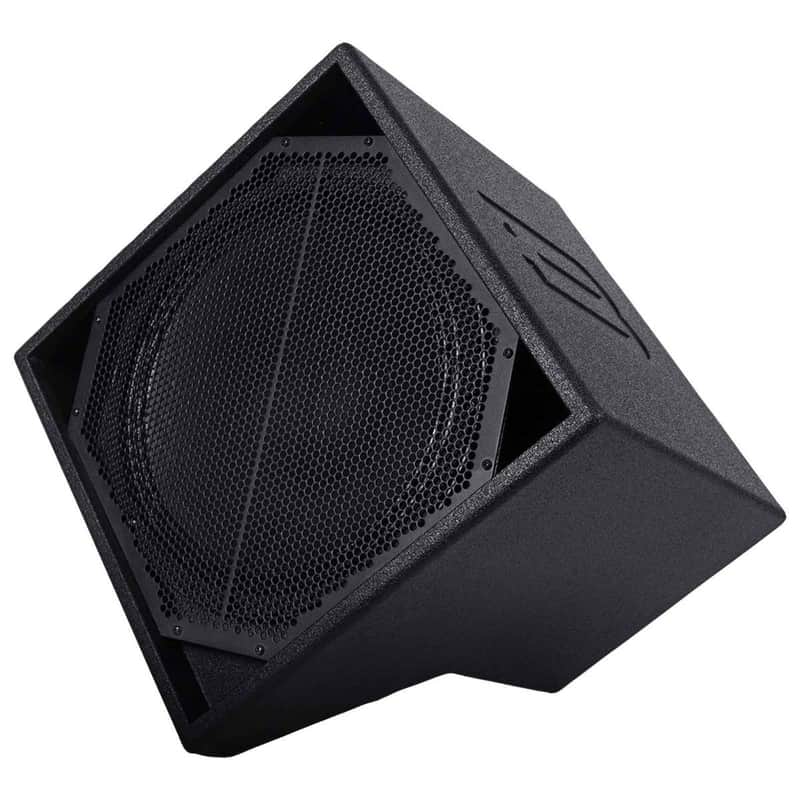

BASSBOSS DiaMon-MK3 Single 12" Powered Top Active Loudspeaker

The DiaMon-MK3 is a high-output, point-source loudspeaker that can make your life easier thanks to its remarkably small size. This very compact and portable system provides impressive output without ever having to lift a large, heavy cabinet. In terms of output SPL relative to size, the DiaMon-MK3 has virtually no competitors. The compact, high fidelity and high output DiaMon-MK3 continues the BASSBOSS tradition of delivering remarkable output capability and outstanding sound quality. Achieving this level of performance from such a small enclosure is made possible by making decidedly different design and component choices. The cabinet is made from Birch plywood, which is strong and solid, and the small size makes it very easily portable. The small size is made possible by the use of a co-axial driver in a sealed enclosure. With the high-frequencies exiting co-axially through the center of the woofer, no extra space is required for the addition of a high-frequency horn. The low and midrange frequencies are produced by a high-sensitivity 12" cone woofer with a 3" voice coil and a neodymium magnet. The same magnet is used for the 3" diaphragm high-frequency compression driver, the 1.4" output of which passes through the woofer's pole-piece. The inner surface of the pole-piece is machined into the shape of a horn. The woofer cone is the continuation of that horn, making it possible to generate very high output from a very small total surface area. The resulting coverage pattern is 80 degrees conical, permitting a large coverage area and a great deal of placement options. A significant advantage of co-axial loudspeakers is the consistency of their off-axis response. Aside from delivering a more consistent and intelligible sound field, this also makes them much more resistant to feedback.

The amplifier features a Class D SMPS with PFC, providing two channels, 900W LF and 300W HF. Eight on-board presets allow for a variety of configurations at the touch of a button, and LAN connectivity allows access to virtually unlimited preset combinations. On-board presets provide a variety of high-pass filters to suit full-range operation through a variety of settings that maximize SPL when used with a subwoofer. The sealed enclosure provides the flexibility to choose between low-frequency extension or high-SPL operation from the same compact loudspeaker. When used with subs in high-SPL presets, remarkably large events and venues can be covered with these tops that measure just 14" x 14" x 11" and weigh less than 30 pounds. The proprietary BASSBOSS processing ensures exceptional sound quality thanks to its premium quality, high-fidelity electronics. Its ultra-low noise CODECS, 96kHz sampling rate processor and high-resolution amplification are some of the finest in the industry. BASSBOSS loudspeakers are protected for safe, high-power operation. Optimized signal processing, premium quality drivers, power-matched amplification and comprehensive protections ensure that no matter the demand, they keep their cool, keep their character and keep on working. The Birch wood cabinet features a 35mm steel pole socket and is finished in durable, highpressure polyurea coating. Power, signal and data connectors are hidden on the bottom panel, providing a clean, tidy look that maintains the compact aesthetic.

BASSBOSS DiaMon-MK3 Single 12" Powered Loudspeaker Features:

• DiaMon-MK3 Single 12" Powered Top.
• Sweet sound, signature shape, simply smashing sophistication.
• You're looking for an edge.
• You like to be able to load in and load out alone.
• You need a system that will cover a large area.
• You need more sound from less space and less weight.
• Because smaller tops are easier to lift.
• Because you want more sound not bigger speakers.
• Because you don't want the same boring speakers as everyone else.
• Because you think DJs deserve kick-ass monitors.
• The DiaMon doesn't waste any energy or space trying to deliver the lows that the subs can handle perfectly well.
• Its power is concentrated on the very important job of delivering loud, clear mids and highs.
• Enough to keep up with several large subs.
• A high-efficiency 12" midrange/woofer with a 3" compression driver tweeter firing through the middle is loaded into a cabinet that's as small as possible, just big enough to hold the driver, the 1200W amp and the DSP electronics.
• There are all-new amplifiers in the MK3 series.
• Total power has increased, however power allocated to woofers increased substantially.
• The higher output voltages provide more impact.
• Universal input voltage compatibility of 90-250V provides more flexibility.
• Waterproof connections provide more peace-of-mind.
• The MK3 features an all-new 96kHz DSP.
• The pushbutton presets have doubled, from 4 to 8, and up to 100 presets can now be stored in the DSP and loaded via LAN.
• The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.
• ControlBASS software supports an essentially unlimited number of possible BASSBOSS-developed or customized user presets which integrate seamlessly and coherently with all other BASSBOSS products for effortlessly perfect setups.
• The latest in DSP programming developments can be added via easy remote updating.

Each DiaMon-MK3 Retail Box Includes:

(1) BASSBOSS DiaMon-MK3 Single 12" Powered Top Active Loudspeaker
(1) 15' (5m) Power Cable
(1) Manual
(1) Warranty Card
