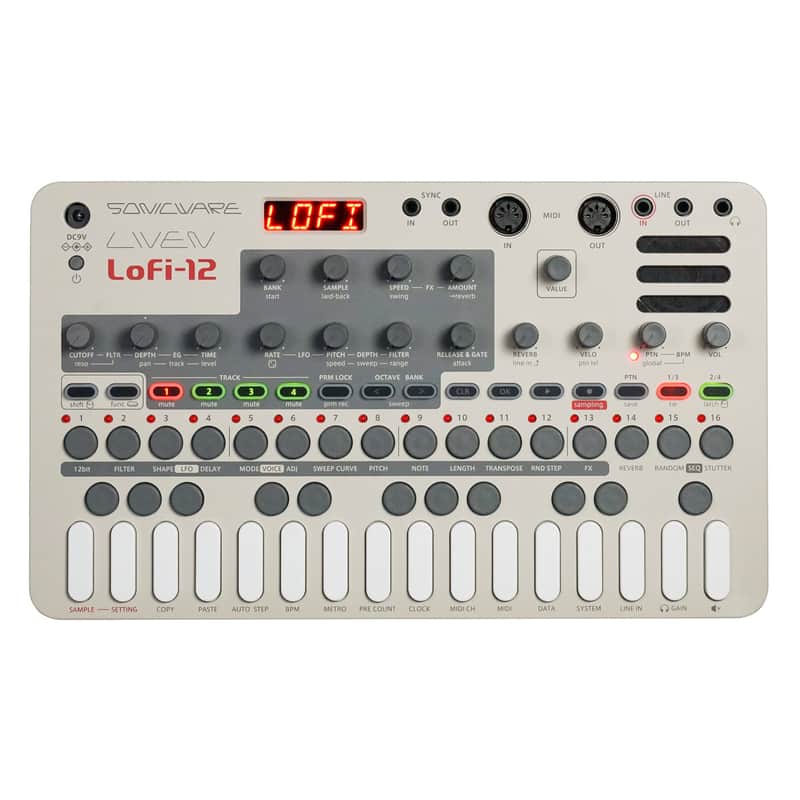

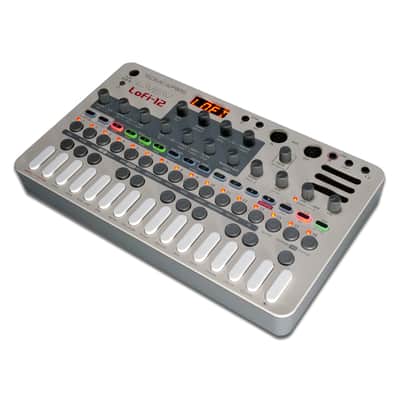

Turns everything into Lo-fi!

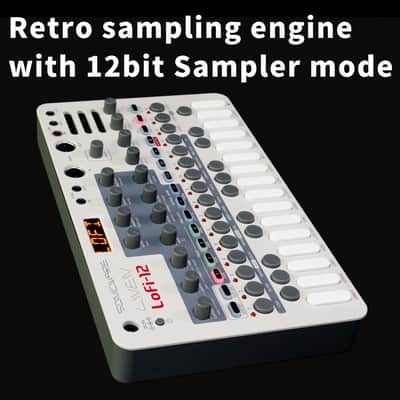

● Retro sampling engine with 12bit Sampler mode
● Easily play samples chromatically across the keyboard

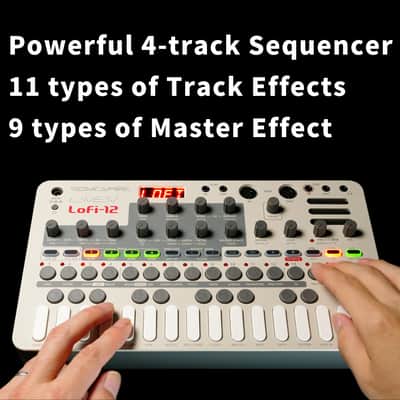

● Powerful 4-track sequencer with parameter and sound locking
● Laid-back knob for creating drunk beats
● 12 types of Effects on each track and 9 types of Master Effect

Specifications

[Sampler]
- 16bit - 12kHz or 24kHz (switchable) linear PCM sampling (mono)
- 12bit Sampler mode
- Sampling up to 4 seconds per sample (12kHz) or 2 seconds per sample (24kHz)
- Auto start sampling function with the input level (input level can be set)
- Start/end point, attack, release, pitch, and level adjustment
- Reverse playback
- Sustain loop settings
- Resampling
- Chopping with Downbeat Divider
- Maximum polyphony: 10 voices
- 128 sample memory slots (16 x 8 banks)
- Import and export of a slot or banks of samples (via MIDI)
  *Import of audio files from PC/Mac is not supported.
Voice mode
- 10-note polyphonic mode
- Mono mode with adjustable glide time
- Legato mode with adjustable glide time
- Arpeggiator modes (Up, Down, UpDown, DownUp, Up&Down, Down&Up, Up+1, Up+2, Down-1, Down-2, Random, Play Order)
- Drum mode (Polyphonic playback, set the length of one slice with Downbeat Divider)
- Chop mode (Mono/Choke playback, set the length of one slice with Downbeat Divider)
Filter
- Low Pass
- High Pass
- Band Pass
Each track has its own filter and envelope
LFO
- Each track has one LFO which can affect both pitch and filter cutoff with separate adjustable levels
- Adjustable LFO Shapes
- Adjustable start time delay for each LFO
SWEEP
- Sweep with adjustable speed, range, and curve

[Effects]
Track effects
One effect per track
- Chorus
- Flanger
- Tremolo
- Delay
- Distortion
- Bit Crusher
- Low Pass Filter
- High Pass Filter
- Isolator
- Tilt EQ
- Compressor
- S.Maximizer
Master effects
Master send amount can be set independently for each track
- Hall Reverb
- Room Reverb
- Arena Reverb
- Plate Reverb
- Tunnel Reverb
- Infinity Reverb
- Cassette Tape Simulator
- Vinyl Simulator
- Remix performance effect

​[Sequencer]
- 4 tracks
- Up to 64 steps per pattern
- 64 patterns
- Step length can be set from 1/1 to 1/32
- Real-time recording
- Directly enter notes for each step when playback is on or off
- Enter longer notes (Tied notes)
- Metronome and pre-count function
- Step copy and paste function
- Track copy and paste function
- Duplicate to extend a sequence
- Transpose function
- Swing function
- Pattern BPM / Global BPM can be set
- Pattern chain function (Loop playback possible)
- Track level and pan can be set independently
- Parameter Lock function to record parameter settings for each step
- Sound Lock function to record sound settings for each step
- RANDOM function to play back steps in random order
- STUTTER function to play back only the step being pressed
- DICE function to set the note playback probability from 25 to 100%

[MIDI]
- Notes, control changes, clock input/output
- Import and export user data
- Firmware update via Sysex

[Unit]
Keyboard
27 keys (with a hold function)
Knobs
- 15 physical control knobs
- Optional LATCH function prevents jumps in value when knob position and parameter values do not match.
- One physical encoder for fine adjustments.
- LCD dot indicates when a parameter value matches the saved value, or when the value has been changed.
Audio in
- LINE IN (stereo 3.5mm mini-jack)
- Compatible with Teenage Engineering Pocket Operator Series SYNC IN
Audio out
- Stereo line out (stereo 3.5mm mini jack)
- Headphone out (stereo 3.5mm mini jack)
- Compatible with Teenage Engineering Pocket Operator2 Series SYNC OUT
- Built-in speaker
Interfaces
- MIDI IN connector (5-Pin DIN type)
- MIDI OUT connector (5-Pin DIN type)
- SYNC IN jack (monaural 3.5mm mini jack)
- SYNC OUT jack (monaural 3.5mm mini jack)
Size
11.7 in (W) x 6.92 in (D) x 1.89 in (H)
297mm (W) x 176mm (D) x 48mm (H)
Weight
1.74lb.
790g
Power supply
- 9V DC output AC adapter (included)
Current: 1A or greater, Plug Type: EIAJ3 Standard, Inner Diameter: 1.7mm, Outer Diameter: 4.75mm, Polarity: Center +
- Compatible with power supplies designed for the Korg Volca1.
- 6 AA batteries

[Accessories]
- Warranty
- Overlay sheet for sampling & editing
