Henry Engineering SUPERELAY II VERSION Utility Conrol Interface

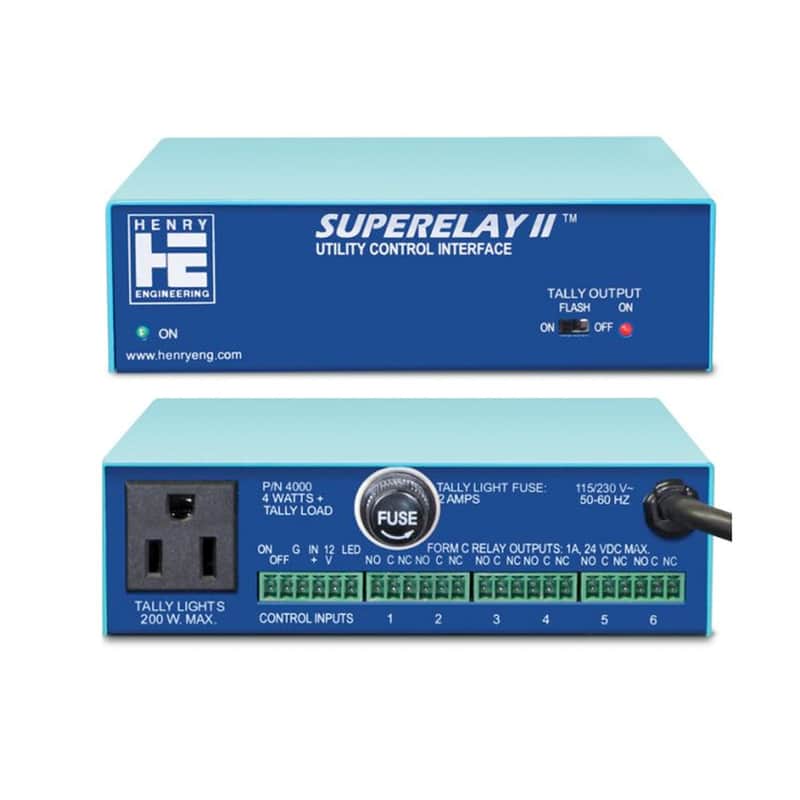

Superelay II provides six isolated SPDT relay outputs, plus an AC Tally Light output that can be set to flash. The AC Tally Light output is switched with a synchronous solid-state relay to prevent electrical noise or arcing. All outputs switch simultaneously. Superelay II can be controlled with an external DC voltage (5-24v), a momentary or continuous contact closure, or any circuit that switches to ground. Control inputs and relay outputs are via plug-in Euroblock connectors. A front panel LED indicates Tally on/off status. A Slave output permits multiple Superelay II units to operate in tandem from a common Control input. Superelay II is 1/3 rack width and can be mounted in an optional rack shelf, or wall mounted with optional wall/cabinet mounting brackets. Specifications: Control Inputs: - ON: Mom. or cont. contact closure - OFF: Mom. or cont. contact closure - DC: 5-24VDC, maintained Outputs Relays: - 6 form-C (SPDT), 1A, 24VDC max. - Tally Light: AC Line Voltage
