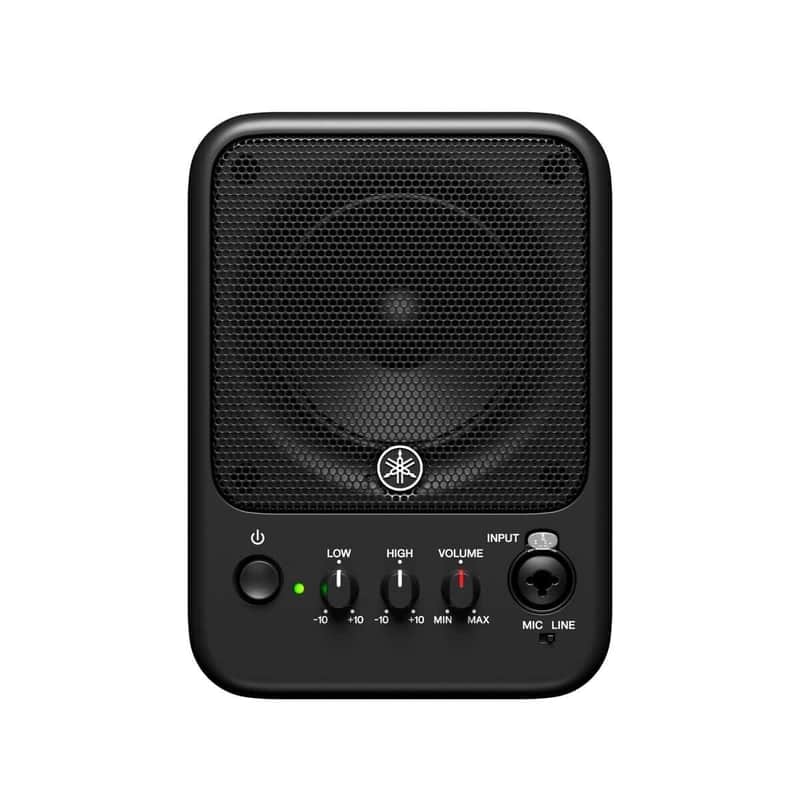

The MS101-4 powered monitor speaker is our standard in the range of desktop utility powered monitors. It offers portability in a compact design and simple but comprehensive functions for outstanding usability. Don't let its small footprint fool you, the MS101-4 is capable of up to 117dB SPL, great even in noisy environments, its wide dynamic range provides remarkable accuracy at low levels as well.\n

Key Features

\n\n

\n
• 30 Watts of amplifier power provides clean, high output sound
\n
• Four-inch-high output driver with a 1-inch voice coil
\n
• Front mounted controls provide easy access
\n
• Two band EQ for quick tone adjustments
\n
• Redesigned enclosure for an even lower profile
\n
• Smooth frequency response from 77kHz to 20kHz
\n
• Compatible with a wide range of optional brackets
\n
• Directly mountable on Euro microphone stands
\n

\n

Technical Specifications

\nSystem Type\nFull range powered Speaker, Bass-reflex Type\nFrequency Range (-10dB)\n77Hz - 20kHz\nMeasured Maximum SPL(Peak) Pink noise (1m)\n115 dB SPL\nTransducer\nDiameter\n4†Cone\nVoice coil\n1â€\nMagnet\nFerrite\nEnclosure\nMaterial, Color\nPlastic (PP), Black\nDimensions (WxHxD, without rubber feet)\n142x196x187 mm (5 5/8â€x 7 3/4â€x7 3/8â€)\nNet Weight\n2.1kg (4.6 lbs)\nHandles\nSide x 2\nScrew Threads (bottom)\n2 x M5; depth 11mm; spaced 60 mm apart\n1 x 3/8-16; depth 12mm (.47â€)\nOptional Speaker Brackets\nBMS-10A, BAS-10, BWS20-190, BCS20-210, BCS20-150\nAmplifier\nAmplifier Type\nClass-D\nPower Rating\nDynamic\n30 W\nContinuous\n20 W\nCooling\nNatural cooling (no fan)\nConnector\nInput\nInput (Front): Combo, Line Input 1: Stereo mini, Line Input 2: Phone TRS\nOutput \nPhone TRS (x1)\nPower\nIEC AC Inlet x1\nInput Impedance\nINPUT (Front): LINE: 5.4 kO, MIC: 5.4 kO, LINE INPUT 1, 2: 10 kO\nInput Sensitivity (VOLUME: Maximum)\nINPUT (Front): LINE: -10 dBu, MIC: -40 dBu, LINE INPUT 1, 2: -10 dBu\nNominal Input Level (VOLUME: Center)\nINPUT (Front): LINE: -10 dBu, MIC: -40 dBu, LINE INPUT 1, 2: -10 dBu\nMaximum Input Level\nINPUT (Front): LINE: +20 dBu, MIC: -10 dBu, LINE INPUT 1, 2: +20 dBu\nControls\nVOLUME x 1, LOW CONTROL x 1, HIGH CONTROL x 1, POWER\nIdle Power Consumption\n3W\n1/8 Power Consumption\n10W\nPower Requirements\n100V-240V, 50/60 Hz
