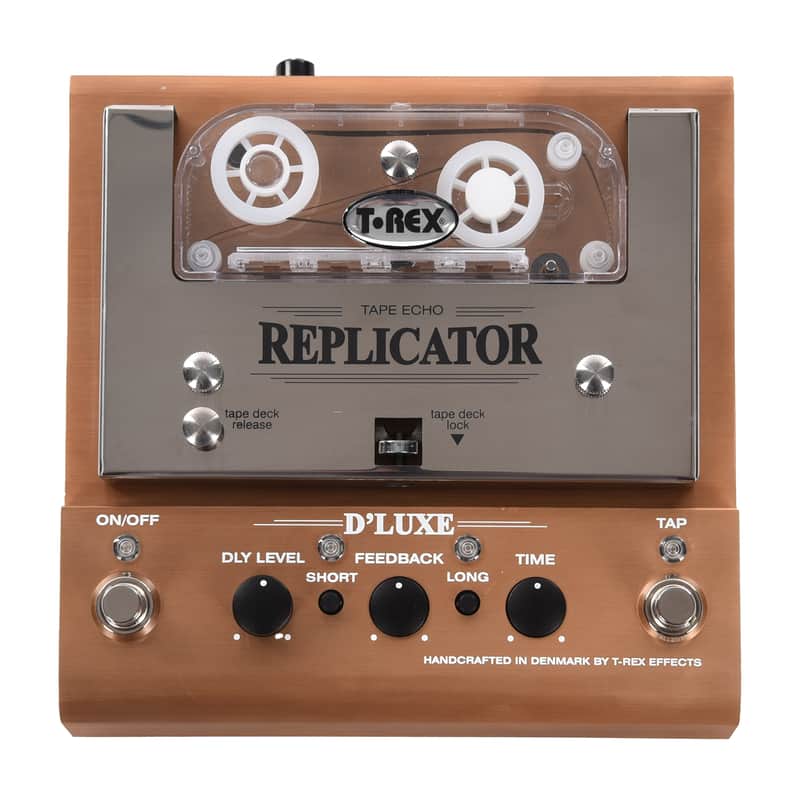

The Replicator D’Luxe is a sum up from all the knowledge, we have built up over the years, making Tape delays.

It is a 2 head machine. The drive mechanism has been updated with a noiseless belt drive. A tape lock/release mechanism is added, to make the pinch wheel and tape last longer and electronics has been tuned to perfection.

Features:

• HANDCRAFTED IN DENMARK
• Multiple Playback-heads for true analog tape echoes
• One Record head and two playback heads. Short Head for slap back delay. Long head for longer modern delays, or combine both heads for a semi Delay-Room experience
• Delay time Short head =108 – 520mS. Delay time long head = 215 – 1000 mS
• Tap tempo for Long Head and half the time for the short head
• True Bypass switching with a gold plated relay
• New motor suspension with belt drive, for reduced noise operation
• New Tape deck lock-mechanics to protect pinch roller and tape for longer life span
• All analog signal path from input to output
• Power supply with exchangeable blades 90-240 Volt, and an extra tape cartridge included

Input impedance: @ 1KHz    > 500K Ohm
Output impedance: @ 1KHz    < 1K Ohm
Power supply (included):    12VDC, center negative
Current draw: @ 12VDC    300mA
Maximum input signal: Vp-p    8,7V p-p (12dBu)
External connectors: input, output, DC inlet
Controls: delay time, feedback, delay level, saturation, kill dry, short, long, on/off, tap tempo
Pedal size incl. knobs: (W x H x D) 3,15 x 6,85 x 6,89 in
