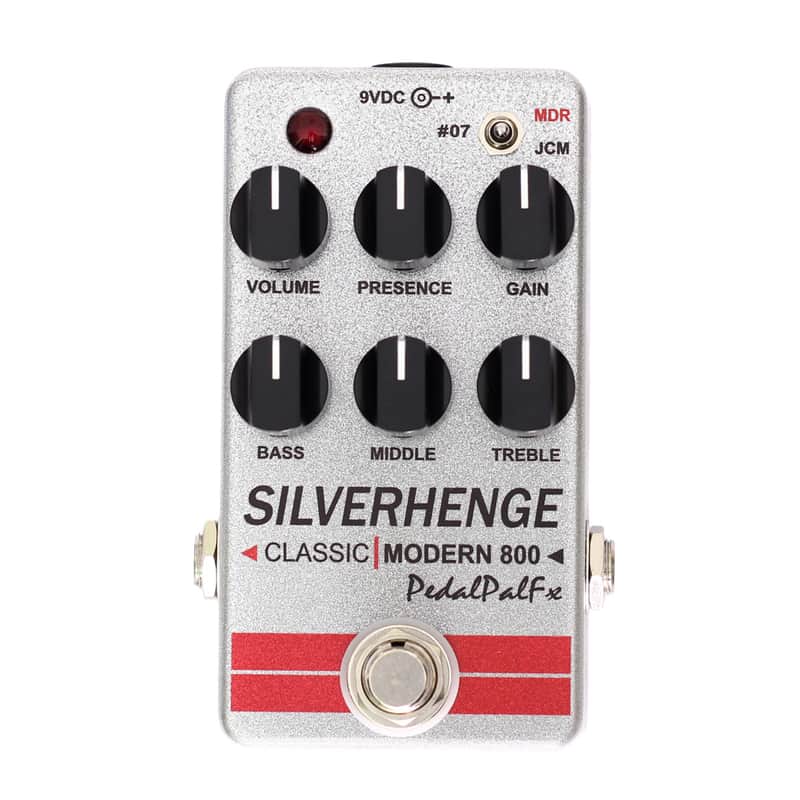

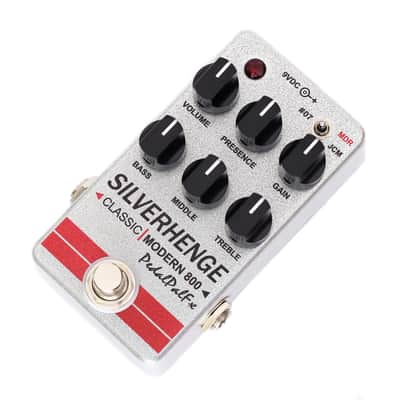

SILVERHENGE (PAL800 JCM Emulator Reissue)

Pedal Description:

Hi! Here Luis from PedalPalFx… I am glad to present the SILVERHENGE Classic-Modern 800, this is the reissue of our first model from the 800 series, the PAL800 JCM Emulator, known as "The Silver Version" that had exactly the same circuit of the JCM800 amp, no more no less, replacing the vacuum tubes for very selected transistors carefully setup to perform the same way in each stage of pre-amplification.

Thanks to the three way toggle switch, I add to this reissue some of my favorite mods in the 800 series, like the Mod #07 related to the gain voicing switch and the Mod MDR that adds more saturation into the circuit delivering a modern JCM800 sound, similar to the ones you can get from the PAL800-V3 GOLD Overdrive.

As in all our “Marshall in a box” units, this pedal includes a "Master Tone" trim-pot inside the main circuit board that adjusts the final tone of the pedal to your liking and gear.

"Go from Classic to Modern with our Silverhenge Overdrive…" -Luis-.

Pedal Specs:

• SMT (Surface-Mount Technology) components.
• Special selected transistors carefully setup for maximum performance.
• Made & Setup One By One.
• Same circuit of the JCM800 amp replacing the vacuum tubes for very selected transistors.
• OP-Amps free, CMOS free and Clipping Diodes free.
• Gain Knob.
• Three Band EQ: Bass, Middle and Treble Knobs.
• Presence Knob.
• Master Volume Knob.
• Three-Way Toggle Switch: JCM (Classic JCM800), Mod #07 and MDR (Modern JCM800).
• Master Tone trim-pot inside the main circuit board.
• Input Impedance: 1M ohm.
• Output Impedance: <100K ohm.
• Power Consumption: 9VDC / 7.5mAh.
• AC Adapter required (Not included): Regulated 9VDC, 2.1mm Coax Plug - Negative Center.
• True Bypass Hardwire.
• Weight: 250 grs / 8.8 oz.
• Size: 115mm (D) x 70mm (W) x 51mm (H).

Shipping Information:

We cannot send to a P.O. Box address,  warehouse or similar service facilities.

The pedal will be sent sealed in its original package and well packed, custom authorities may in some cases open the package for inspection as an aleatory procedure and it will be repackaged. please take this on consideration.

Custom Duties:

Please take on consideration that you may pay custom duties in your country that are not included in the price on Reverb, this additional cost must be assume by the customer.

Payment Information:

PayPal and Reverb Direct Checkout accepted.
