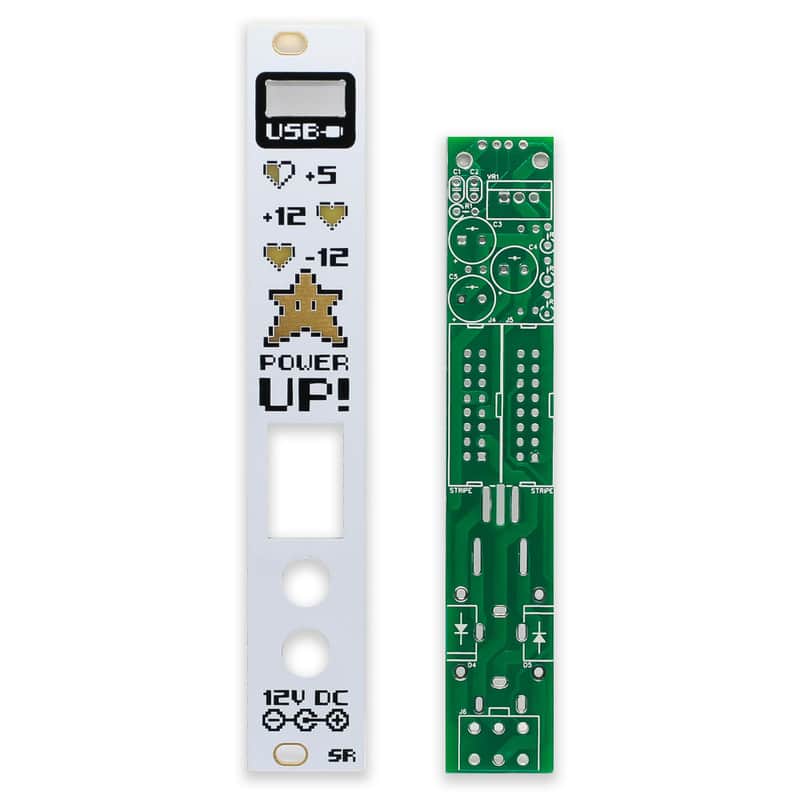

Synthrotek Power UP PCB and Panel - Eurorack Power Supply Module PCB Set

Please note: This includes the PCBs and panel only. Please see the bill of materials on the Synthrotek website for a complete list of parts needed.

Up your game with the Power UP! Get a massive power boost to your system: up to 5A on both the +12 AND -12V. A simple, dual brick power system that is dollar-for-dollar the most power you can get per rail.

Features and specifications:

• Power output:
• +12V: 4-5A
• -12V: 4-5A
• +5V: 1.5A
• Two 16-Pin Eurorack power connectors, keyed for safety
• Molex quick-release connector for easy install of Synthrotek bus boards
• USB jack for powering an iPhone, Beat Step Pro, etc.
• Includes two isolated 12V 5A power brick (input voltage 12V), DC Input Jack size: 2.1mm
• Module Width: 4HP
• Module Depth: 31mm


Please note: Since power draw specs vary between manufacturers, available amperage is approximate; draw will be 4-5A per 12V rail. Requires two isolated center positive 12V 5A bricks to function correctly. Using any other power brick will void the warranty.
