The following specs were carefully collected and recorded by a skilled technician. For a more detailed description and questions regarding sound, feel, or cosmetic condition, please call to speak to one of our experts.

Summary

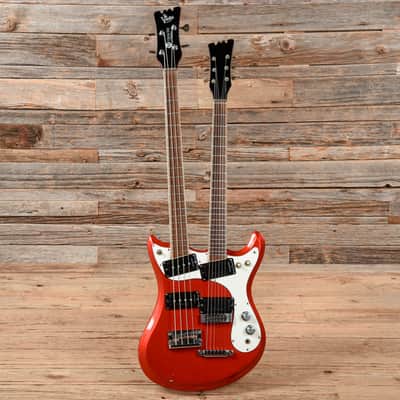

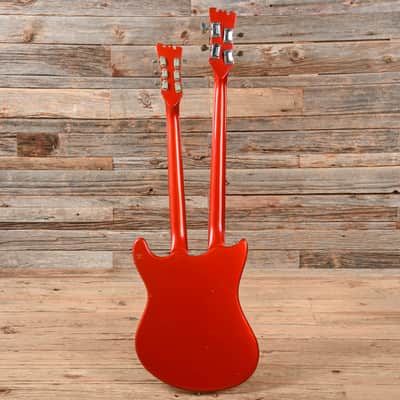

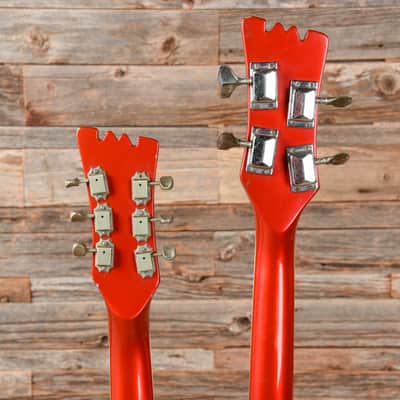

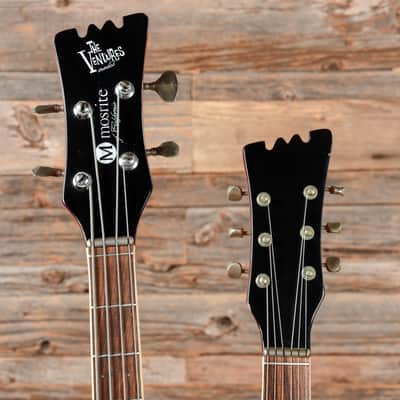

Finish: The guitar has been fully refinished. The headstock faces have been refinished and the decals replaced.

Body Material: Pine

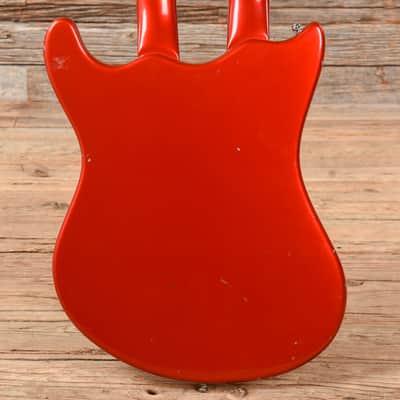

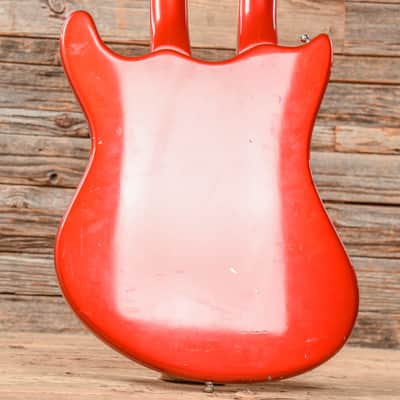

Body Details: Solid pine body. The body has been fully refinished.

Neck Material: Maple

Neck Profile: "C" profile

Neck Thickness (IN): 6 string: .74" (1st fret), .78" (12th fret); Bass neck: .78" (1st fret), .81" (12th fret)

Fingerboard Radius: 9.50"

Nut Width: 1-1/2"

Scale Length: 24 1/2"

Neck Details: The originally bolt-on necks have been glued in. Both are maple necks with bound rosewood fretboards, dot inlays, and truss rod adjustments at the heel. Both necks have been refinished, and the decals on the bass neck have been replaced. The bass neck has a 30 1/2" scale length.

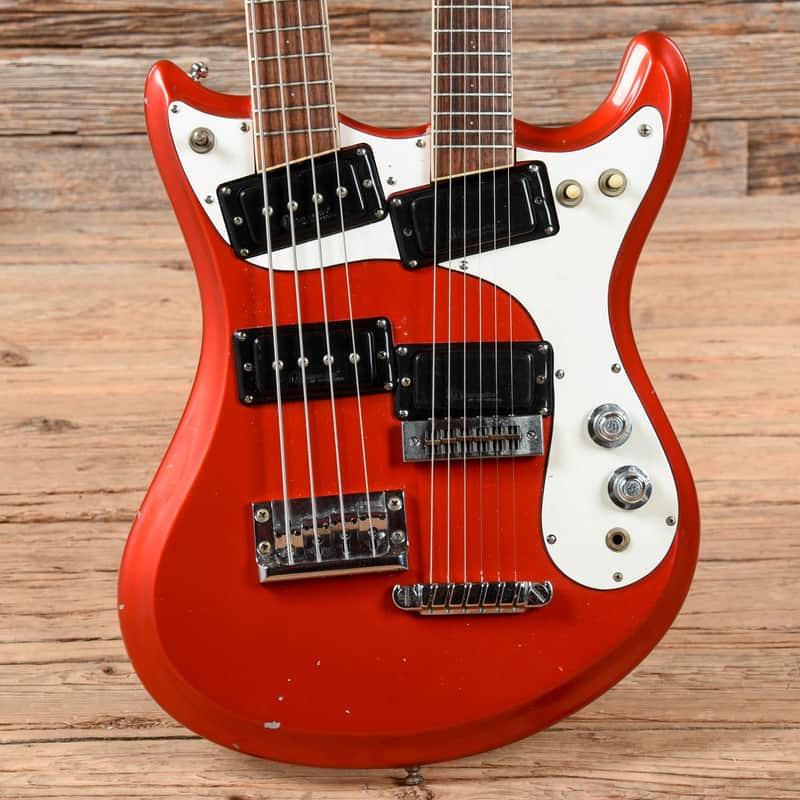

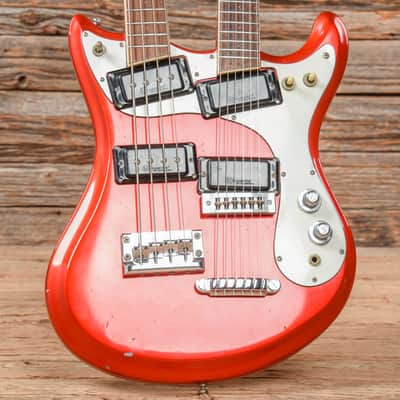

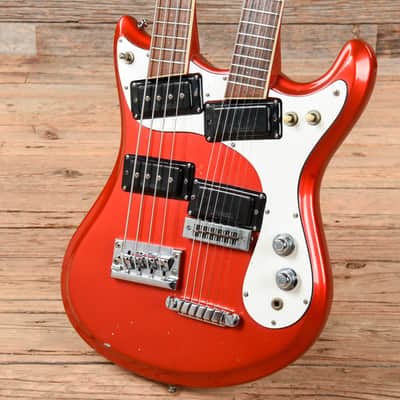

Electronics: Original Mosrite pickups and wiring harness, with neck select switch, 3-way pickup selector switches for both necks, and master volume/tone controls. The pickup mounts were repaired with epoxy, and several solder connections have been repaired. The pot codes date to 1971.

Pickup Measurements: 6 string: 5.4k (neck), 10.8k (bridge); Bass: 6.4k (neck), 6.4k (bridge)

Hardware: The bridges and tailpiece are both not original. The pickguard is not original.

Weight: 11 lbs 12 oz

Cosmetic Condition: The guitar has light cosmetic wear, with various small chips and dings on the glossy finish.

Modifications/Repairs: -The body and neck have been fully refinished -The necks have been glued in -The bridges, tailpiece, and pickguard have been replaced -Some solder joints have been repaired -The pickup mounts were repaired with epoxy

Tech Notes: The guitar plays well with medium action and light relief on both necks. The truss rods on both necks have limited adjustability, however the 6 string neck sets up well with 9 gauge strings and the bass neck sets up well with 45 gauge bass strings. The narrow frets are low with minor play wear. The design and pot codes dates the instrument to 1971.

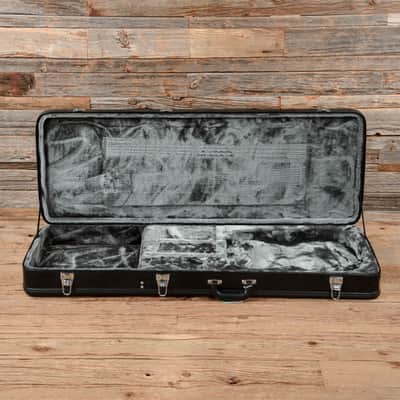

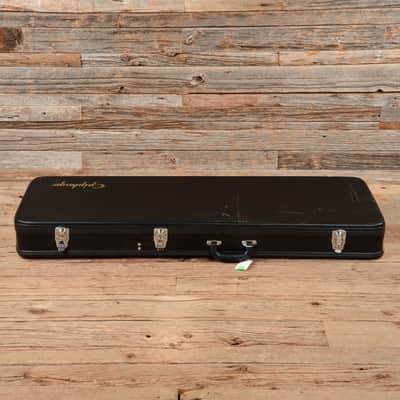

Case Details: Hardshell Case

Reverb Buyer Protection

Reverb has your back if your item is lost, damaged, or doesn't match its description. Simply report any issues within 7 days and we'll help you get a full refund.Learn more about Reverb Buyer Protection.

Listeda year ago
ConditionVery Good (Used)
Very Good items may show a few slight marks or scratches but are fully functional and in overall great shape.Learn more
Brand
Model
  • Joe Maphis Double Neck
Finish
  • Orange
Categories
Year
  • 1971
Made In
  • United States
Body Type
  • Solid Body
