NUX TAPE ECHO is a tribute to the Japanese-made Space Echo from 1974. Analogue tape echo devices record incoming audio to a loop of magnetic tape, then replays the continuous loop over the playback head before it is erased again by new incoming audio. The Space Echo units used the standard 1/4" tape designed to spool onto tape-reels, however, this device used no reels of any kind; the tape is transported via a capstan drive. The tape loop is contained in a loose, constantly moving jumble in the tape chamber (also known as the tape tank) under a plastic panel which protects the tape and keeps it from getting tangled. The design resulted in lower levels of noise, wow, and flutter, and cut down on tape wear. NUX TAPE ECHO uses Core-Image technology to capture these characteristics including BASS, TREBLE, REPEAT RATE (TIME), INTENSITY (REPEAT), ECHO VOLUME (LEVEL), REVERB VOLUME (REVERB), and physical features like WOW, FLUTTER, SATURATION. Even self-regenerate, self-oscillation using a dual foot switch stomp-box enclosure

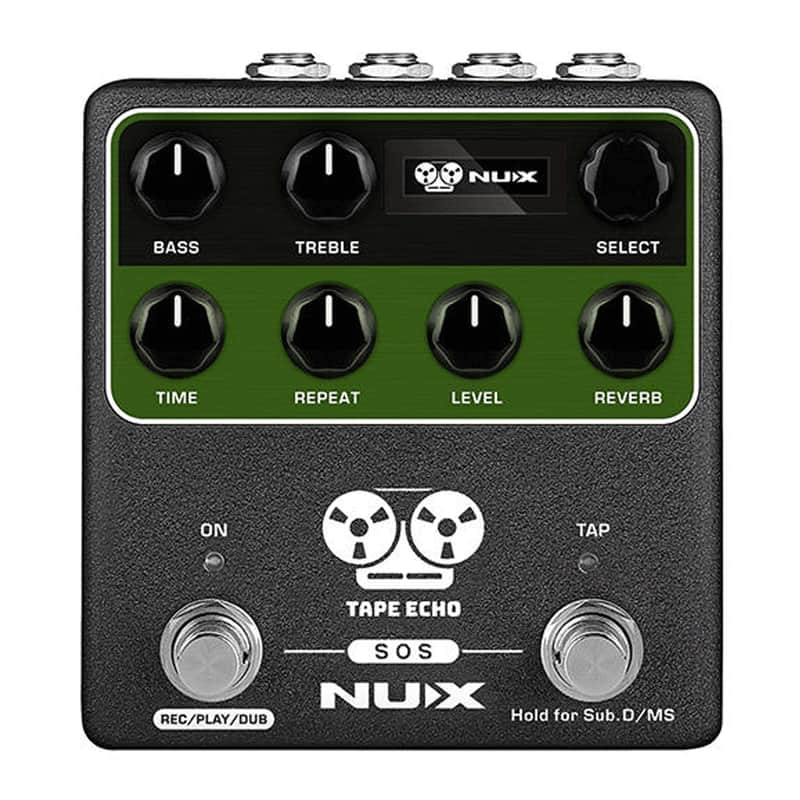

NUX TAPE ECHO offers all the essential knobs like BASS, TREBLE, TIME, REPEAT, LEVEL, REVERB and SELECT (repeat pattern) for quick tweaking. SHORT PRESS and hold the SELECT knob to enter ALT TWEAKING for SATURATION, WOW, FLUT, KILL DRY, EXP.

Repro-Tape Heads Combination

NUX Tape Echo keeps the controls of the original hardware, and adds some for modern workflows. Use the SELECT knob for various head combinations, TIME for timing control, and REPEAT for repeats and self-oscillation. New features include BPM(Sub-division)/MS switching, and TAP TEMPO.

Spring Reverb brings psychedelic Slapback & Ambience

The important characteristic of Space Echo is the spring reverb. Core-Image technology captured the natural spring reverb sound, combined the warm and organic delay, TAPE ECHO gives you lush echoes.

• Up to 1600ms stereo delay time by Tap Tempo
• 7 Repro-Tape Heads combinations and Reverb only
• Core-Image technology brings natural Tape Echo with parallel spring reverb sound back
• Realistic infinite pitch-shift feedback with TIME & REPEAT knobs tweaking
• Sub-division time signature with Tap Tempo foot switch
• 40 seconds stereo phrase loop with OLED status display
• Optional delay time display (MS / BPM)
• MIDI In/Out
• Holding ON footswitch for self-feedback

Features

• Sampling rate : 48kHz
• A/D Converter : 32Bit
• Signal Processing : 32Bit
• Frequency Response : 20Hz~20kHz - ±1dB
• Input Impedance : 5MO
• Maximum input level : 1.5Vrms
• Output Impedance : 100O
• Maximum output level : 1.5Vrms
• System Latency : 1ms
• Dynamic Range : 103dBu/105dBu(A-Weighting)
• THD+N Ratio : 0.0038% input 1Vrms_1kHz ;01%   input 1.5Vrms_1kHz
• Power : 9V DC(Negative tip, Optional ACD-006A adapter)
• Current Draw : approximately 100mA,<150mA
• Dimensions : 105mm x 115mm x 58mm
