ObsidianWire Traditional Vintage for Precision Bass pre-wired kit - 250k CTS pots

ObsidianWire Traditional Vintage Plus for Strat pre-wired solderless kit - 250k CTS pots & 0.047uf cap

Free shipping in the USA

ObsidianWire Traditional Vintage Pro-Wired Electronics for Precision Bass are a pop in replacement for your old wiring harness. The upgrade will preserve the legacy of your original work horse, with a few tweaks in quality and design to help you roll your own thunder through those bass lines.

Best of all, these are super easy to install, and allow for unlimited solder-less pickup changes with ObsidianWire Plug, Play and Enjoy connectors.

The Heritage of the Traditional Vintage Pro-Wired Electronics for Precision Bass:

ObsidianWire Traditional Vintage Pro-Wired Electronics follow the same tried and true formula of the original P Bass® with the addition of premium selected and hand matched components for greater clarity and control over your tone.

To make your tone crystal clear at lower volumes we also include an ObsidianWire Custom Spec Treble Bleed Mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

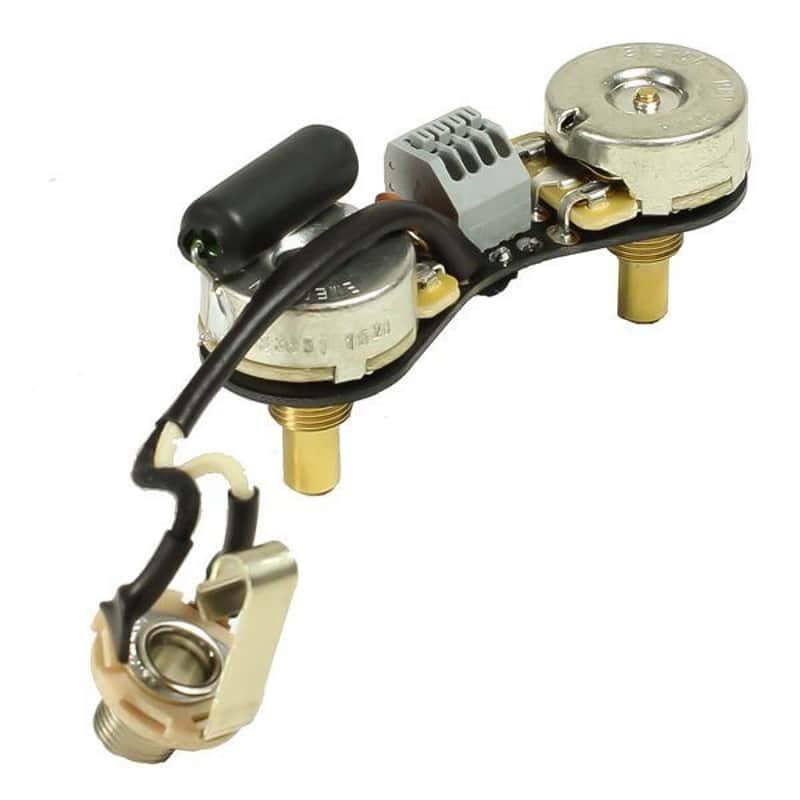

Your ObsidianWire Pro-Wired Electronics are built using the world’s best craftsmanship and components:

• 2 x ObsidianWire Custom Select Pots (Crafted by CTS) 250k or 500k (+/-6%) (Matched to +/-2%) SOLID SHAFT

• 1 x Genuine Switchcraft J11 Mono Output jack
• 1 x ObsidianWire Custom Select Capacitor (NOS K42Y-2 0.047uf) or (150 Series Polyester Film 0.022uf) (Hand Tested to +/-10%)
• 1 x ObsidianWire Premium Selected Volume Mod / Treble Bleed - Improved Volume Taper & Clarity
• 1 x Pre Printed & Easy to Follow Wiring Diagram

ObsidianWire Traditional Vintage Plus for Strat pre-wired solderless kit Compatibility:

ObsidianWire Pro-Wired Electronics for Precsion Bass, are designed to be a direct fit for American and Mexican series Fender® basses. They can also be used to upgrade Japanese Fender & Squier guitars with some adjustments. In the least, you will need a new genuine Fender USA control plate and new 1/4" knobs to fit the higher grade electronics. We cannot guarantee that these will fit any other guitar.

Note: aftermarket control plates do not have the correct Fender spec spacing and as such will not fit our electronics. We recommend a genuine Fender plate – Part Number: 099-2058-000

At ObsidianWire we use US spec 1/4" Solid shaft controls. We recommend that you check your knobs are the correct size and replace them if necessary.

Questions about ObsidianWire Kits?

Give us a call at 218-260-4176 or use the chat/contact us feature.
