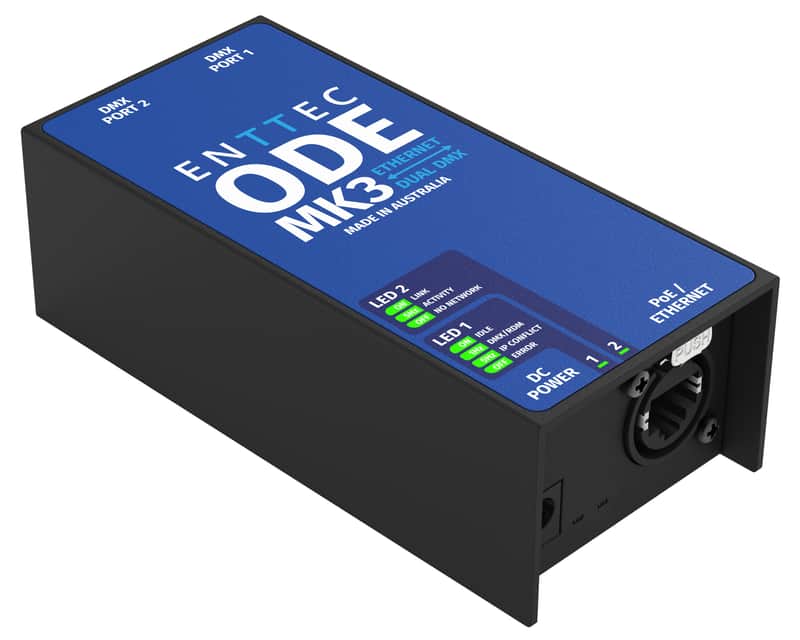

Enttec 70407 Ethernet to DMX Converter

Enttec ODE MK3 Includes:

• ODE MK3
• Ethernet Cable
• Power supply with AU/EU/UK/US adapters
• Read Me Card

Enttec ODE MK3 Features:

• Two bi-directional female 5-pin DMX ports with optional RDM (E1.20) support
• IEEE 802.3af PoE (Power over Ethernet) or DC 12-24V input
• Support for Art-Net 4, sACN and ESP to DMX conversion
• Support for DMX ->Art-Net (Broadcast or Unicast) / DMX ->sACN (Multicast or Unicast)
• Intuitive device configuration and updates through the inbuilt localhost web interface
• 10/100 Mbps network speed
• ‘Current Port Buffer’ allows live DMX values to be viewed in the web UI
• Configurable DMX output refresh rate

Enttec ODE MK3 Specifications:

• Connectors:
  • 1 EtherCon Port (RJ45)
  • 2 Bi-directional DMX (Female XLR5)
  • 1 Power Input (DC Jack)
• IP rating: IP20
• LED indicators:
  • Status indicator
  • Network Link / Activity indicators
• eDMX protocols:
  • Art-Net: Art-RDM
  • sACN: ESP
• DMX protocols:
  • USITT DMX512-A
  • ANSI E1.20 RDM
• DMX & RDM timings:
  • Break time: 300ms
  • Mark after Break (MAB): 15ms
• Max. channels: 2 Universes (1024ch)
• Max. refresh rate: 44FPS
• Art-Net merging: 2 Sources
• Configuration software: Web Browser
• Firmware updates: Web Browser
• Input voltage: 12V to 24V DC
• Max. current craw: 580mA
• Max. power draw: 7W
• Power over Ethernet (PoE): IEEE 802.3af
• Environmental operating temperature: 32°-122°F (0°-50°C)
• Environmental operating humidity: 5 - 95% (non-condensing)
• Body material: ABS Plastic
• Unit dimensions: 129 x 58 x 40 mm
• Unit weight: 0.22lbs (0.10kg)
• Shipping dimensions: 235 x 159 x 69 mm
• Shipping weight: 0.99lbs (0.45kg)
• Warranty: 3-year return to base manufacturer warranty
