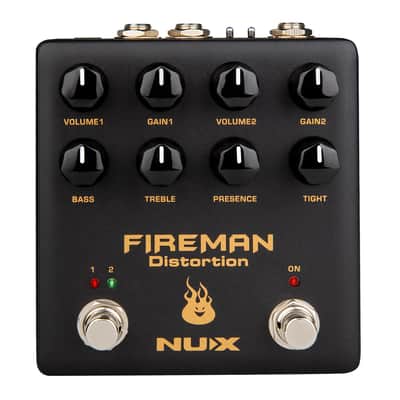

New NUX NDS-5 Fireman Distortion Guitar Effects Pedal

This item is new, in box!

Orders placed before 12:00 PM Eastern Standard Time will ship same day! Orders placed after 12:00 will often ship same day as well, if not, they will ship next day.

International orders: Please note that you will be responsible for any applicable customs fees or import taxes!

I am an Authorized Dealer, a store receipt will be included with your purchase.

Check my feedback and bid with confidence!

FIREMAN is based on the legendary amplifier builder's famous distortion pedal. It's a very amp-like distortion pedal with Modern Brown Sound. We designed it with 2 independent VOLUME, GAIN control knobs to fit rhythm and solo applications. FIREMAN offers a True-bypass / Buffer-bypass toggle switch, and a 9V / 18V toggle switch. The 18V position doubles the working voltage inside to give you wider dynamic range.

Controls

BASS: Adjusts the low-end response of distortion sound.

TREBLE: Adjusts the high-end response of distortion sound.

PRESENCE: Adjusts the ultra-high-end frequency of distortion sound.

TIGHT: Shapes the low frequency content. ( Turn it down to tighten the sound.)

VOLUME1: Adjusts the output level while in Channel1.

I/O

INPUT: Connects with your guitar or the signal from guitar side.

OUTPUT: Connects with the amplifier or to the amp side.

EXT. SW: Connects with TRS dual foot-switches to replace the 2 foot-switches function on the pedal.

BF/TB Toggle Switch: BF means Buffer-bypass, TB means True-bypass.

18V / 9V Toggle Switch: The pedal uses 9V power, you can choose 18V position to double the working voltage inside to get wider dynamic range.

DC Jack: Connects with 9V Negative Tip power with 100ma adaptor.

Highlights

Modern Brown Sound in a box.

True-bypass / Buffer-bypass toggle switch.

18V / 9V toggle switch to get different dynamic range.

2 independent GAIN, VOLUME knobs for rhythm / solo application.

GAIN1: Adjusts the distortion situation of the sound while in Channel1.

VOLUME2: Adjusts the output level while in Channel2.

GAIN2: Adjusts the distortion range of the sound while in Channel2.

1/2 Foot-switch: Chooses the current Channel for 1 or 2.

ON Foot-switch: Engages or disengages the distortion sound.

• Frequency Response: 20Hz~20kHz-±1dB
• Input Impedance: 2.2MΩ
• Output Impedance: 1MΩ
• Power Supply: 9V DC，Negative Tip（ACD-006A）
• Dimensions: 105(L)×115(W)×58(H)mm
• Weight: 460g
