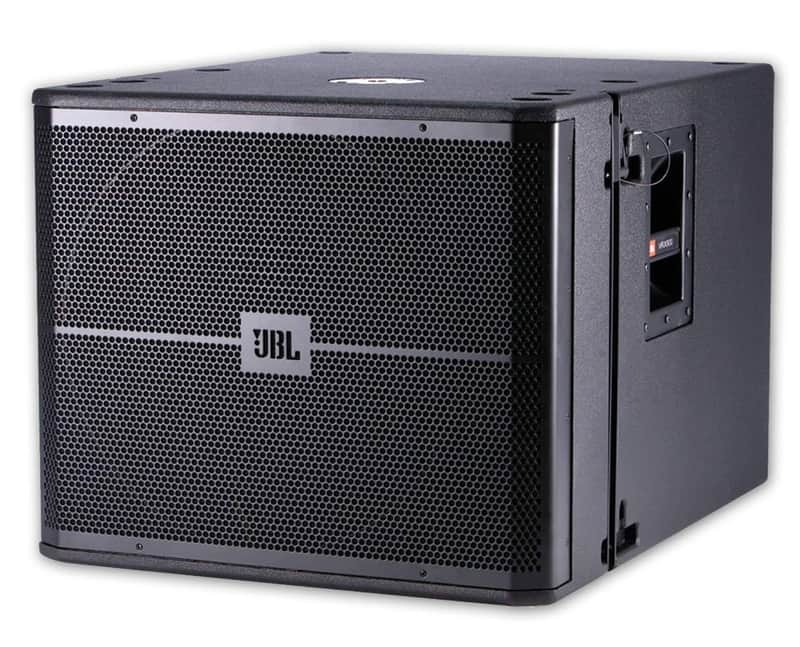

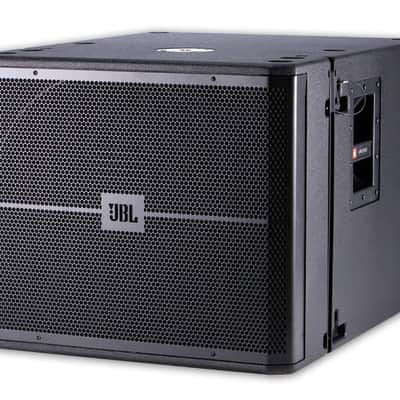

The VRX918S is a compact, high power suspendable subwoofer system containing a 2268H neodymium magnet, patented Differential Drive, 18" woofer in a front-loaded, vented enclosure.

Features

Overview

• Integral rigging hardware for simple connection of VRX932LA line-arrays and optional array frame.
• 18 inch, 2268H Differential Drive woofer for extended low-frequency output
• Large port area for reduced distortion
• 20 mm threaded pole socket for solid, secure satellite speaker mounting

Specs

• Power Rating : 800 W / 1600 W / 3200 W
• Frequency Range : 31 Hz – 220 Hz
• Frequency Response : 34 Hz – 220 Hz
• Recommended Crossover Frequencies : 80 Hz, 24 dB / octave HPF, 80 Hz, 24 dB / octave LPF
• System Maximum SPL : 130 dB SPL peak
• System Sensitivity : 95 dB SPL
• LF Driver : 1 x JBL 2268H 457 mm (18 in) Differential Drive woofer
• Nominal Impedance : 8 ohms
• Active Tunings : Tunings available at
• Enclosure : Rectangular, 18 mm, 13-ply birch plywood
• Suspension / Mounting : Optional VRX932LA-AF line array frame kit or 10mm eyebolt
• Finish : Black DuraFlex™ finish
• Grille : Powder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing.
• Input Connectors : Neutrik Speakon NL-4 (x2)
• Net Weight : 37 kg (81 lb)
