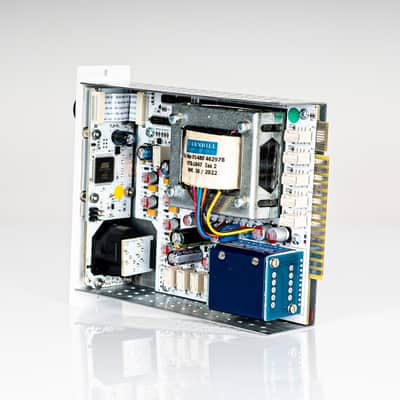

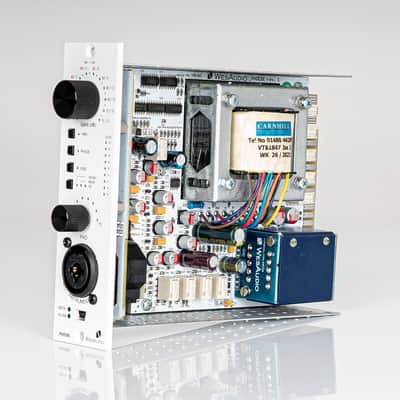

A 1073 style 500 series preamp, digitally controlled by your DAW!

Class A microphone preamplifier with digital recall. Features +28dbu headroom and dual Carnhill amp topology. Front panel TRS/XLR socket which supports HiZ instruments. Total recall and plugin control compatible with all DAWs.

Features

• 100% analog microphone/line preamp with +28dBu of headroom.
• Class A fully analog - inspired by famous 1073 design based on
• dual amp topology.
• Microphone gain up to 75dB.
• Carnhill Transformers (input and output).
• Output signal metering on the front panel with clip detection.
• Phantom power and phase invert control.
• Switchable impedance input (1200/300Ohm).
• All controls/analog settings are fully manageable via the
• WesAudio GCon DAW plug-in.
• IRON PAD - passive output attenuation circuit with 1 dB step
• (after the output transformer).
• Front panel XLR/TRS socket which supports - HiZ instrument input
• (TRS), line input (XLR), microphone input (XLR).
• Recallable signal source to be either back XLR Socket, or front panel
• XLR/TRS socket.
• 500 series and ng500 (e.g. _TITAN) series compatible.
• Total Recall and plugin control compatible with most DAWs.
• Analog automation in DAW

Specifications

• Line input impedance: 5.5k ohm bridging.
• Noise: unity gain (better than -100dbU) Max gain +75dB
• (better than -70dbU).
• EIN: better than -120dB.
• Freq response: +/- 0.5dB 20Hz-20kHz; -3dB at 50kHz.
• Distortion: 0.005% at 1kHz at +20dBu output.
• Max power consumption: 170mA(+16V); 100mA(-16V)
