HK Audio Sonar 115 Xi | 15" 2-way 1200W Portable PA System
Brand New with Full Manufacturer's Warranty!

ACTIVE SPEAKER FOR ENTERTAINERS, DJS, BANDS, CLUBS, FITNESS AND PARTIES
Groundbreaking technology, state-of-the-art development tools and advanced production methods – combine all of these factors with decades of audio expertise, and very special things can happen. That’s exactly what happened with our new SONAR speaker family – it is the first of its kind to deliver high-quality sound and a whole catalogue of professional features at an affordable price point.

Multifunctional speaker with extremely powerful bass and superb features

The SONAR 115 Xi is an powered, state-of-the-art loudspeaker that provides top sound, whether as a full-range speaker, as a stage monitor or as a satellite in combination with a subwoofer. The 15″ woofer and meticulous HK AUDIO acoustic engineering deliver a powerful bass experience, even if you don’t want to use a separate subwoofer.

SONAR 115 Xi offers three input channels: two for microphone or line signals plus one AUX channel, which receives analogue signals as well as via Bluetooth 5.0. Music can be streamed in stereo to two SONAR Xi speakers via Bluetooth TWS (True Wireless Stereo). The volume and 3-band EQ for each channel can be adjusted intuitively using the rotary control and colour display. Thanks to the free SONAR app (for iOS and Android), all functions can also be controlled remotely for added convenience.

Intuitive control via colour display
The built-in digital mixer on the Xi models offers two channels for microphone or line signals as well as an AUX channel for analogue and Bluetooth 5.0 signals. It can even receive both signals at the same time! The Mix Out is used to forward signals to additional speakers, or can be used as a source for live recording.

Each of the three channels has its own dedicated volume controller as well as a lavishly equipped 3-band EQ. What’s more, three sound modes are available (Live, DJ, Monitor) as well as a preset for using in combination with the SONAR subwoofer.

The mixer is equipped with a master control to adjust the overall volume and operate the DSP menu.

Bluetooth TWS
With Bluetooth TWS (True Wireless Stereo), stereo audio streaming via two SONAR Xi models is a breeze. Two linked SONAR Xi speakers can even be controlled remotely at the same time via the Remote app.

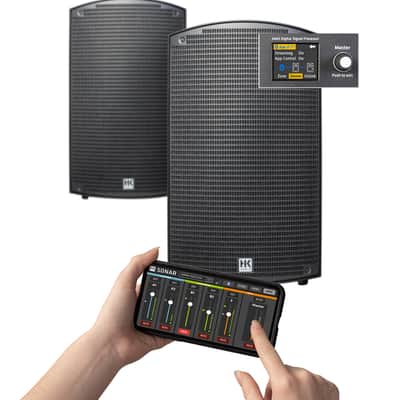

SONAR REMOTE App
The SONAR REMOTE app for iOS and Android tablets and smartphones is so much more than just a remote control for the built-in digital mixer. It lets you control all settings and functions of the SONAR Xi models, including the parameters of the 3-band EQ for each channel. You can also save scenes to make regularly used presets available on demand, such as adjustments to frequently used microphones, modified SONAR Xi setups or basic configurations for different locations.

All settings that are changed in the app are simultaneously shown in the SONAR Xi speaker display, and vice versa! Both displays sync up in real time.

CARDIOID PRINCIPLE
The cardioid principle is all about cancelling out frequencies radiated to the rear. While medium and high frequencies can be radiated in directional patterns, low frequencies are spherical. This often leads to an unpleasant excess of low bass on and behind the stage. Organisers are also increasingly setting precise demands for sound distribution, for example in marquees and urban stages.

The SONAR 115 SUB D meets all the requirements, both mechanically and acoustically, to implement effective cardioid setups quickly and easily, reducing the low bass radiated to the rear by up to 30 dB! This not only makes performing on stage much more relaxed, it also results in a better sound, as microphones no longer pick up unwanted low frequencies.

A second SONAR 115 Sub D can be used to increase the sound pressure level in the bass range. The classic full-stack setup (shown on the left) with two subs projecting forward boosts the sound pressure by level 3 dB in all directions. But what makes the SONAR 115 Sub D so special are its cardioid capabilities. It has two special presets that allow you to configure a cardioid setup (shown on the right), where the lower sub projects to the rear, without the need for any complex calculations or time correction.

To do this, simply direct the lower SONAR sub to the rear and select the Cardioid Rear preset, and direct the upper sub to the front, selecting the Cardioid Front preset. Now both subs can play perfectly together without having to make any further adjustments.

Specs
Max. SPL Peak @ 10 % THD
130 dB half space
Frequency response -10 dB
50 Hz – 20 kHz
Amplifier output (Peak Power)
1200 W
Low/mid speaker
1 x 15", 2.5" voice coil
HF driver
1", 1.35" voice coil
Horn characteristics
90° x 60° CD horn
Display
Colour display
Audio inputs
2x XLR/jack combo balanced, 1 x Aux In 3.5mm mini jack
Audio outputs
1x XLR Mix Out balanced
Sound modes
Live/DJ/Monitor
Setup modes
External sub
Bluetooth
5.0 TWS (audio streaming + remote control)
Delay
0-10 meter
Pole mount
TiltUnit 0°/7.5°
Rigging points
3x M10
Carrying handles
2x SingleGrip
Housing
Moulded plastic
Finish
black
Front grille
metal grille backed with black acoustic foam
Dimensions (WxHxD)
42.5 x 72.9 x 41.5 cm
Weight
19.5 kg / 43,0 lbs
