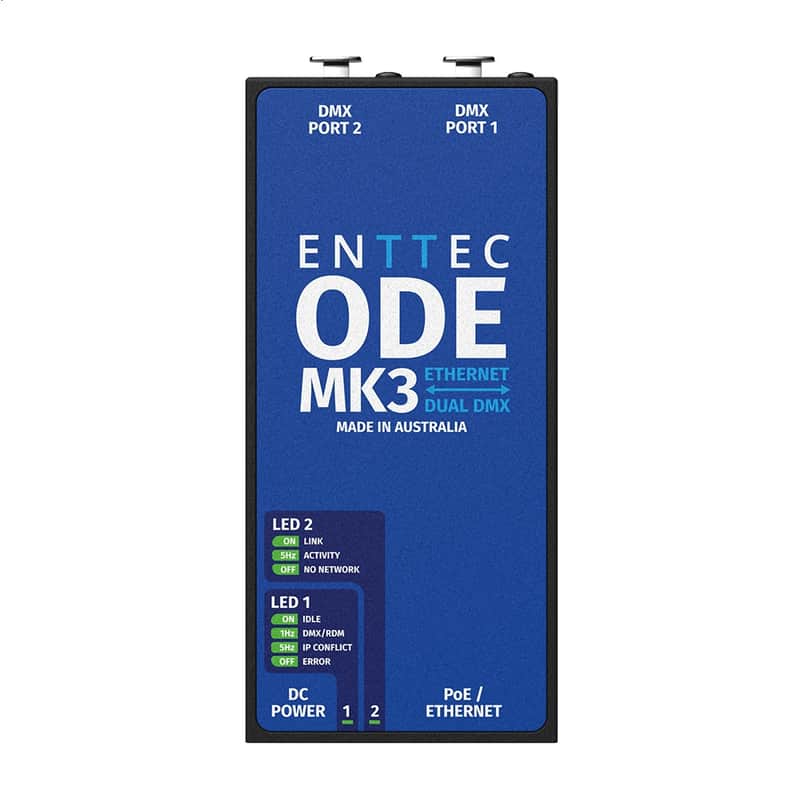

ENTTEC ODE Mk3 PoE 2 Universe Ethernet to DMX Interface

 ODE Mk3 PoE  ENTTEC

 2 Universe Ethernet to DMX Interface

The ODE Mk3 PoE is a solid-state dual universe RDM compatible Power Over Ethernet DMX interface featuring PoE (802.3af). It is designed for the highest level of portability, simplicity, and practicality. A perfect solution for converting from a multitude of Ethernet-based lighting protocols to physical DMX and vice versa without the need for adaptors.

The ODE Mk3 PoE features the same modern and intuitive web-based configuration found in our premium products including, diagnostics, either LTP or HTP Merging (with up to 2 sources), and RDM support. All in the form factor of a portable dual universe node. What’s more, the ODE Mk3 PoE has LED indicators that can be used to visually check the status of your ODE MK3 PoE without the need to access the web interface. Use the ODE Mk3 PoE in conjunction with a wireless router to give a buffered DMX output from any sACN / ArtNet compatible iOS or Android application.

Enjoy trusted industry-standard performance at a budget-friendly price point. In addition, the ODE Mk3 PoE can be run with a power adaptor which is included. DIN-rail form factor to ensure the best flexibility. And for even greater flexibility, truss mount your ODE using the ODE Truss mount kit.

Includes:

• ODE MK3 PoE or PSU

• Straight connect Ethernet lead

• Power adapter included if you don't have POE

• User manual

Features:

• 2 Universe Ethernet to DMX node (Output mode)

• Easy to setup & update through any web browser

Multi-Protocol Support

• ArtNet

• Streaming CAN (sACN)

• ESP

• Supports RDM over Art-Net (controller)

• Supports Art-Net 3

• HTP/LTP Merging support: up-to 2 DMX sources can be merged (if enabled).

• 1 RJ45 connector (10/100 Mbps)

• Static or Dynamic (DHCP) IP configuration (DHCP by default)

• Supports Art-Net Broadcast or Unicast (Input mode)

• 5-Pin Female DMX XLR connectors

Specifications:

• Open DMX Ethernet Mk3 RDM compliant DMX over Ethernet Gateway

• PoE (802.3af) Support

• DC PSU Included in the Packaging: Yes

• Output Type: DMX or Network

• Max Output Channels: 2 Universe (1024ch)

• Max refresh rate: 44fps

• Max. Merging Sources: 2 from separate IP addresses

• Supported Protocols: ArtNet / sACN / DMX512A / RDM

• RJ45 EtherCon Connection

• 2x Female XLR5 pin connectors

• DC Jack

• Op Environment: 0°-50°C in non-condensing environment

• Approvals: CE, FCC certified

• Max. Current Draw: 0.580 amps

• Power Input: 12 to 24vDC

• Power Consumption: 7w

• Material: Injection molded ABS plastic

• Size: 5.1" W x 1.58" H x 2.34" D (129 x 40 x 59mm)

• Weight: 0.48 kgs/0.68 lbs

SALE: $379.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
