REMOTE 4  RED PANDA

 Real Time 4 Mode FX Pedal Controller

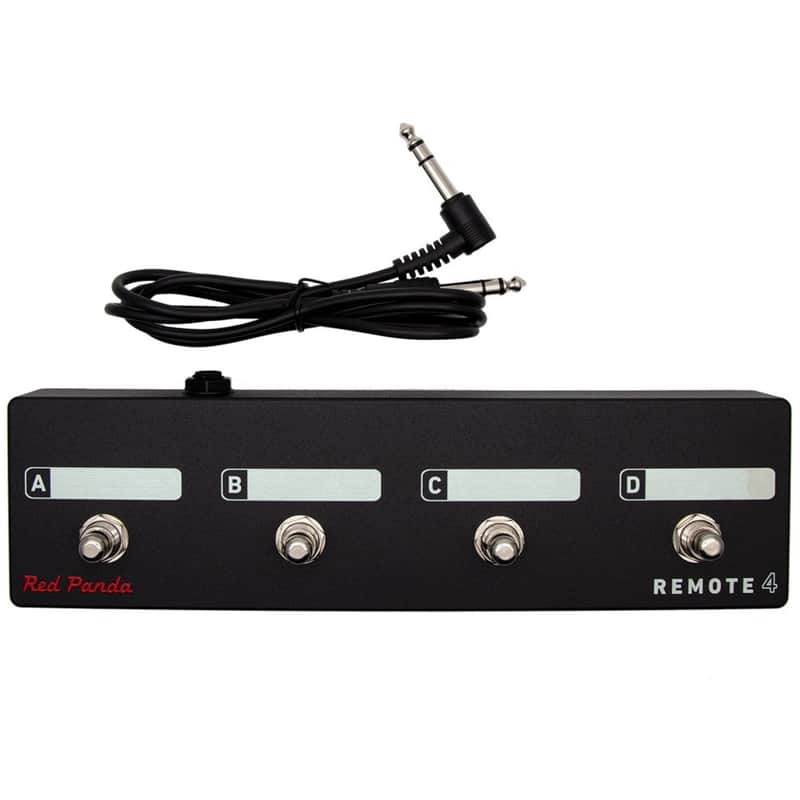

Remote switch with 4 modes to access presets and pedal functions. Scribble strips above each switch can be labeled with a Sharpie and erased using isopropyl alcohol. Connects to our pedals via a 1/4" TRS cable (included) and the Remote 4 does not require power. Dimensions: 10" x 2.75" x 2.25".

Bitmap 2 Remote switch modes

Mode

Switch

Function

1

A

Preset 1 (hold to save)

B

Preset 2 (hold to save)

C

Preset 3 (hold to save)

D

Preset 4 (hold to save)

2

A

Next preset

B

Bypass / on

C

LFO hold

D

Tap

Context 2 Remote switch modes

Mode

Switch

Function

1

A

Preset 1 (hold to save)

B

Preset 2 (hold to save)

C

Preset 3 (hold to save)

D

Preset 4 (hold to save)

2

A

Preset footswitch

B

Right footswitch

C

Reverb hold (latching)

D

Tap tempo

3

A

Dry kill (momentary)

B

Delay kill (momentary)

C

Reverb sustain (momentary)

D

Reverb damping (momentary)

Particle 2 Remote switch modes

Mode

Switch

Function

1

A

Preset 1 (hold to save)

B

Preset 2 (hold to save)

C

Preset 3 (hold to save)

D

Preset 4 (hold to save)

2

A

Left footswitch

B

Right footswitch

C

Preset down

D

Preset up

Raster 2 Remote switch modes

Mode

Switch

Function

1

A

Preset 1 (hold to save)

B

Preset 2 (hold to save)

C

Preset 3 (hold to save)

D

Preset 4 (hold to save)

2

A

Left footswitch

B

Right footswitch

C

Preset down

D

Preset up

Tensor Remote switch modes

Mode

Switch

Function

1

A

Preset 1 (hold to save)

B

Preset 2 (hold to save)

C

Preset 3 (hold to save)

D

Preset 4 (hold to save)

2

A

Left footswitch

B

Right footswitch

C

Preset 1 (hold to save)

D

Preset 2 (hold to save)

3

A

Record / Overdub

B

Play / Stop

C

Play Once

D

Toggle TIME & PITCH (tap) Toggle SPEED (double tap)

4

A

Toggle SPEED knob

B

Toggle TIME knob

C

Toggle PITCH knob

D

Toggle RAND knob

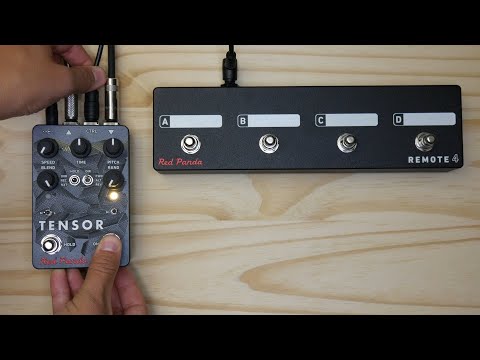

Tensor Loop Sampler (Remote Mode 3)

Mode 3 is designed to use the Tensor as a loop sampler with live loop manipulation. Switches A-C control loop record, overdub, play, and retrigger functions. Switch 4 toggles between the current knob settings and the default (normal playback settings). For example, you can set SPEED to reverse and PITCH to -1 octave for instant access to reverse and half-speed effects.  See the user's manual for complete details.

Configuring the Remote Switch (all Red Panda Pedals):

• Start with the pedal powered on and nothing plugged into the CTRL port.

• Hold the right footswitch while plugging in the remote switch. The right LED will blink yellow 3 times to indicate it is in CTRL configuration mode. You can release the right footswitch and begin configuration immediately.

• Press one of the buttons on the remote switch to select a mode.

• Hold the right footswitch for 2 seconds to save the configuration. The right LED will blink green to indicate that the configuration has been saved.

SALE: $119.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
