Erica Synths Black 3109 VCF/VCA [Three Wave Music]

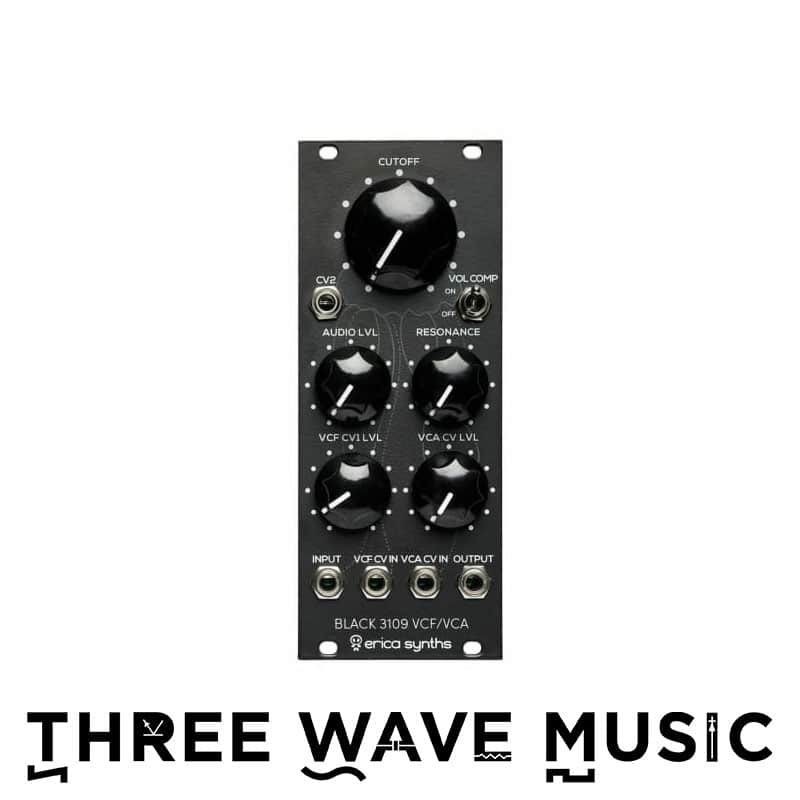

The Erica Synths Black 3109 VCF/VCA is a lowpass filter and voltage-controlled amplifier combo built around the AS3109 VCF integrated circuit, a contemporary version of the IR3109 chip, found on vintage Roland synths such as the Jupiter series, Juno series and the SH-101. Features

• 24dB/oct lowpass VCF
• Volume drop compensation
• Built-in VCA
• Cutofflevel attenuverter
• 1V/oct tracking

The 3109 VCF/VCA is our attempt to recreate the iconic sound of these synths, but we also aim to improve upon it. Filters based on IR3109 had several drawbacks, including a volume drop when the resonance is increased so we added a volume drop compensation as well as a built-in VCA for more versatility in compact setups. Additionally, 1V/oct tuning is implemented so you can use this module for perfect VCF keyboard tracking and also as a VCO.

Audio level 10Vptp Cutoff CV level (full span) -5V - +5V VCA CV level 0 - +10V Max power consumption 25mA@+12V, 25mA@-12V Module width 10HP Module depth 35mm
