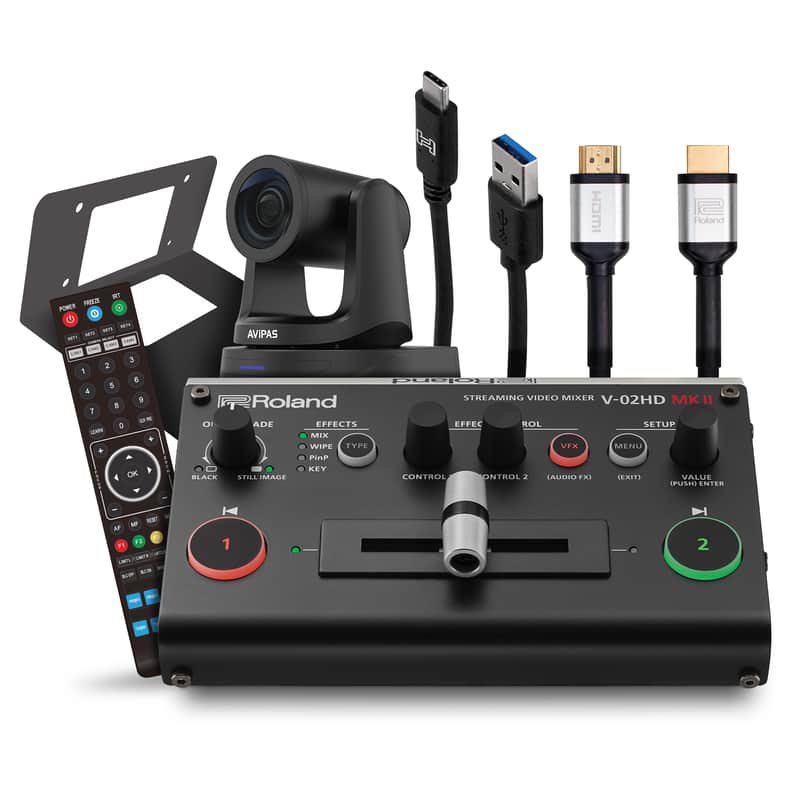

Roland PTZ-1G-V02 PTZ Single Camera Bundle with V-02HD MK II & Camera, Grey

Manufacturer's Description

Create a fully produced and streaming experience by capturing full HD video, graphics, and music, and broadcast to viewers anywhere on the internet. And with the fast-growing use of robotic PTZ (pan-tilt-zoom) cameras, you don’t need to be a high-end broadcast studio to bring this powerful and convenient technology into your video production and live streaming setups.

Features

• Compact, affordable, and simple to use, this expandable bundle allows you to connect and switch up to two high-quality HDMI cameras and computers and send them directly to your favorite streaming platform all over USB-C
• The V-02HD MK II streaming video mixer is simple to use, with its large controls, T-bar fader, and FREE iOS Production App
• Provides an all-in-one solution that eliminates the added expense of a dedicated PTZ controller
• PTZ cameras offer studio-grade picture quality and can be installed in discrete locations thanks to their small size and remote-control operation.

Specifications

V-02HD MK II

Video Processing

• 4:4:4 (Y/Pb/Pr), 10-bit

Input Connectors

• Input 1--2: HDMI type A x 2

Output Connectors

• Program Out: HDMI type A
• PREVIEW OUT: HDMI type A
• USB Stream:USB Type-C

Input Formats

• 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p
• 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p
• 1080/23.98p, 1080/24p
• VGA (640 x 480/60Hz), SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz)
• WXGA (1280 x 800/60Hz), SXGA (1280 x 1024/60Hz)
• FWXGA (1366 x 768/60Hz), SXGA+ (1400 x 1050/60Hz)
• UXGA (1600 x 1200/60Hz), WUXGA (1920 x 1200/60Hz)

Output Formats

• Program Out, PREVIEW OUT:
• 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/29.97p
• 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p
• SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
• WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
• SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
• UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
• HD (1280 x 720/60 Hz), FHD (1920 x 1080/60 Hz)

Output Formats

USB Stream:

• 1080/60p, 720/60p, 640 x 480/60p
• 1080/59.94p, 720/59.94p, 640 x 480/59.94p
• 1080/29.97p, 720/29.97p, 640 x 480/29.97p
• 1080/50p, 720/50p, 640 x 480/50p
• 1080/25p, 720/25p, 640 x 480/25p

Audio Processing

• Sampling rate: 24 bits/48 kHz

Audio formats

• Linear PCM, 24 bits/48 kHz, 2ch

Input Level

• Audio In: -10 dBu (Maximum: +10 dBu)

Input Impedance

• Audio In: 10 k ohms

Output Level

• Phones: 92 mW + 92 mW (32 ohms)

Output Impedance

• Phones: 10 ohms

Audio Effects

• Delay, Reverb, High pass filter, Noise gate, De-esser, Compressor, Equalizer, Voice changer
  Multi-band compressor, Limiter, Test tone output

Other Connectors

• USB Stream: USB Type-C (TM) (for backup from PC, for remote control from PC and iPad)
• CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)

Other Functions

• Preset Memory (8 types)
• Panel lock function
• EDID Emulator
• Auto Switching
• Auto Input Detect

Power Supply

• AC Adapter

Current Draw

• 1.4 A

Power Consumption

• 12.6 W

Operation Temperature

• +32 to +104 Degrees F (+0 to +40 Degrees C)

Dimensions (W x D x H)

• 6.31 x 4.25 x 2.06" (160 x 108 x 51mm)

Weight

• 22 oz (623.6g)



AV-2020 PTZ Camera

Video Format

• HDMI:
• 1920x1080P60/59.94/50/30/29.97/25/24
• 1920x1080I60/59.94/50
• 1280x720P60/59.94/50/30/29.97/25


• SDI:
• 1920x1080P60/59.94/50/30/29.97/25/24
• 1920x1080I60/59.94/50
• 1280x720P60/59.94/50/30/29.97/25


• USB:
• 1920x1080P30; 1280x720P30; 1024x576P30; 960x540P30; 720x576P30; 640x480P30; 640x360P30;
• 352x288P30; 320x240P30

Video Format

• RJ45:
• 1920x1080@1-30 / 1280x720@1-30 / 1024x576 @1-30 (Main stream)
• 1280x720@1-30 / 1024x576@1-30 / 640x360 @1-30 (Sub stream)

Video Interface

• HDMI, 3G-SDI, RJ45, USB2.0

Sensor

• 1/2.8" 2.1MP CMOS sensor

Zoom

• f4.9-98mm, F1.5-3.0
• View angle: 60 Degree (Far)-3.23 Degree (Near)

Rotation Angle

• Pan: -170 Degree - +170 Degree
• Tilt: -90 Degree - +90 Degree

Rotation Speed

• Pan: 0 Degree -120 Degree /s
• Tilt: 0 Degree -80 Degree /s

Preset

• Remote controller: 10; RS232: 128
• Accuracy: 0.1 Degree

Control Port

• RS232, RJ45 (VISCA over IP, ONVIF), USB2.0(UVC1.1)

Network Speed

• 100M

Video encode

• H.264/H.265 (default: H.264)

Bit Rate Control

• Variable Bit Rate, Constant Bit Rate

Video Bit Rate

• 0Kbps-15360Kbps

IP Protocol

• TCP/IP, HTTP, RTSP, RTMP, DHCP, Onvif

PoE+

• Support

Daisy Chain

• RS232 serial daisy chain (up to 7 units under VISCA protocol)

Minimum Lux

• 0.1 Lux ( F1.5)

White Balance

• Auto/Indoor/Outdoor/Manual/AWT/PUSH

Exposure

• Auto/Manual/Bright/Shutter/Iris

Focus

• Auto/Manual

Iris

• Auto/Manual

Electric Shutter

• Auto/Manual

Gamma

• Support

WDR

• Support

BLC

• Support

2D/3D Noise Reduction

• Support

Anti-Flicker

• OFF/50Hz/60Hz

H/V Flip

• Support

Input Voltage

• DC12V/ PoE+

Power Consumption

• 11W

Dimensions

• 6.6 x 6.6 x 7.1" (67.5 x 168 x 180.5mm)

Weight

• 3.1 lbs (1.4kg)



AV-W20 Wall Mount Bracket

• Dimension: 8.3 x 6.5 x 3.2" (21 x 16.5 x 8.1cm)
• Net weight: 1.5lb
• Shipping weight: 2.0lb
