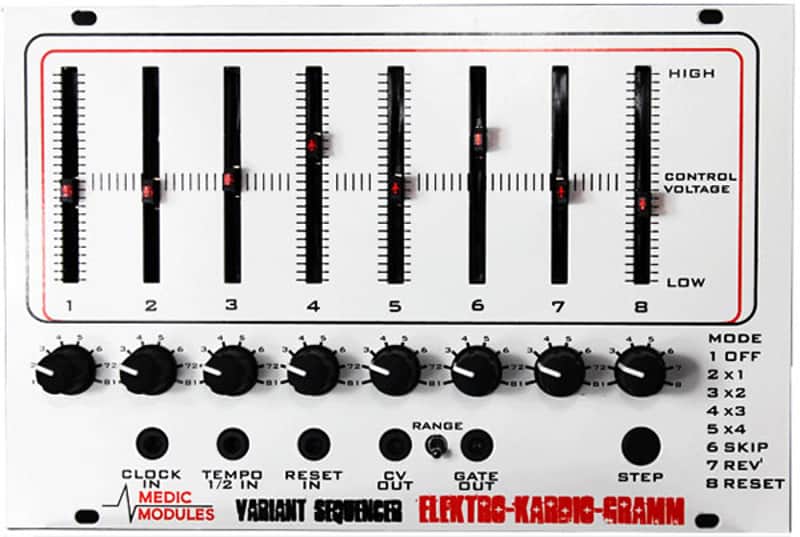

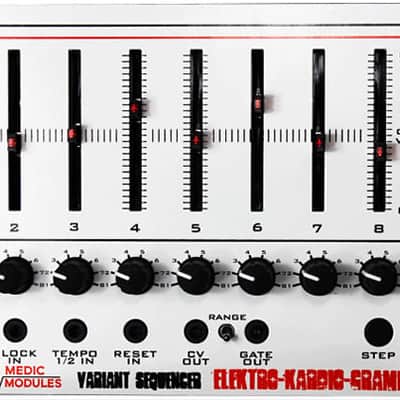

Analogue Solutions Medic Modules EKG

Analogue Solutions Medic Modules EKG (Elektro Kardio Gramm) is a versatile 8-step analog sequencer for eurorack modular synthesizers. Each step has a unique Function Control and can be turned off, skipped, repeated or set as a reset point.

• Features
• Versatile 8-step analog sequencer
• Each step has a unique Function Control
• Each step can be turned off, skipped, repeated or set as a reset point
• LED sliders
• Sliders have dust covers
• Forensic UV ink
• High quality solid construction
• Super durable front panel print with wipe clean 'medical' surface
• Function Control details
• Mode 1: This is essentially a rest. No gate sent out. OFF.
• Mode 2: The step is played once, with one gate being x1 sent out
• Mode 3: The step is played twice, with two gates being x2 sent out
• Mode 4: The step is played thrice, with three gates being x3 sent out
• Mode 5: The step is played four times, with four gates x4 being sent out
• Mode 6: The step is entirely missed and the sequencer SKIP instead jumps to the next step
• Mode 7: The sequencer plays backwards all the REV(erse) way to step one
• Mode 8: Sequencer resets to step one. This step is RESET not 'played.' Use this to change sequence length.

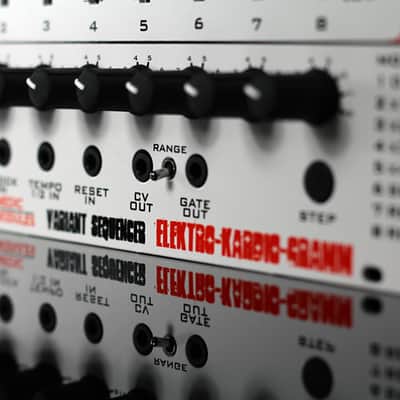

• Patch points
• CLOCK IN input: This is the clock input. Use a 5V clock signal or a signal from an LFO.
• TEMPO 1/2 IN input: When this socket receives 5V, the sequencer will run at half speed.
• RESET IN input: When this socket receives a 5V signal, the sequencer will reset to Step 1.
• CV OUT output: Connect the CV out to your modular synth's VCO to control pitch, to cutoff on your filter, etc.
• GATE OUT output: Connect this to the EG trigger input on your synth. Output is 5V.
• Physical specifications
• Size: 38hp
• Module depth: 25mm
• Power usage: 15mA @ +12V, 28mA @ -12V.
