uBraids (microBraids) digital sound source Eurorack module

Note: we have done another short run of 3 uBraids modules. One has a plain panel as pictured, and two have the Magpie Celtic Knots panels.

Braids is a voltage-controlled monophonic digital sound source. It is designed by Olivier Gillet, Mutable instruments under a cc-by-sa 3.0 license. It is a macro-oscillator with multiple intricate digital synthesis algorithms. Each algorithm is controlled by two continuously variable parameters, Timbre and Color, both of them voltage controllable. It is available as a 16HP Eurorack module from Mutable Instruments:

mutable-instruments.net/modules/braids/specifications

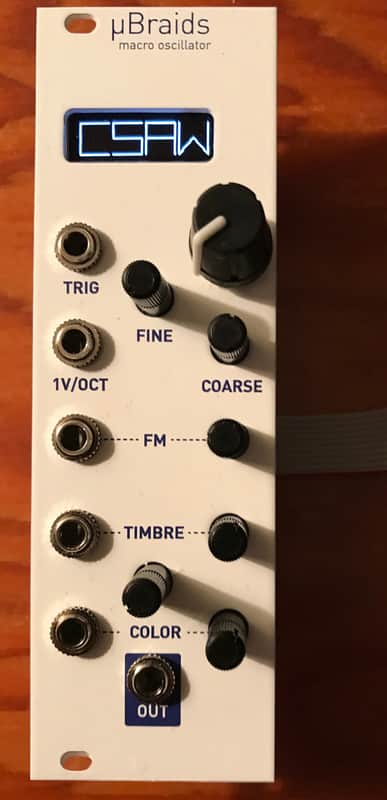

uBraids (microBraids) is a full functionality adaptation of Braids to 8HP, which is exactly half the size and features an OLED display. Nothing has been altered component-wise from v5 of Braids. Some ICs were shrunk down to TSSOP packages in order to create space. Any future firmware upgrade on Braids or alternate firmware such as Bees in the Trees should load and work fine with uBraids.

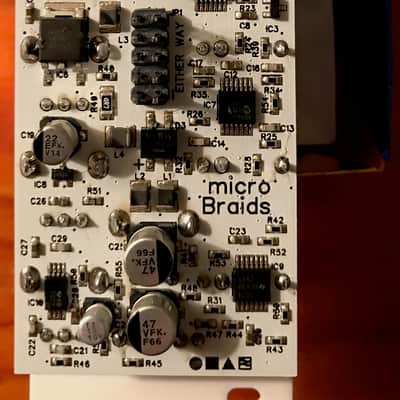

This uBraids module was built from panels and rev2 PCBs from Magpie Modular:

magpie-modular.myshopify.com/products/magpie-modular-8hp-braids-panels-pcbs
magpie-modular.myshopify.com/products/microbraids-pcb

All SMD soldering was done using a reflow oven.

It was built by Dan Gilbert (tindie.com/stores/loglow/)
and Michael Gilbert (mwgilbert.com)

Please contact us for custom work as well.
