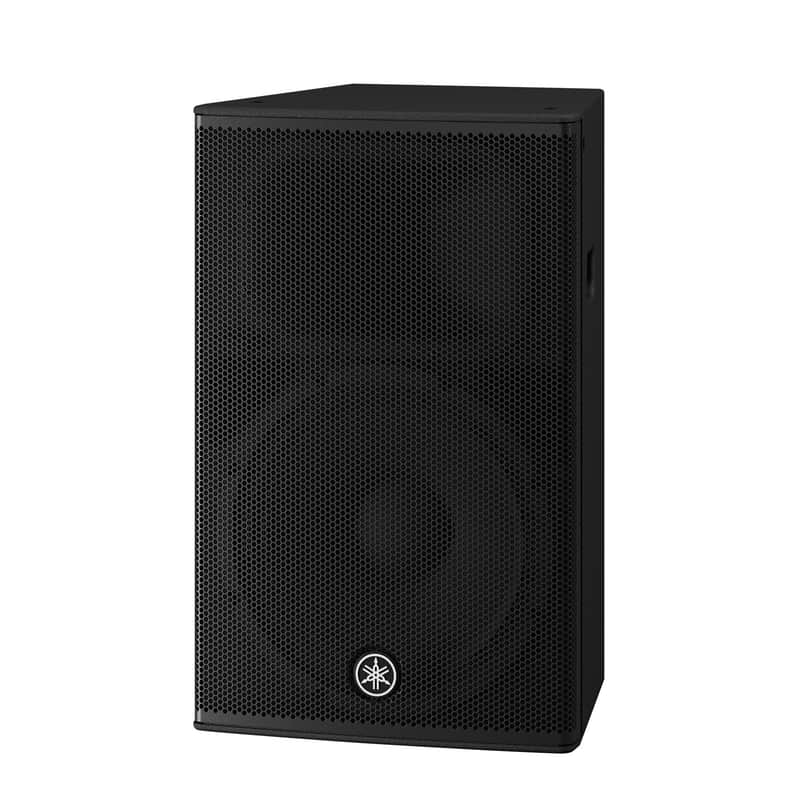

The DHR series delivers Legendary Yamaha audio performance and professional-grade features in a highly affordable loudspeaker. The 15-inch 2-way 1000W powered DHR15 ia ideal for use as a main program speaker. Dual-angle pole sockets offer either a 0° or -7° down tilt depending on coverage needs. And the DHR15 also includes rigging points for eyebolts to fly the speaker if desired.

The cabinet's bass-reflex design produces tight powerful bass that belies its compact stature and is perfectly complemented by a custom-selected 1.75" high-frequency driver for impressive full-range coverage. And there's no external amp required because the DHR10 has an integrated 1000W Class-D amplifier to deliver all the power needed to make it sing.

With plywood construction similar to the high-end CZR series, the DHR15 produces powerful, clear audio with minimal vibrations. What comes out is what you put in. Plus, the rugged polyurea finish will keep your cabinet looking good night after night.

Yamaha DHR15 Applications:

• Live sound reinforcement
• DJs

Yamaha DHR15 Features:

• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
• Compact size despite the 15-inch LF driver that provides excellent low frequency response
• Dual-angle pole sockets offer both 0° or a -7° down tilt
• Rigging points for use with eye bolts
• Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Yamaha DHR15 Specifications:

• Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
• Frequency range (-10dB): 44 Hz - 20 kHz
• Coverage area: H90ﾟ x V60ﾟ
• Crossover: 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
• Maximum Output Level (Measured peak, IEC noise@1m): 131 dB SPL
• Components
  • LF: Diameter: Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite
  • HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
• Amplifier class: Class-D
• Power rating
  • Dynamic: 1,000 W (LF: 800 W, HF: 200 W) *1
  • Continuous: 465 W (LF: 400 W, HF: 65 W)
• Cooling: Fan cooling, 4 speeds
• Power consumption: 74 W (1/8power), 18 W (Idle)
• Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
• A/D D/A Converters: 24 bit 48 kHz Sampling
• Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF
• I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Cabinet material: Plywood
• Finish: Durable Polyurea Painting, Black
• Handle: Side x2
• Pole socket: Φ35 mm x1 (Bottom)
• Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
• Floor Monitor Angle: N/A
• Dimensions
  • W: 432 mm (17.0")
  • H: 692 mm (27.2") (with rubber feet)
  • D: 405 mm (15.9")
• Net weight: 24.0 kg (52.9 lbs)
