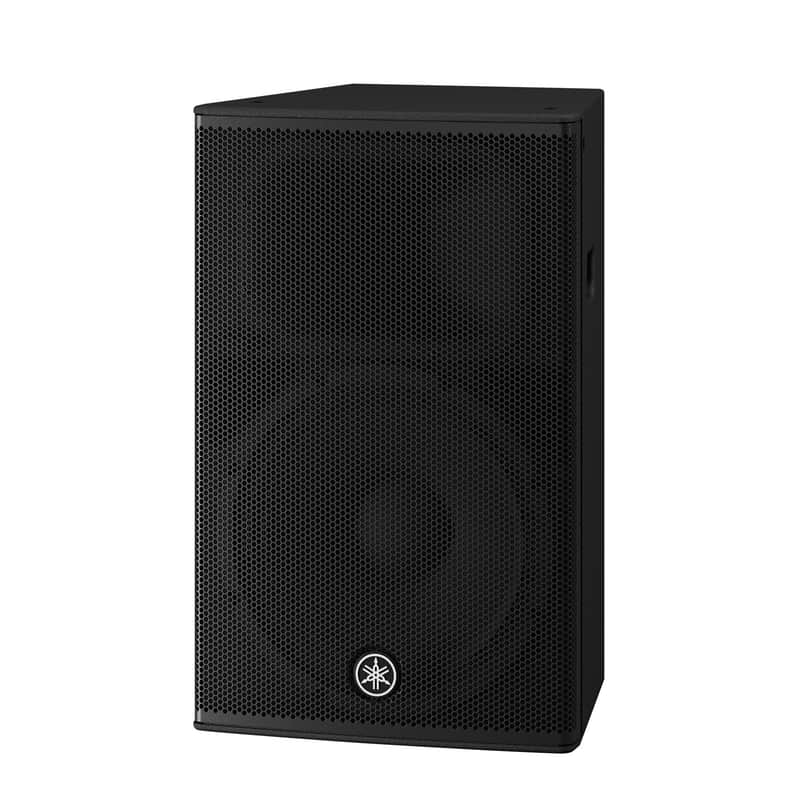

The CHR series delivers Legendary Yamaha audio performance and professional-grade features in a highly affordable loudspeaker. The 15-inch 2-way 1000W CHR15 ia ideal for use as a main program speaker. Dual-angle pole sockets offer either a 0° or -7° down tilt depending on coverage needs. And the CHR15 also includes rigging points for eyebolts to fly the speaker if desired.

With plywood construction similar to the high-end CZR series, the CHR15 produces powerful, clear audio with minimal vibrations. What comes out is what you put in. Plus, the rugged polyurea finish will keep your cabinet looking good night after night.

The cabinet's bass-reflex design and 15" woofer produce a tight, powerful bass that belie its compact stature and is perfectly complemented by a custom-selected 1.75" high-frequency driver for impressive full-range coverage.

Yamaha CHR15 Applications:
  • Live sound reinforcement
  • DJs
Yamaha CHR15 Features:
  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
  • Compact size despite the 15-inch LF driver that provides excellent low frequency response
  • Dual-angle pole sockets offer both 0° or a -7° down tilt
  • Rigging points for use with eye bolts
  • Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance
Yamaha CHR15 Specifications:
  • Speaker type: 2-way Speaker, Bass-reflex
  • Frequency range (-10dB): 49 Hz - 20 kHz
  • Coverage area: H90゚ x V60゚
  • Crossover: 2.0 kHz
  • Nominal impedance: 8Ω
  • SPL
    • Sensitivity (1W; 1m on axis): 95 dB SPL
    • Peak (Calculated): 125 dB SPL
  • Components
    • LF: Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite
    • HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
  • Power rating
    • NOISE: 250W
    • PGM: 500W
    • PEAK: 1000W
  • I/O connectors: SpeakON NL4MP x 2 (Parallel)
  • Cabinet material: Plywood
  • Finish: Durable Polyurea Painting, Black
  • Handle: Side x2
  • Pole socket: Φ35 mm x1 (Bottom, 0° or -7°)
  • Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
  • Floor Monitor Angle: N/A
  • Dimensions
    • W: 432 mm (17.0")
    • H: 692 mm (27.2") (with rubber feet)
    • D: 405 mm (15.9")
  • Net weight: 22.0 kg (48.5 lbs)
