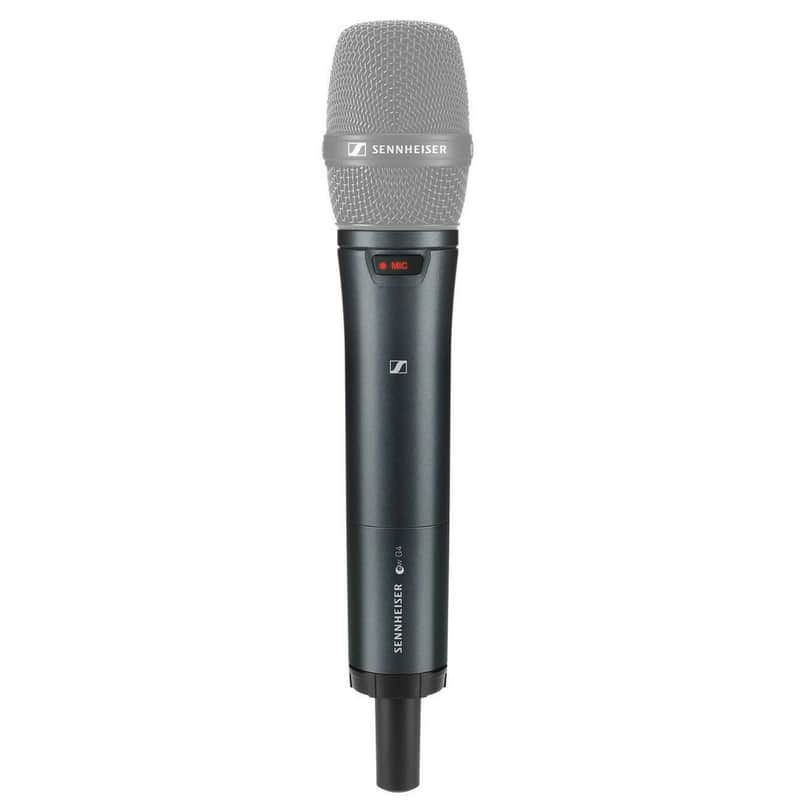

Powerful handheld transmitter with a lightweight aluminum housing and integrated mute switch for evolution wireless G4 100 Series systems.

Frequencies:
A1, 470 - 516 MHz
A, 516 - 558 MHz
G, 566 - 608 MHz

Key Features

• Your choice of Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Fast frequency allocation for up to 12 receivers via new linking functionality

• Up to 20 compatible channels

• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

• Transmission Range: up to 100 meters / 300 feet

• High RF output power (up to 30 mW) depending on country regulations

Technical Specifications

Dimensions Approx.
50 x 265 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
<= 0.9 %
Weight (incl. batteries) approx.
450 g
Signal-to-noise ratio
>= 110 dBA
RF output power Max.
30 mW
Switching bandwidth
up to 42 MHz
Peak deviation
+/-48 kHz
Nominal deviation
+/-24 kHz
Operating time
Typically 8 h
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mA
with transmitter switched off: <= 25 A
Input impedance
40 k OHM
Max. Input voltage
3 Veff
Powering
3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response
80 - 18,000 Hz
Temperature Range
-10 C to +55 C
Frequency stability
<= +/-15 ppm
What's in the box?
SKM 100 G4-S handheld transmitter
MZQ 1 microphone clamp
2 AA batteries
quick guide
safety guide
manufacturer declaration sheet
