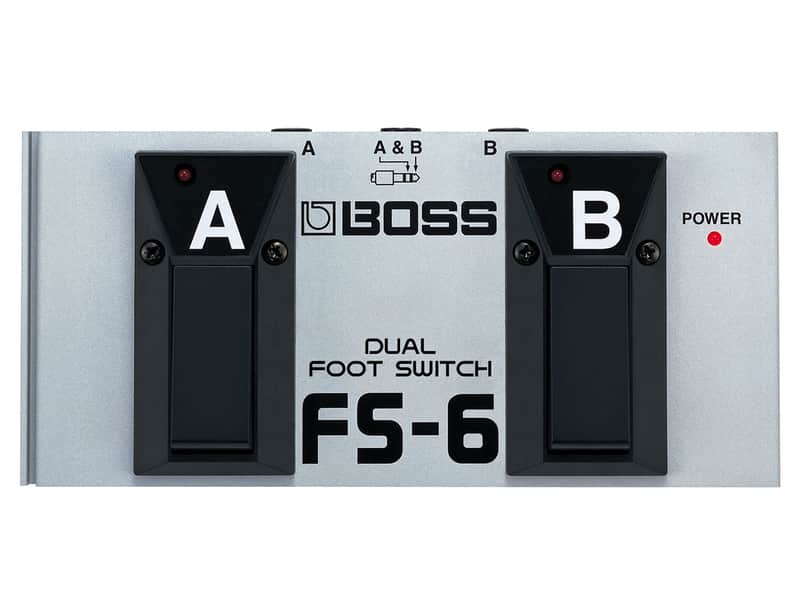

Double Your Switching Power

Two switches in one, BOSS’s FS-6 combines latch- and momentary-type switching into one unit. With two switches conveniently housed side-by-side, the FS-6 allows each switch to be set for latch or momentary operation. Pick the configuration that best suits your playing style and setup.

Features

• Each footswitch can be assigned latch- or momentary-type
• Stereo input jack for single stereo cable connection
• Can be connected to other footswitches (FS-5L/FS-5U/FS-6/AB-2) for extension
• Connect to a wide variety of instruments, rhythm machines, guitar amps, and electronic devices that have control input jacks compatible with FS-5L/FS-5U
• Controls : Pedal Switch A, B / POLARITY Switch A, B / Mode Switch A, B
• Connectors : Jack A, Jack B (1/4 inch phone type)
• Jack A & B (TRS 1/4 inch phone type)
• Power Supply : DC 9 V: Dry battery/9 V 6F22 (carbon), 6LR61 (alkaline)Current Draw8 mA (max.)
• Accessories : Dry battery/9 V (6F22)

Size

• Width : 188 mm7-7/16 inches
• Depth : 91 mm3-5/8 inches
• Height : 43 mm1-3/4 inches
