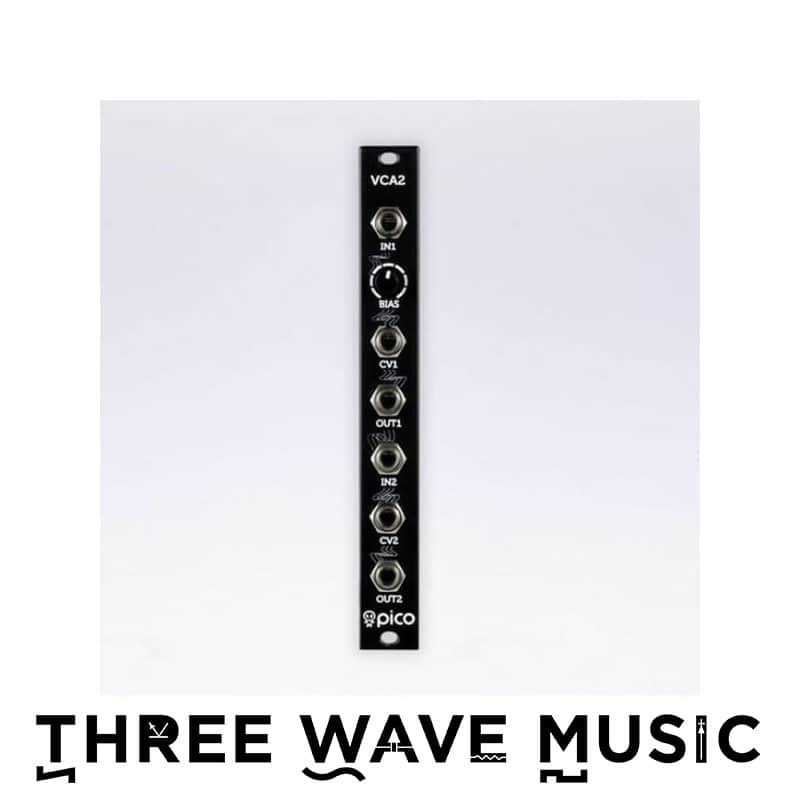

The Erica Synths Pico VCA2 is compact voltage controlled amplifier module, based on reliable AS3330 chip. It features two independent channels, and the first one comes with the manual offset adjustment, useful for full span vibrato effects. Audio and CV inputs of the first VCA are normalled to the second one, so the module can also be used as a buffered audio splitter. VCAs are DC coupled, and they can be used for controlling amplitude of control voltage signals. Features

• Two independent VCAs with a linear response
• Manual bias adjustment on the top VCA
• Input normalling
• DC coupling
• Input protection against overvoltage
• Protection against reverse PSU connection

Technical specifications:

Nominal audio signal level 0Vptp CV level (full span) -5V - +10V Max attenuation -110dB Power consumption +20mA, -19mA Module width 3HP Module depth 35mm
