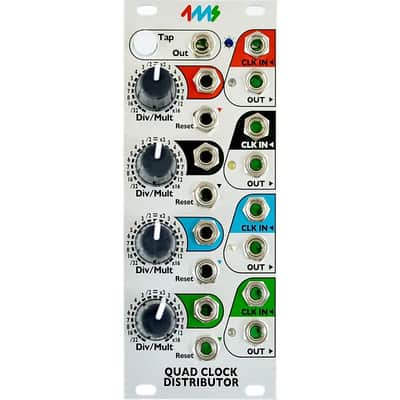

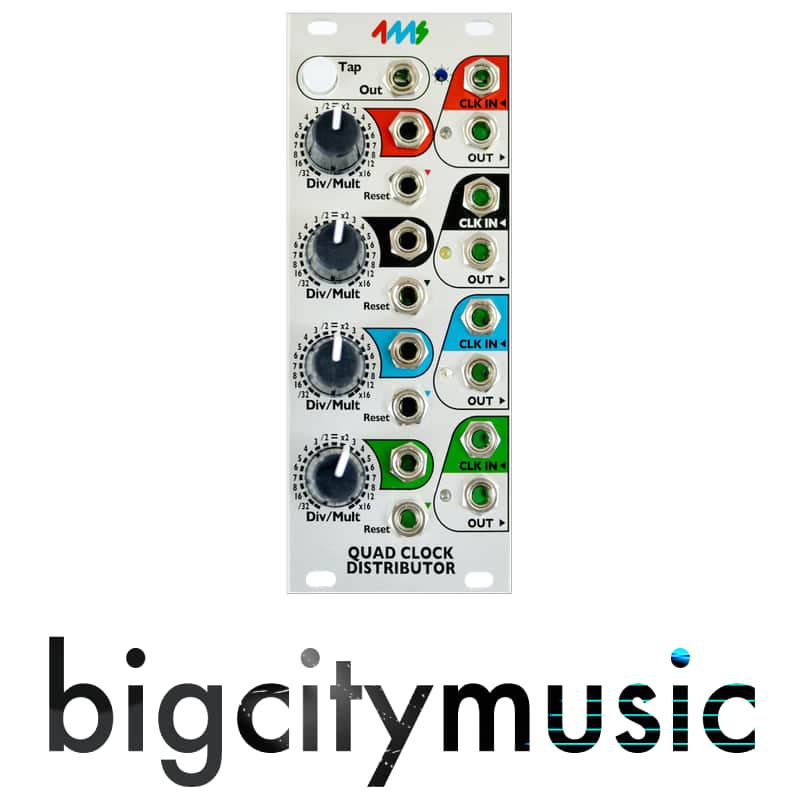

4ms Quad Clock Distributor QCD

Four CV-controlled Clock Divider/Multipliers
Tap tempo button and five sync'ed clock outputs make the QCD perfect for head-of-the-chain "Master" clock module
Tap clock output runs at the tapped tempo (even if other channels are being clocked externally)
Create complex rhythmic patterns by patching multiple channels into each other's Div/Mult CV and Reset
Each of the four channels has an independent clock IN, OUT, Reset and Div/Mult CV
Divide or Multiply incoming clock from /32 to x16 on each channel:
-Detented knob to snap to integer division/multiples
-CV jack to modulate Div/Mult amount
Reset jack (per channel) restarts the clock when a trigger is received (alters phase of clock)
Clock input jacks are normalized downwards: Tap->Red->Black->Blue->Green
Clock outputs stop automatically when incoming clock stops
LEDs blink to output clocks' tempos
5V clock output pulses, fully buffered. Default is square-wave, and PW is controllable with expander
Daisy chain multiple QCDs or other clock modules using Tap Out jack
Header on the PCB to connect to Quad Pingable LFO (QPLFO) to provide four CV Skew-able, CV Div/Mult-able envelopes
Interfaces with QCD Expander for more features (Pulse Width, Inverted Gate, attenuverters for CV inputs)

Condition	Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand	4MS
Model	Quad Clock Distributor
Categories	Eurorack Synth Modules
Made In	United States
Horizontal Pitch	10HP
Synth Module Function	CV Modulation Clock
Modular Synth Format	Eurorack
