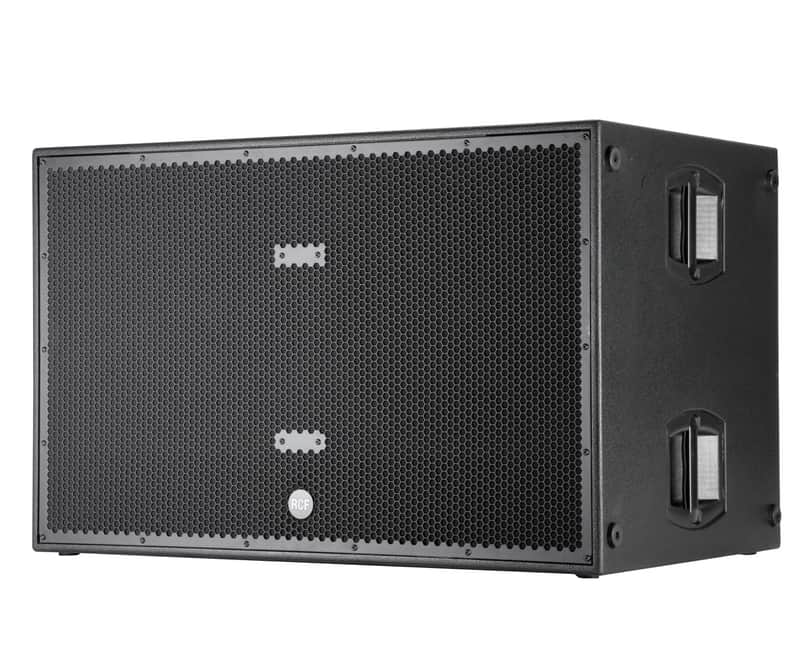

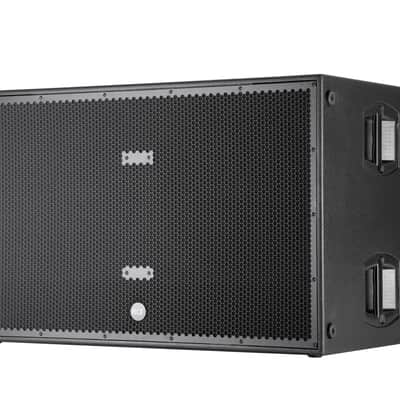

The SUB 8006-AS is the largest and most powerful active sub woofer in the professional series.

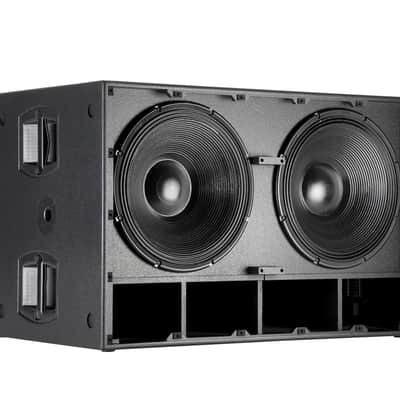

Featuring two 18” transducers, with 4” inside/outside voice coils, this cabinet is designed to delivery a serious amount of low  frequency.
Powered by a 2500W digital amplifier module, the SUB 8006-AS can perform in the most demanding situations.

Features

• 5000 Watt Peak power - 2500 Watt RMS
• 141 dB max SPL
• 30 Hz - 120 Hz frequency response
• 2 x 18" Woofer
• DSP controlled Input section with selectable presets
• Delay control
• Integrated mechanics for multiple configuration with HDL 20-A
• Baltic birch tour grade cabinet

Acoustical Specifications

• Frequency Response -3 dB : 30 Hz ÷ 120 Hz
• Max SPL : 141 dB
• Woofer : 2 x 18", 4.0" v.c.

Input/Output Section

• Input signal : bal/unbal
• Input connectors : XLR
• Output connectors : XLR
• Input sensitivity : -2 dBu / +4 dBu

Processor Section

• Crossover frequencies : Selectable 80 Hz - 100 Hz Hz
• Protections : Thermal, RMS
• Limiter : Fast limiter
• Controls : Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid

Amplifier Specifications

• Total power : 5000 W PEAK
•  Low frequencies : 5000 W PEAK
• Total power : 2500 W RMS
•  Low frequencies : 2500 W RMS
• Cooling : Convection
• Connections : Powercon in/out

Cabinet

• Cabinet Material : Baltic Birch
• Hardware : Mounting points
• Handles : 4 side
• Colour : Black

Physical Specifications

• Height : 709 / 27.91 mm/inch
• Width : 1109 / 43.66 mm/inch
• Depth : 700 / 27.5 mm/inch
