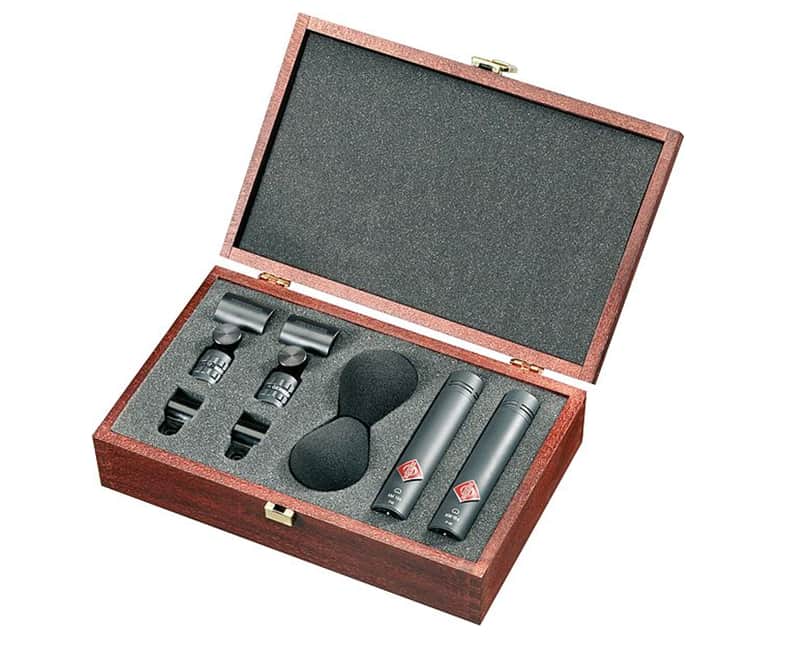

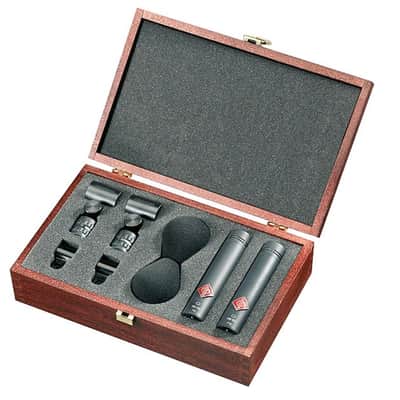

The SKM184MT Stereo Matched Microphone Pair is a kit containing a stereo matched pair of the KM 184 MT microphones. The microphones feature cardioid, pressure condenser elements intended for live sound reinforcement and broadcast as well as recording applications. The KM 180 series microphones feature an output stage based on the KM 100. Transformerless circuitry and balanced output result in high output gain with a very low noise floor and no coloration to the output signal. The KM 184 MT is powered via +48 Volt phantom power.

The stereo pair are matched in sensitivity and frequency response and provide optimum results when capturing performances or ambiance. The 20Hz to 20kHz frequency response provides flexibility for use in a wide range of recording situations. The KM 184 MT's cardioid polar pattern provides a generous pick up area and is suitable for ambiance or spot miking instruments such as piano, wind instruments organ and choir. The KM 184 MT handles sound pressure levels up to 140dB allowing close miking of instruments high in transient (peak) level response.

Features

• Pressure gradient transducer
• Cardiod pattern
• 20Hz to 20kHz frequency range
•12mV/Pa (-36.2dBu = +38.4 dBv) sensitivity
• 50 ohms rated impedance
• Equivalent loudness level due to inherent noise: 16dB (DIN/IEC 651 dB-A), 25dB (CCIR 468-3 weighted)
• S/N ratio re:1Pa @ 1kHz, (CCIR 468-3 weighted) 69 dB (S/N = 94dB - equiv. noise) A-weighted: 78dB
• Max SPL for less than 0.5% THD: 138dB
• Total dynamic range of the microphone amplifier (Max SPL-self noise): 122dB
• Requires 48V phantom powering ±4 V
• Current consumption: 2mA
• Weight: 80g
• Dimensions: Length 107mm, Diameter 22mm
