The U-PHORIA UMC404HD from Behringer is a powerful 4 input, 4 output USB 2.0 recording interface featuring genuine MIDAS-designed mic preamps with exceptional 24-Bit/192 kHz high-resolution converters, designed to help your recordings and mixes sound their absolute best. Powered from the USB bus, the cross platform interface includes zero-latency direct monitoring for recording, LED indicators for status, signal and clipping, and a dedicated headphone output with volume control and a monitor A/B source select for DJ-style cueing.

The U-PHORIA UMC404HD bridges the gap between your creativity and your fans. This blazingly fast USB 2.0 studio in a box will have you recording your next masterpiece in minutes with all the connectivity required for your microphones, guitars, keyboards and even MIDI devices. Record the perfect vocal right to your computer-based DAW thanks to the 4 astonishingly pure, world-class Midas-designed mic preamps, which include +48 Volt phantom power for condenser microphones, all going through studio-grade 24-Bit/192 kHz converters for the best possible sound quality. Whether you're a singer-songwriter, producer on the go, or just need a rock-solid interface for running backing tracks at a gig, the ultra-dependable U-PHORIA UMC404HD will help you shine in the digital domain.

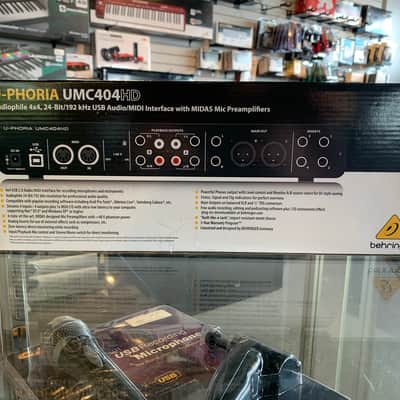

On the rear panel of the UMC404HD, you'll find the USB 2.0 port for simple and easy connection to your computer, along with plenty of analog playback options including 1/4" TRS, RCA and XLR. The UMC404HD also features 4 analog Inserts for use with external effects such as compressors, gates and EQs, etc. Built-in MIDI I/O allows you to connect keyboards and all your favorite outboard MIDI hardware.

Features:

• 4x4 USB 2.0 Audio/MIDI Interface for recording microphones and instruments
• Audiophile 24-Bit/192 kHz resolution for professional audio quality
• Compatible with popular recording software including Avid Pro Tools*, Ableton Live*, Steinberg Cubase*, etc.
• Streams 4 inputs / 4 outputs plus 1x MIDI I/O with ultra-low latency to your computer, supporting Mac OS X and Windows XP or higher
• 4 state-of-the-art, MIDAS designed Mic Preamplifiers with +48 V phantom power
• Analog Inserts for use of external effects such as compressors, etc.
• Zero-latency direct monitoring while recording
• Input/Playback Mix control and Stereo/Mono switch for direct monitoring
• Powerful Phones output with Level control and Monitor A/B source select for DJ-style cueing
• Status, Signal and Clip indications for perfect overview
• Main Outputs on balanced XLR and 1/4" TRS connectors
• Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins downloadable at behringer.com
• "Built-like-a-tank", impact-resistant metal chassis

Specs:

Input
• Preamp: 4 x MIDAS design
• Type: 4 x XLR/TRS combo connector (Mic/Line/Instrument)
• Input level attenuation: 4 x Pad switch
• Frequency response: 10 Hz - 50 kHz (0 / -3 dB)
• Impedance: Mic in: 3kΩ / Instrument in: 1 MΩ
• Max Input level: Mic: -4 dBu/Line: +20 dBu/Instrument: -3 dBU
• Phantom power: +48V, switchable

Output
• Type:
- 1 x 1/4" stereo )Phones)
- 2 x 1/4" TRS (Main Line Out)
- 2 x XLR (Main Line Out)
- 4 x 1/4" TRS (Playback Line Out)
- 4 x RCA (Playback Line Out)
• Frequency response: 10 Hz - 43 kHz (0 / + 0.3 dB)
• Max. ouput level: +3 dBu

MIDI I/O
• Type: 5-pin DIN; 1 in, 1 out

Digital Processing
• Supported sample rates: 44.1/48/88.2/96/176.4/192 kHz

Computer Bus Connectivity
• Type: USB 2.0, type B

Operating Systems
Mac OS x*, Windows XP• or higher*
Drivers
Mac*: No driver required/CoreAudio supported
Windows*: Available as download from behringer.com

Power
• Power Consumption: Max 2.5 W
• Power supply: USB connector (bus-powered form computer) and adapter
• Mains voltage: 100-250V~, 50/60 Hz
