The smallest member of the Hot Spot family of personal monitors.

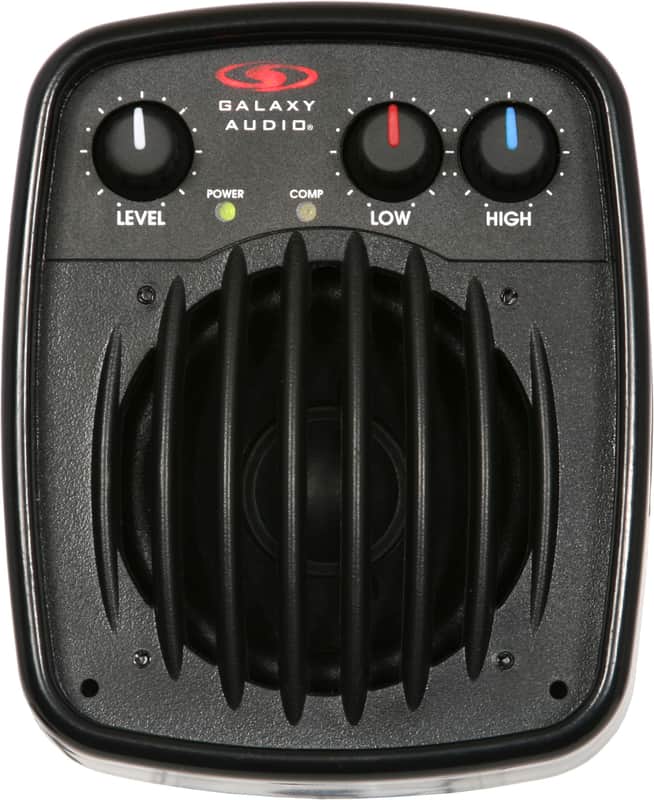

The Nano Spot from Galaxy Audio is the most compact member of the Hot Spot family of personal monitor speakers. Featuring a 3" driver, the Nano Spot has three rear-panel inputs: XLR, 1/4", and 1/8" stereo summing. With 24V phantom power, a 20dB pad, and built-in compressor, you can go directly into the Nano Spot from your source or microphone. The NSPA is ideal for call centers, computer monitoring, restaurant patios, and many other applications.

Features

• 25W
• 3" ceramic driver
• 1/4", XLR, and 1/8" inputs
• 24V phantom power
• Stand/wall mount included

Specifications

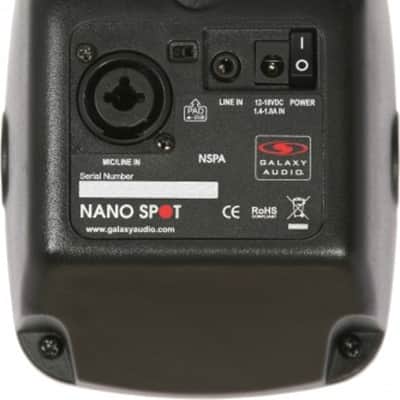

• 3 Inputs:
• • 1x XLR Balanced
  • 1x 1/4" Unbalanced
  • 1x 1/8" Stereo Summing
• Phantom Power: 24Vdc
• Controls: Equilizer, One Volume Pot
• Nominal impedance: 4Ω
• Power Supply: 18Vdc, 1.75A
• Built in Amplifier: 25 watts @ 4Ω
• Speaker: 87.5 dB @ 1 watt/1 meter
• Frequency response: 150 Hz – 17 kHz
• Maximum SPL: 101.5 dB
• Enclosure Materials: High Density ABS
• Indicator LED's: Power, Compressor and Signal
• Input Impedance:
• • XLR Input: 4.4kΩ, Differential Balanced
  • 1/4" Input: 10kΩ Unbalanced
  • 1/8" Input: 22kΩ Balanced (11kΩ Unbalanced)
• PAD Switch: 20 dB
• Built in Compressor
• Included: Power supply, Stand/Wall Mount
• Color: Black

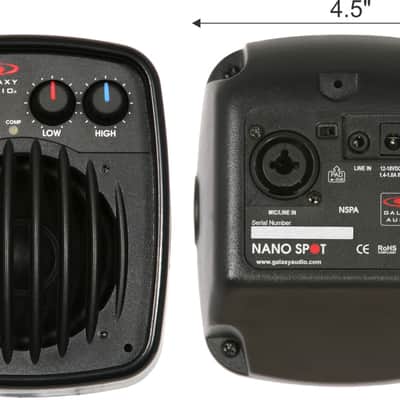

• Dimensions: 5" x 4.25" x 4.5" (127 x 108 x 114 mm)
• Net weight: 1.75 lb. (0.793 kg)

Note:

This speaker isNOTweather-proof and shouldNOTbe installed in an outdoor setting. For more information on this and other products, contact your Sales Representative.
