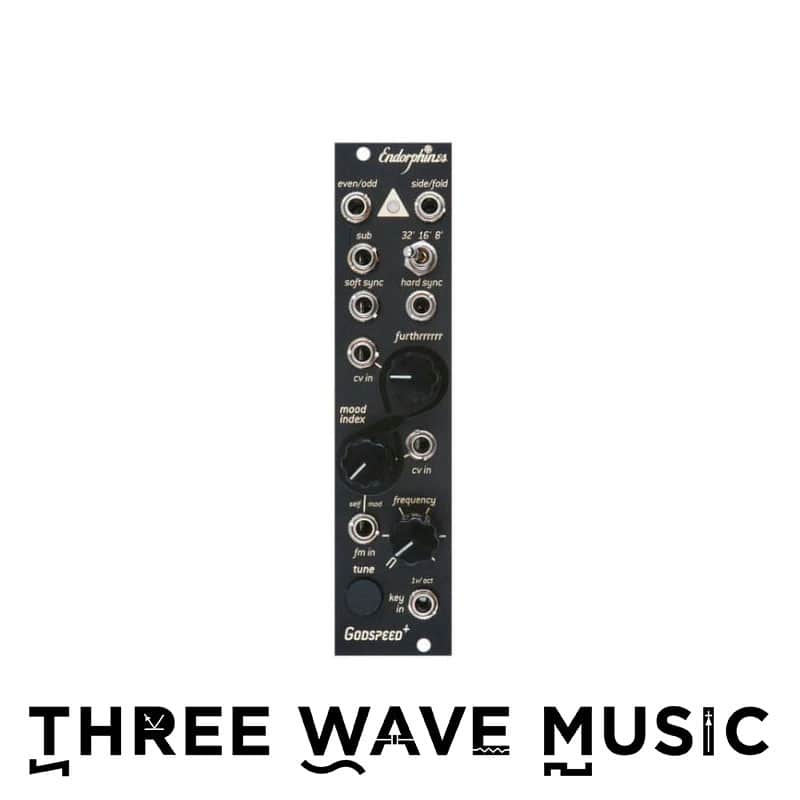

THRU-ZERO MULTI-OUTPUT VCO WITH WAVESHAPER AND AUTOTUNER

• fast and effective 6HP oscillator with autotuning and octave shift

• Included Strong Zero VCO core delivers powerful thru-zero linear FM

• Modulation index with pre-patched self-modulation to create FM synthesis blocks on the fly

• Sine/fold output features famous Furthrrrr Generator folder

• Odd/even output has a pre-patched discrete sub-oscillator for even deeper bass action

• Built in variable gain noise generator on odd/even output (adjusted by holding TUNE button and turning FURTHRRRR knob)

• Hard and Soft sync inputs for additional harmonic shaping.


  Power consumption:

• 100 mA +12V

• 45 mA -12V

• 0 mA 5V

  Dimensions:

• 6 HP

• 38 mm deep

FAQ:

I have noise in the even/odd output. There is buit-in white noise generator mixed to that output. Press and hold ‘tune’ button and then turn the ‘Furthrrrr’ knob fully CCW to decrease amount of noise.

Rainbow cable pinout. Side red/brown pair of pins always correspond to -12V similar as with typical gray ribbon cable.
